Tehnilised andmed
https://global.shuttle.com/products/productsDetail?pn=XH510G2
| FORM FACTOR | Shuttle 5L Form factor |
|---|---|
| PROCESSOR | Support Intel 10th/11th LGA1200 , Core i3/i5/i7/i9, Pentium, Celeron ,65W processor |
| CHIPSET | Intel H510 Express chipset |
| MEMORY | 2 x DDR4 SO-DIMM slots,32GB per DIMM (Max 64GB) DDR4 2666/2933/3200 MHz |
| VIDEO OUTPUT | (1)HDMI + (1)DP , support dual display |
| AUDIO | Realtek ALC662 High Definition Audio |
| ETHERNET | Intel i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (1) Raiser card slot (1) 4 Pin Fan connector (1) SATA connector |

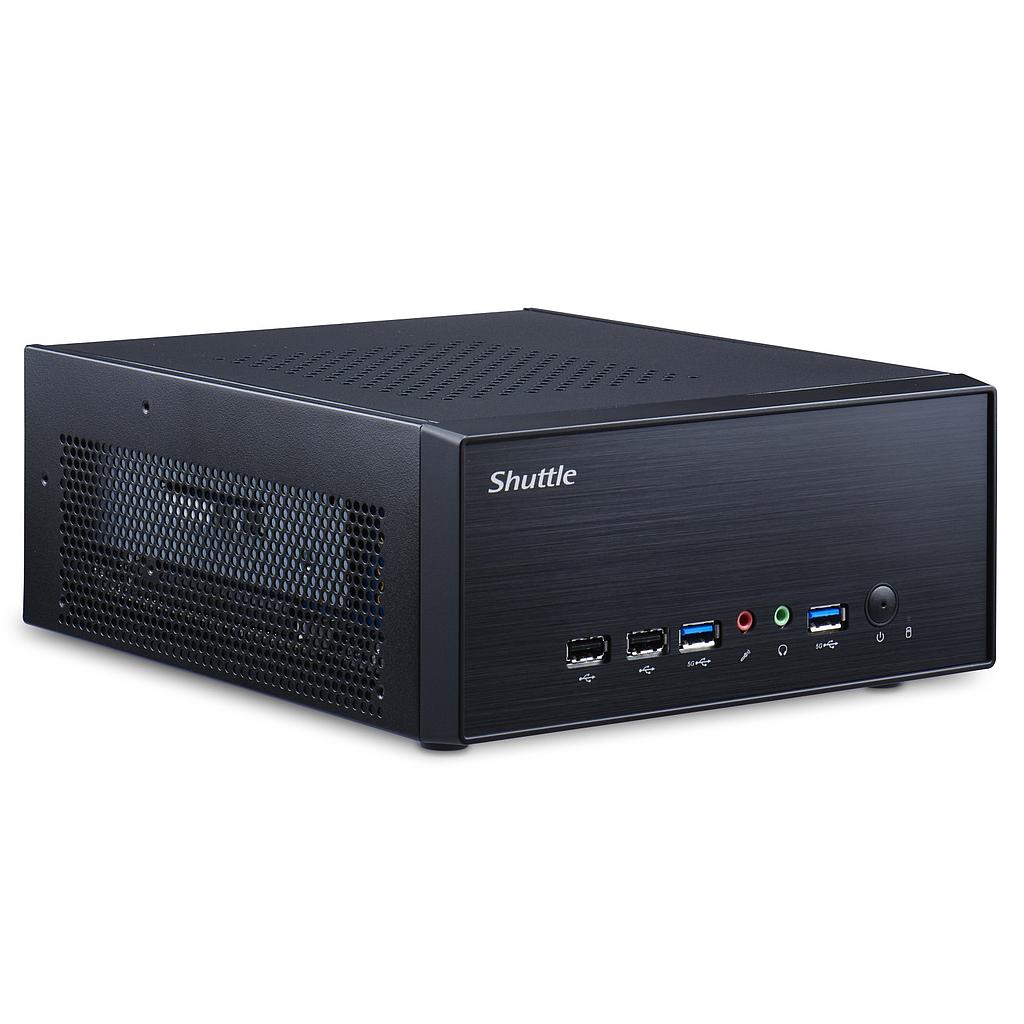

| FRONT PANEL | (2) USB 2.0 ports (2) USB 3.2 Gen 1 ports (1) Microphone-In (1) Line-Out (1) Power button (1) Power LED (1) HDD LED |

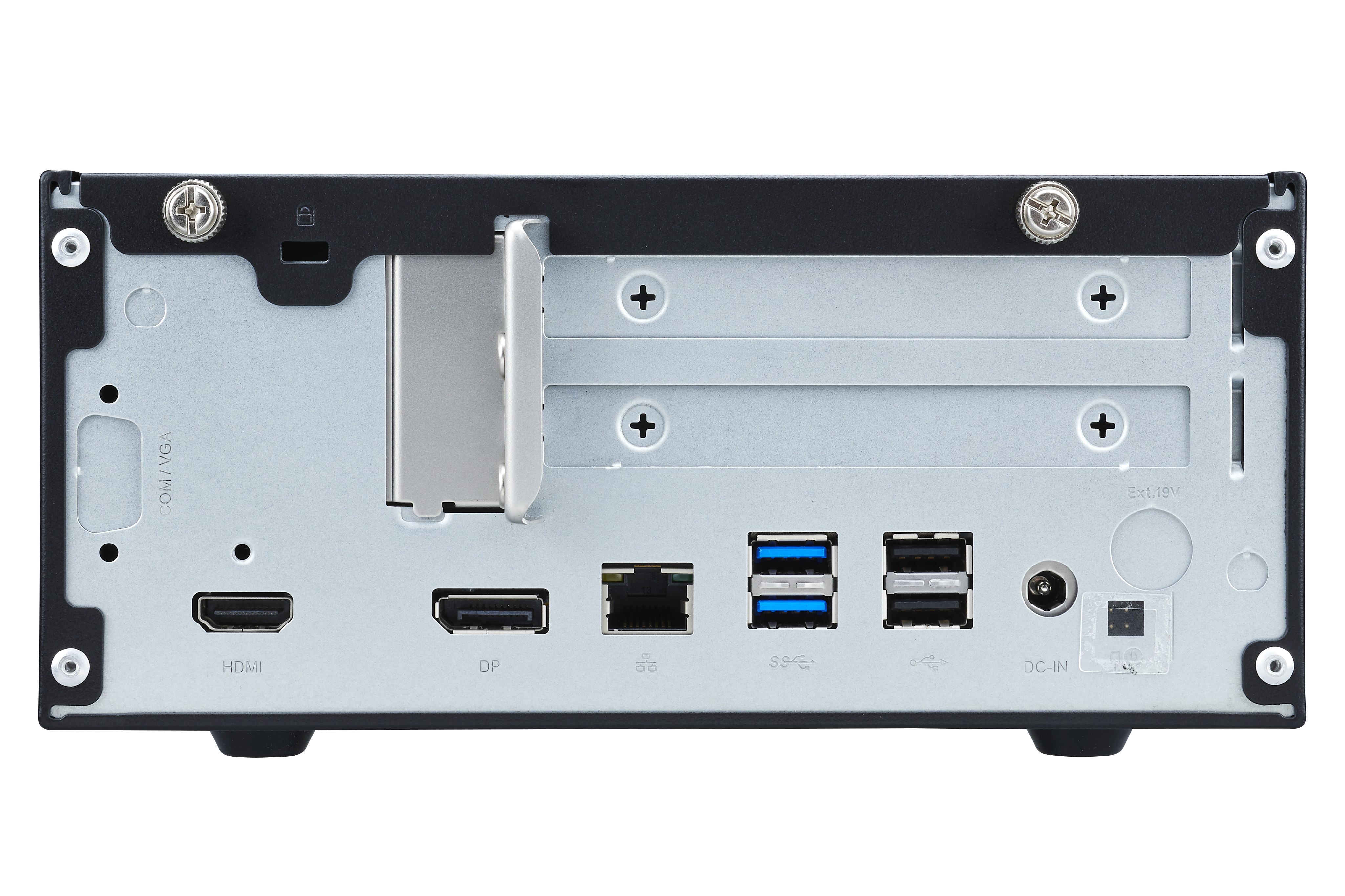

| BACK PANEL | (1) RJ45 Gigabit LAN port (1) HDMI (2) USB 2.0 ports (2) USB 3.2 Gen 1 ports (1) Displayport (2) Antenna Hole (1) DC in |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 250*200*95mm Dimension drawing |
| POWER | Input:100- 240V AC Output: 19.5V/9.23A 180W Adapter |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver 1* Power cord 1*180W adapter 1*Screw pack 1*VESA bracket 1*VESA screw pack " Optional " WLN-M ,WWN03 |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket *Top side ,NVME ,SATA support (1) M.2 2280 Type M key socket *Bottom side ,SATA support (1) M.2 2230 Type A,E Key socket (1) PCI-E X16 (1) PCI-E X1 |
| OS SUPPORT | Windows 10/11 64 bit O.S Linux |
| NET WEIGHT | 2.98 Kg |
| CERTIFICATION | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
| OPERATING TEMPERATURE | 0℃~50℃ |
