Tehnilised andmed
https://global.shuttle.com/products/productsSpec?pn=SH570R8
| FORM FACTOR | Shuttle Form factor |
|---|---|
| PROCESSOR | Support Intel® 10th/11th generation Core™ i3/i5/i7, Pentium®, Celeron®125W LGA1200 CPU |
| CHIPSET | Intel H570 express chipset |
| MEMORY | (4)DDR4 3200 (11th CPU only)MHz / 2933MHz / 2666MHz support, dual channel up to 128GB (32GB*4) |
| VIDEO OUTPUT | (1)HDMI + (2)DisplayPort support triple independent display 4K/60Hz playback (With Integrated Graphic in CPU) |
| AUDIO | Realtek ALC662/ALC897 5.1 Channel high definition audio |
| ETHERNET | Intel i211AT + i219 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (2)4 Pin fan connector (4)SATA 6 connector (1) ATX main power (2*10) (1) ATX 12V power (2*2) (1) 1X4 USB 2.0 header (1) RS232 header (1) VGA header (1) Front AUDIO header (2) Front USB FFC header |

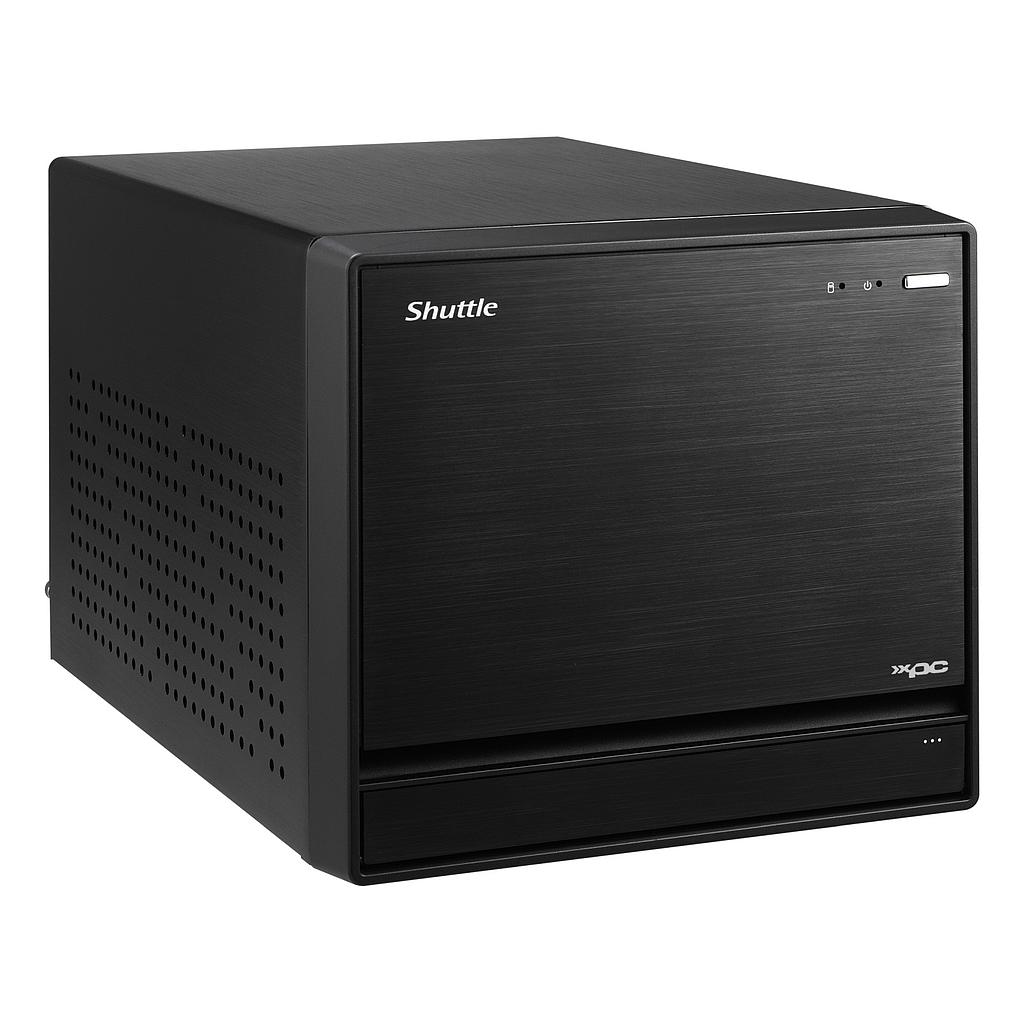

| FRONT PANEL | (3) USB 3.2 Gen 1 Port (1) USB 3.2 Gen 1 type-C Port (1) Microphone-In (1) SPK-Out (1) Power LED (1) HDD LED (1) Power-On button |

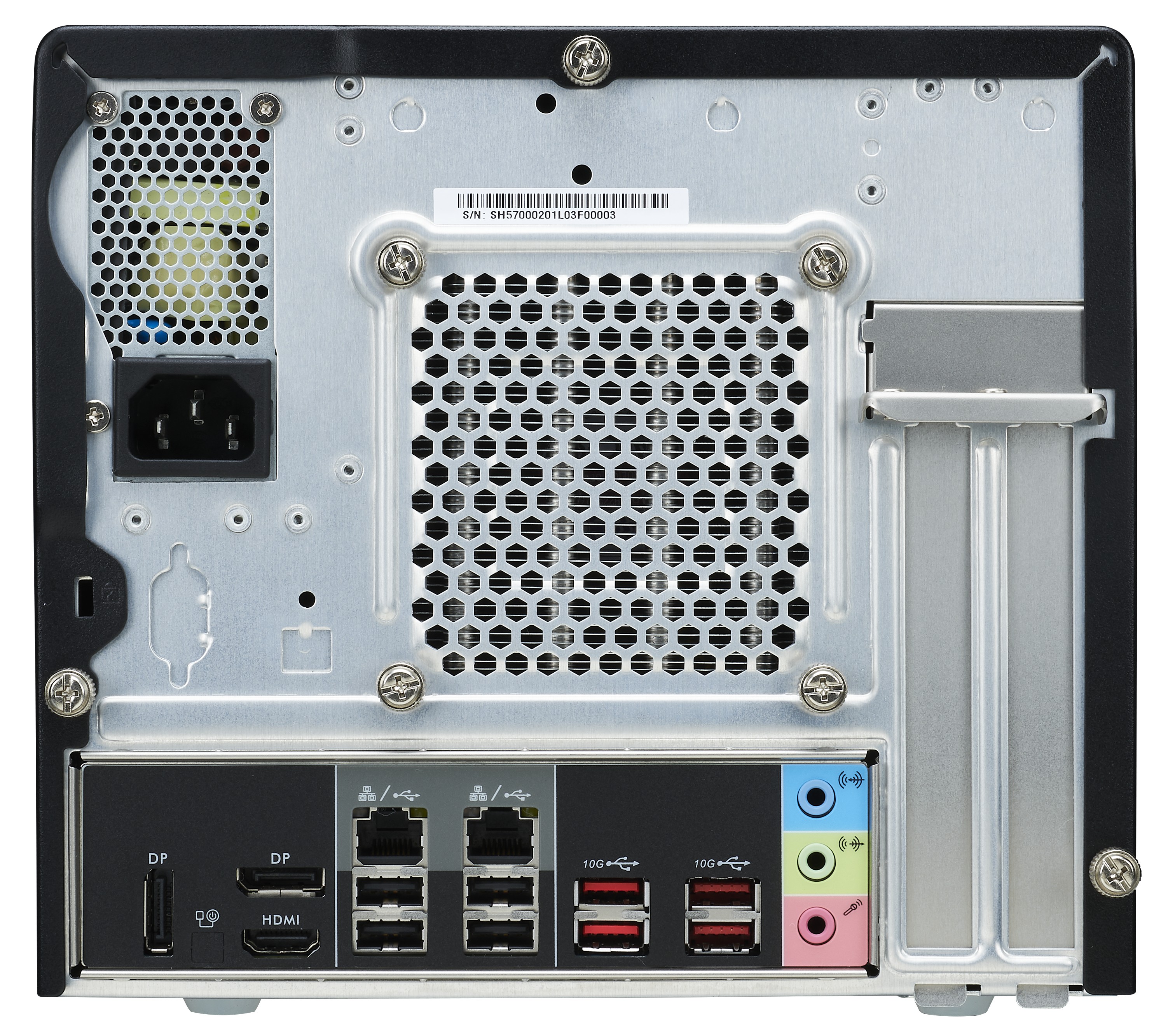

| BACK PANEL | (4) USB 2.0 Port (4) USB 3.2 Gen 2 Port (2)LAN (1)HDMI port (2)Display port (1)Audio Mic in (1)Audio Line in (1)Audio SPK out (1)Clear CMOS button (3)Antenna Hole |
| DRIVE BAYS | (4) 3.5"/2.5" HDD bay |
| DIMENSIONS | 332(L) x 216(W) x 198(H) mm |
| POWER | 80 Plus 500W power supply Input: AC100V-240V，60Hz-50Hz，8A-4A Support 80 PLUS Gold |
| ACCESSORIES | XPC Multi-Language quick guide XPC DVD Driver SATA Cable CPU Thermal Grease Power cord Screw package |
| EXPANSION SLOT | (1) PCI-E X16 Gen 4.0 slot (1) PCI-E X4 Gen 3.0 slot (1) M.2 2280 type M key socket (1) M.2 2230 type E key socket |
| OS SUPPORT | Windows 10/11 64bit OS Linux |
| CERTIFICATION | Safety certification : CB , BSMI , cTUVus EMI certification : FCC , CE , BSMI , RCM , VCCI |
| OPERATING TEMPERATURE | 0℃~40℃ |
