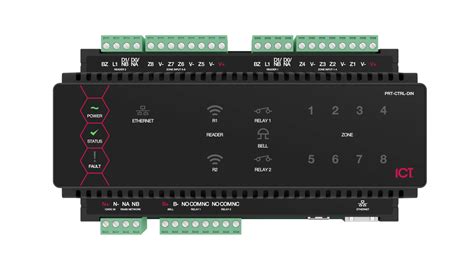

Protege GX DIN rail system controller
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://ict.co/products-solutions/our-hardware/protege-din-rail/protege-gx-din-rail-controller/
| Power Supply | |
| Operating Voltage | 11-14V DC |
| Operating Current | 120mA (typical) |
| DC Output (Auxiliary) | 10.45-13.85VDC 0.7A (typical) electronic shutdown at 1.1A |
| Bell DC Output (Continuous) | 10.4-13.45VDC 8 Ohm 30W Siren or 1.1A (Typical) Electronic Shutdown at 1.6A |
| Bell DC Output (Inrush) | 1500mA |
| Total Combined Current* | 3.4A (max) |
| Electronic Disconnection | 9.0VDC |
| Communication | |
| Communication (Ethernet) | 10/100Mbps Ethernet communication link |
| Communication (RS-485) | 3 RS-485 communication interface ports, 1 for module communication and 2 for reader communication |
| Communication (Modem) | 2400bps modem communication |
| Readers | |
| Readers | 2 reader ports that can be independently configured for either Wiegand (up to 1024 bits configurable) or RS-485, allowing connection of up to 4 readers providing entry/exit control for two doors ** |
| RS-485 reader port connections support configuration for OSDP protocol | |
| Inputs | |
| Inputs (System Inputs) | 8 high security monitored inputs |
| Outputs | |
| Outputs | 4 50mA (max) open collector outputs for reader LED and beeper or general functions |
| Relay Outputs | 2 Form C relays - 7A N.O/N.C. at 30 VAC/DC resistive/inductive |
| Dimensions | |
| Dimensions (L x W x H) | 156 x 90 x 60mm |
| Net Weight | 360g |
| Gross Weight | 440g |
| Operating Conditions | |
| Operating Temperature | UL/ULC 0° to 49°C : EU EN -10° to 55°C |
| Storage Temperature | -10˚ to 85˚C |
| Humidity | 0%-93% non-condensing, indoor use only (relative humidity) |
| Mean Time Between Failures (MTBF) | 560,421 hours (calculated using RFD 2000 (UTE C 80-810) Standard) |
* The Total Combined Current refers to the current that will be drawn from the external power supply to supply the expander and any devices connected to its outputs. The Auxiliary outputs are directly connected via thermal resettable fuses to the N+ N- input terminals, and the maximum current is governed by the trip level of these fuses. The Bell output is connected in the same way.
** Each reader port supports either Wiegand or RS-485 reader operation, but not both at the same time. If combining reader technologies, they must be connected on separate ports.
