- Fanless and silent
Completely fanless, virtually noiseless
Passive cooling through convective heat transfer
Perfect to be used in noise-sensitive environments
Fanless means less dust and thus virtually no maintenance required - 24/7 Nonstop Operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free air circulation around the PC must be guaranteed.
- Ventilation holes must be kept clear.
- Any installed disk must also be approved for permanent
operation by its manufacturer - Chassis

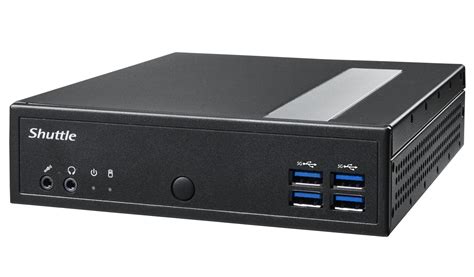

Slim PC with black chassis made of steel
Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre
Weight: 0.8 kg net and 2.1 kg gross
Two holes for Kensington Lock and numerous
threaded holes (M3) at both sides of the chassis - Operation Position
1) Horizontal
2) Vertical with mounted feet.
These feet can be purchased as optional accessory PS02.
3) Vertical (e.g. VESA-mounted behind an appropriate monitor)
In vertical position, the front USB ports should point upward.
Ventilation holes must not be blocked to ensure sufficient cooling. - Operation System
This system comes without operating system.
It is compatible with
- Windows 10, Windows 11 (64-bit)
- Linux (64-bit) - Processor
Model: Intel® Prozessor N100
Max. Turbo clock frequency: 3.4 GHz
Code name: "Alder Lake-N"
10 nm structure, FCBGA1338 package (soldered)
CPU cores / Threads: 4 / 4
L2 Cache: 6 MB
Thermal Design Power (TDP): 6 W
System-on-Chip processor (SoC) with integrated graphics processor, no chipset required - Integrated Graphics
The Graphics Processing Unit (GPU) is integrated in the processor
Intel® UHD Graphics, GPU frequency: max. 750 MHz
Supports DirectX 12.1, OpenGL 4.6, OpenCL 3.0, Intel Quick Sync Video
Execution Units (EU): 24
Triple Display Support via three video outputs:
- HDMI 2.0b: max. 4096 x 2160 @ 60 Hz
- DisplayPort 1.4a: max. 4096 x 2160 @ 60 Hz
- D-Sub/VGA: max. 1920 x 1200 resolution @ 60 Hz
Supports two digital displays and one analog display simultaneously.
The D-Sub/VGA connector does not support the Hot Plug feature. - UEFI Firmware
32 MB Flash ROM with AMI's Aptio UEFI BIOS Firmware
Based on the Unified Extensible Firmware Interface (UEFI)
Supports Power-fail-resume / AC power-on state / always-on [3]
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports boot up from external flash memory cards
With embedded Firmware TPM v2.0 (fTPM) [5]
CMOS battery (type CR2032) - Memory Support
1x SO-DIMM slots with 262 pins
Supports DDR5-4800 (PC5-38400U) SDRAM at 1.1V
Supports one RAM module with max. 16 GB capacity
Supports two unbuffered DIMM modules (no ECC) - 2.5" Bay for Hard disk drive/SSD
Supports one drive in 6.35 cm / 2.5" format (hard disk or SSD)
Serial ATA III Interface with up to 600 MB/s transfer speed
Max. height 9.5 mm
Pre-installed SATA cable (data / power)
Supports Unified Extensible Firmware Interface (UEFI) - M.2 expansion slot for SSD card
M.2-2280 M-key slot
Interfaces: PCI-Express Gen. 3.0 X2 and SATA v3.0 (max. 6 Gbit/s)
Supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280)
Supports SATA SSDs (BM-Key) or NVMe PCIe SSDs (M-Key) - M.2-2230E slot for WLAN cards
Interfaces: PCI-Express Gen. 3.0 X1 und USB 2.0
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
Supports WLAN expansion cards (optional Shuttle accessory: WLN-M1) - Integrated Audio
Realtek ALC888S Audio Codec
Two analog audio connectors (3.5 mm):
1) Line out (head-phones)
2) Microphone input
Digital multi-channel audio output: via HDMI and DisplayPort - Dual 2.5G LAN
Two RJ45 connectors support LAN at 100/1000/2500 Mbit/s.
2x Intel i226-LM Ethernet Controller
Supports Wake-on-LAN - LEDs and Buttons
Power button
Power LED (blue)
HDD LED (yellow) - Front Panel Connectors
4x USB 3.2 Gen 1 Type A (blau, max. 5 Gbps)
Audio 3.5 mm line-out (headphones)
Microphone 3.5 mm input - Back Panel Connectors
HDMI 2.0b digital video and audio output
DisplayPort 1.4a digital video and audio output
D-Sub/ VGA analog video output (15-pin) - no hot plug
4x USB 3.2 Gen 1 Type A (blue, max. 5 Gbps)
2x LAN port 2.5 Gbps (Intel i226-LM, RJ45)
2x RS232 serial port, 9-pin D-Sub (support of an auxiliary voltage of 5/12 V,
the left port is switchable to RS422 / RS485) [4]
DC input for the external power adapter (supports 12V and 19V)
4-pin connector (2.54 mm pitch) supports
- external power-on button
- Clear CMOS function
- +5V DC voltage for external components
2x perforation for optional Wireless LAN antennas - Other Onboard Connectors
Connectors COM1/COM2 for serial ports (occupied)
Jumper JP1 for power-on-after-power-fail (hardware solution) [3]
USB 2.0 header CN1 (4-pin) required for WWN03 accessory - Power Supply
External 65 W AC/DC power adapter (fanless)
AC Input: 100 ~ 240 V AC, 50 ~ 60 Hz, max. 1.6 A
DC Output: 19 V, max. 3.42 A, max. 65 W
Automatic AC voltage adjust
DC cable length: ca. 180 cm
AC cable length: ca. 180 cm (3-pin Micky MM C6 and Schuko earthed safety plug) - DC Input connector
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external power source
with either 12 V ±5% (max. 5.33 A) or 19 V ±5% (max. 3.42 A). - Supplied Accessories
Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
VESA mount for 75 / 100 mm standard (two metal brackets)
Four screws M3 x 5 mm (screws together VESA mount and PC)
Four screws M4 x 10 mm (to affix VESA mount on the PC)
Four screws M3 x 4 mm (to mount a 2.5" storage into the bay)
Two screws M2 (to mount some M.2 cards)
Driver DVD (Windows 64-bit)
External 65 W power adapter with power cord (with protective-earth contacts) - Optional Accessories:
- PS02: optional stand for vertical operation
- CXP01: adapter cable for external power button
- PRM01: 2U rack-mount front plate for two Shuttle XPC slim PCs
- DIR01: DIN-Rail mounting kit
- WLN-M1: WLAN module in M.2 format supports Wi-Fi 6 (IEEE 802.11ax) and Bluetooth 5.2 including two external antennas and cables
- WWN03: LTE kit with adapter card, 2 antennas and antenna cables. Supports one M.2 LTE module and one nano SIM card [1] - Environmental Specifications
Operating temperature range: 0 ~ 40 °C
Relative humidity range: 10 ~ 90 % (non-condensing) - Certification and Compliance
EMI: CE, UKCA, FCC, RCM, VCCI, BSMI
Safety: CB IEC 60950-1/62368-1, cTUVus (UL 62368-1), BSMI
Other: RoHS, Energy Star, ErP
