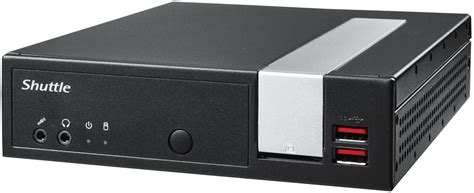

Shuttle barebone slim DL20N6V2 N6005 SO-DDR4, black
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.shuttle.eu/en/products/slim/dl20n6v2/spec
- Fanless and silent
Completely fanless, virtually noiseless
Passive cooling through convective heat transfer
Perfect to be used in noise-sensitive environments
Fanless means less dust and thus virtually no maintenance required - 24/7 Nonstop Operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free air circulation around the PC must be guaranteed.
- Ventilation holes must be kept clear.
- Any installed disk must also be approved for permanent
operation by its manufacturer - Chassis
Slim PC with black chassis made of steel
Dimensions: 190 x 165 x 43 mm (LWH) = 1.35-litre
Weight: 0.8 kg net and 1.95 kg gross
Two holes for Kensington Lock and numerous
threaded holes (M3) at both sides of the chassis - Operation Position
1) Horizontal
2) Vertical with mounted feet.
These feet can be purchased as optional accessory PS02.
3) Vertical (e.g. VESA-mounted behind an appropriate monitor)
In vertical position, the front USB ports should point upward.
Ventilation holes must not be blocked to ensure sufficient cooling. - Operation System
This system comes without operating system.
It is compatible with
- Windows 10 (64-bit)
- Windows 11 (64-bit)
- Linux (64-bit) - Processor
Intel® Pentium® Silver Processor N6005, Quad Core
CPU clock frequency: 2.0 GHz, max. Turbo frequency: 3.3 GHz
Code name: "Jasper Lake"
10 nm structure, FCBGA1338 package (soldered)
CPU cores / Threads: 4 / 4
L2 Cache: 4 MB
Thermal Design Power (TDP): 10 W
Supports x86-64, AES-NI, VT-x (EPT), VT-d, SSE4.2, AES
System-on-Chip processor (SoC) with integrated graphics processor, no chipset required - Integrated Graphics
The Graphics Processing Unit (GPU) is integrated in the processor
Intel® UHD Graphics (11th Gen), GPU frequency: 450~900 MHz
Supports DirectX 12, OpenGL 4.5, OpenCL 1.2, Intel Quick Sync Video, Intel Clear Video (HD)
Execution Units (EU): 32
Triple Display Support via three video outputs:
- HDMI 2.0b: max. 4096 x 2160 @ 60 Hz
- DisplayPort 1.4a: max. 4096 x 2160 @ 60 Hz
- D-Sub/VGA: max. 1920 x 1200 resolution @ 60 Hz
Supports two digital displays and one analog display simultaneously.
The D-Sub/VGA connector does not support the Hot Plug feature. - UEFI Firmware
16 MB Flash ROM with AMI's Aptio UEFI BIOS Firmware
Based on the Unified Extensible Firmware Interface (UEFI)
Supports Power-fail-resume / AC power-on state / always-on / always-off [3]
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports boot up from external flash memory cards
With embedded Firmware TPM v2.0 (fTPM) [5]
CMOS battery (type CR2032) - Memory Support
2x SO-DIMM slots with 260 pins
Supports DDR4-2933 (PC4-23466U) SDRAM at 1.2V
Supports Dual Channel mode
Supports max. 16 GB per DIMM
Maximum total size: 16 GB (either 1x 16 GB or 2x 8 GB)
Supports two unbuffered DIMM modules (no ECC) - 2.5" Bay for Hard disk drive/SSD
Supports one drive in 6.35 cm / 2.5" format (hard disk or SSD)
Serial ATA III Interface with up to 600 MB/s transfer speed
Max. height 9.5 mm
Pre-installed SATA cable (data / power)
Supports Unified Extensible Firmware Interface (UEFI) - M.2 expansion slot for SSD card
M.2 2280 BM slot
Interfaces: PCI-Express Gen. 3.0 X2 and SATA v3.0 (max. 6 Gbit/s)
Supports M.2 cards with a width of 22 mm
and a length of 42, 60 or 80 mm (type 2242, 2260, 2280)
Supports SATA SSDs (BM-Key) or NVMe PCIe SSDs (M-Key) - M.2-2230E slot for WLAN cards
Interfaces: PCI-Express Gen. 2.0 X1 und USB 2.0
Supports M.2 cards with a width of 22 mm and a length of 30 mm (type 2230)
Supports WLAN expansion cards (optional Shuttle accessory: WLN-M / -M1) - Integrated Audio
Realtek ALC897 / ALC662 / ALC888S Audio Codec
Two analog audio connectors (3.5 mm):
1) Line out (head-phones)
2) Microphone input
Digital multi-channel audio output: via HDMI and DisplayPort - Card Reader
Integrated card reader
supports standard SD, SDHC and SDXC memory flash cards
Controller: Genesys GL9750 SD Host Controller - Wired Network
RJ45 connector supports LAN at 100/1000/2500 Mbit/s.
Intel i225 Ethernet Controller with MAC, PHY and PCIe interface
Supports Wake-on-LAN - LEDs and Buttons
Power button
Power LED (blue)
HDD LED (yellow) - Front Panel Connectors
2x USB 3.2 Gen 2 Type A (red)
SD card reader
Audio line-out (headphones)
Microphone input - Back Panel Connectors
HDMI 2.0b digital video and audio output
DisplayPort 1.4a digital video and audio output
D-Sub/ VGA analog video output (15-pin) - no hot plug
2x USB 3.2 Gen 1 Type A (blue)
2x USB 2.0 Type A
Network 2.5 Gbps (LAN, RJ45)
2x RS232 serial port, 9-pin D-Sub (support of an auxiliary voltage of 5/12 V,
the left port is switchable to RS422 / RS485) [4]
DC input for the external power adapter
4-pin connector (2.54 mm pitch) supports
- external power-on button
- Clear CMOS function
- +5V DC voltage for external components
2x perforation for optional Wireless LAN antennas - Other Onboard Connectors
Connectors COM1/COM2 for serial ports (occupied)
Jumper JP2 for power-on-after-power-fail (hardware solution) [3]
USB 2.0 header (4-pin) required for WWN03 accessory - Power Supply
External 40 W AC/DC power adapter (fanless)
AC Input: 100 ~ 240 V AC, 50 ~ 60 Hz
DC Output: 19 V / 2.1 A
Automatic AC voltage adjust
Dimensions: ca. 95 x 42 x 29 mm (LWH)
DC cable length: ca. 170 cm
AC cable length: ca. 170 cm (with 2-pin Europlug) - DC Input connector
DC Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external power source
with either 12 V ±5% (max. 3.33 A) or 19 V ±5% (max. 2.1 A). - Supplied Accessories
Multi-language user guide (EN, DE, FR, ES, JP, KR, SC, TC)
VESA mount for 75 / 100 mm standard (two metal brackets)
Four screws M3 x 5 mm (screws together VESA mount and PC)
Four screws M4 x 10 mm (to affix VESA mount on the PC)
Four screws M3 x 4 mm (to mount a 2.5" storage into the bay)
Two screws M3 x 5 mm (to mount some M.2 cards)
Driver DVD (Windows 64-bit)
External 40 W power adapter with power cord (Europlug) - Optional Accessories:
- PS02: optional stand for vertical operation
- CXP01: adapter cable for external power button
- PRM01: 2U rack-mount front plate for two Shuttle XPC slim PCs
- DIR01: DIN-Rail mounting kit
- WLN-M (802.11ac/Wifi 5) and WLN-M1 (802.11ax/Wifi 6): WLAN module in M.2-2230 format with two external antennas supports WLAN and Bluetooth
- WWN03: LTE kit with adapter card, 2 antennas and antenna cables. Supports one M.2 LTE module and one nano SIM card [1] - Environmental Specifications
Operating temperature range: 0 ~ 40 °C
Relative humidity range: 10 ~ 90 % (non-condensing)
