Tehnilised andmed
https://global.shuttle.com/products/productsSpec?pn=DH610S
| FORM FACTOR | 1.3L chassis |
|---|---|
| PROCESSOR | Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor * BIOS v2.01 and updated version support Raptor Lake (13th) CPU |
| CHIPSET | Intel H610 Express chipset |
| MEMORY | 2 x DDR4 SODIMM slots,32GB per DIMM (Max 64GB) DDR4 up to 3200 MHz |
| VIDEO OUTPUT | HDMI 2.0 x 1+ DisplayPort x 1, Dual video outputs 4K playback (Dual channel memory recommended) Integrated in CPU |
| AUDIO | Realtek High Definition Audio |
| ETHERNET | (1)Intel I219 GbE Lan 10Mb/s,100Mb/s,1Gb/s operation Support Wake-On-LAN function |
| STORAGE INTERFACE | SATA 6.0Gb/s interface |
| ONBOARD CONNECTORS | (1) 4pin fan connector (1) VGA(For PVG01 use) (1) 1x4 pin USB header(For WWN03 use) (1) SATA connector w/power (1) Front audio header (1) Auto power on header |

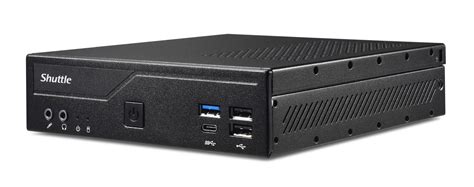

| FRONT PANEL | (2) USB 3.2 Gen1 ports (Include Type C x1) (2) USB 2.0 ports (1) Microphone-In (1) Line-Out (1) Power-On button (1) Power LED (1) HDD LED |

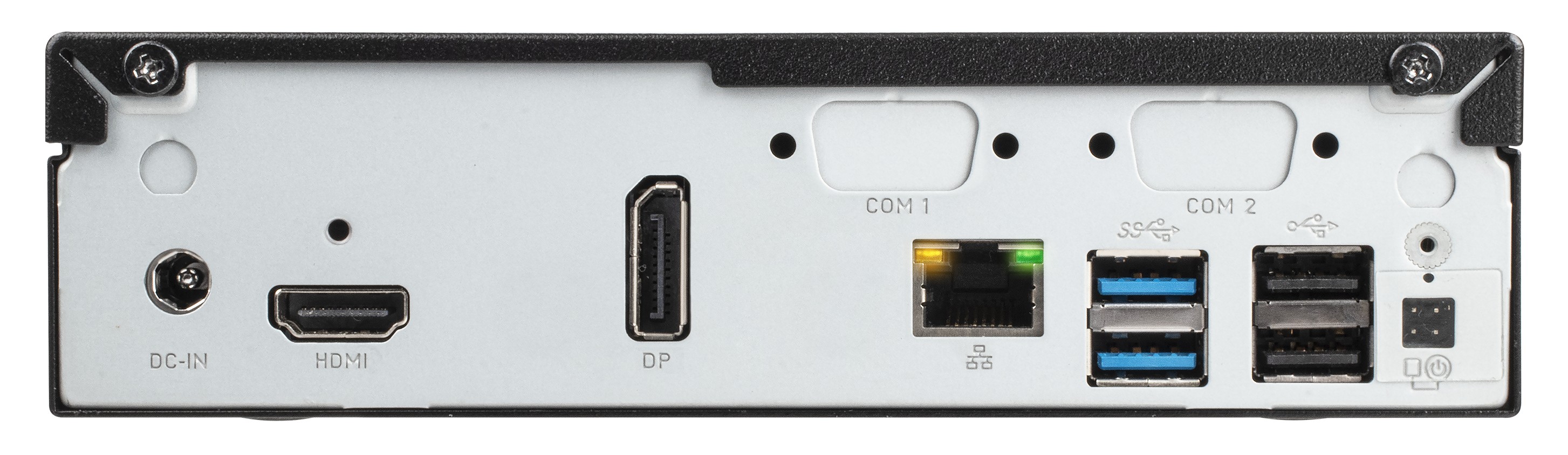

| BACK PANEL | (1) RJ45 Gigabit LAN port w/LED (1) HDMI port (1) Display port (2) USB 3.2 Gen1 ports (2) USB 2.0 ports (1) External 4pin header (1) DC-in (2) Wireless Antenna fixture (1) Kensington lock |
| DRIVE BAYS | (1) 2.5" HDD / SSD bay |
| DIMENSIONS | 190(L) x 165(W) x 43(H) mm |
| POWER | 120W Power Adapter Input:100- 240V AC 19V 6.32A |
| ACCESSORIES | XPC Multilanguage Quick User Guide XPC DVD Driver Power cord Thermal Grease HDD Screw pack 120W adapter |
| EXPANSION SLOT | (1) M.2 2280 Type M key socket (1) M.2 2230 Type E key socket |
| OS SUPPORT | Windows 10/11 64 bit O.S Linux |
| OPERATING TEMPERATURE | 0℃~50℃ |
