Tehnilised andmed
Type of cabinet
Wall mount
Size
19"
ICT height
12 U
Assembly type
Self-assembly
Working depth
529.5 mm
Front door type
Temper glass
Door type
Single-leaf
Maximum static load
60 kg

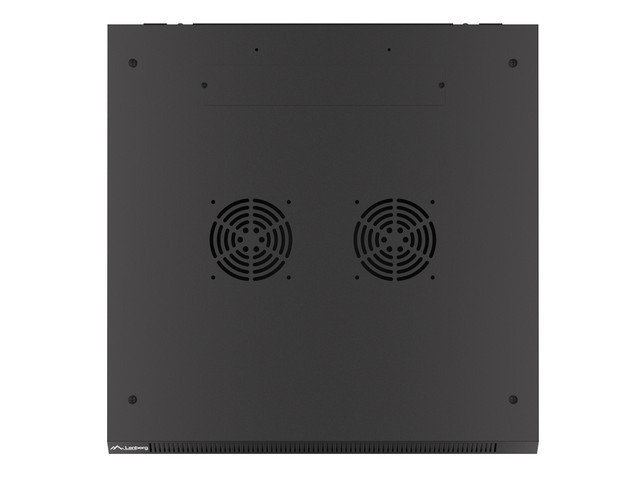

Slot amount for fans
2
Number of vertical rails
4
Thermostat
No
LCD panel
No
Colour
Black
RAL color
RAL9004
Weatherproof rating
IP20
Front door thickness
5 mm
Rear door thickness
1 mm
Upper & lower panel thickness
1.2 mm
Side panel thickness
1 mm
Mounting rails thickness
1.5 mm
Frame thickness
1.2 mm
Other elements sheet thickness
1.2 mm
Depth
600 mm
Width
600 mm
Height
640 mm
Weight
23 kg
Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details
Bottom panel, Front door
Included Accessories
Front lock, Grounding cable, M6 screws, Mounting bracket, Set of assembly elements, Side locks, User guide
