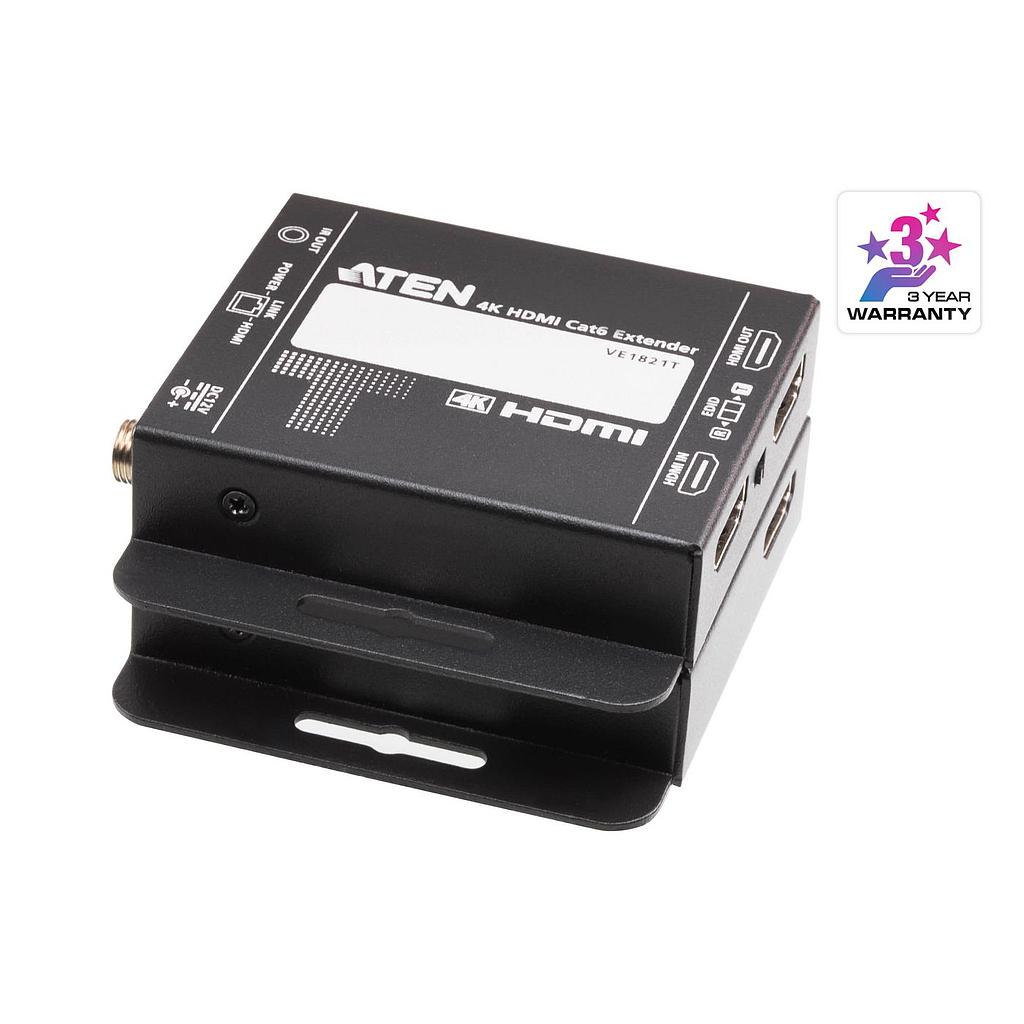

Aten 4K HDMI Cat 6 extender
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
Features
3D
Yes
Bandwidth
340 MHz
Bandwidth
10,2 Gbit/s
Cable types supported
Cat5e, Cat6
HDCP
Yes
HDCP version
1.4
Impedance
100 Ω
Material
Metal
Maximum refresh rate
60 Hz
Maximum resolution
4096 x 2160 pikslit
Maximum transfer distance
35 m
Product colour
Black
Supported graphics resolutions
1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160, 4096 x 2160, 640 x 480 (VGA), 800 x 600 (SVGA)
Type
AV transmitter & receiver
Legal Information
Country of Origin
China
Tariff No.
8517620000
Operational conditions
Operating relative humidity (H-H)
20 - 90 protsenti
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Package dimensions
Depth (package,cm)
21,3 cm
Gross Weight (Package, kg)
0,61 kg
Height (package,cm)
7,9 cm
Width (package,cm)
13,7 cm
Packaging data
Quantity per pack
2 tk
Ports & interfaces
Connectivity technology
Wired
DC-in jack
Yes
Ethernet LAN
Yes
HDMI in
1
Number of HDMI outputs
1
Remote (IR) input
1
Remote (IR) output
1
RJ-45 input ports
1
RJ-45 output ports
1
Power
Power consumption (receiver) (max)
0,87 W
Power consumption (transmitter) (max)
1,86 mA
Power source type
DC
Product dimensions
Net Weight (Product, kg)
0,42 kg
Weight & dimensions
Receiver dimensions (WxDxH)
68 x 79.5 x 16.5 mm
Receiver weight
120 g
Transmitter dimensions (WxDxH)
68 x 79.5 x 16.5 mm
Transmitter weight
120 g
