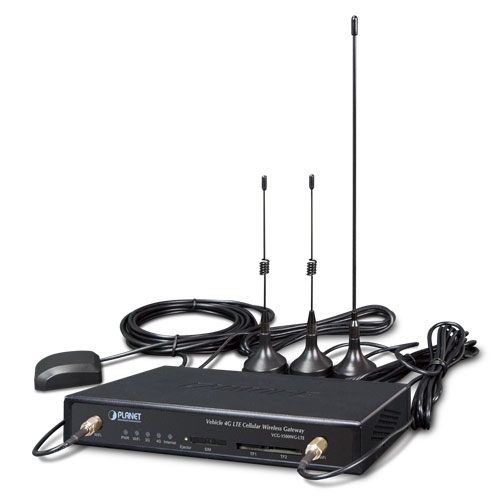

Planet vehicle 4G LTE cellular wireless gateway with 5-port 10/100TX (1-SIM card slot, 802.11n, GPS, -25~65 degrees C)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.planet.com.tw/en/product/vcg-1500wg-lte?c1=network-security&c2=vpn-gateway&c3=security-cellular-gateway
| Hardware Specifications | |
|---|---|
| Copper Ports | 4 LAN 10/100BASE-TX RJ45 auto-MDI/MDI-X ports 1 WAN 10/100BASE-TX RJ45 auto-MDI/MDI-X port |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| SIM Interface | 1 x SIM card slot with mini SIM card tray |
| Cellular Antenna | 1 x 2dBi external antenna with SMA connector for LTE |
| Wi-Fi Antenna | 2 x 2dBi external antennas with SMA connectors for 2.4GHz |
| GPS Antenna | 1 x 28dB gain external antenna with SMA connectors for GPS -3m |
| USB Interface | 1 x USB 2.0 for external storage |
| TF Card Interface | 2 x TF cards for storing thousands of advertising data, max. capacity up to 128G for each |
| Connector | Standard 4-pin vehicle power jack for power input |
| Reset Button | > 5 sec: Factory default |
| ESD Protection | 15KV DC |
| Installation | Mounting brackets for vehicles |
| LED Indicators | System:
|
| Dimensions (W x D x H) | 168.43 x 93.02 x 25.6 mm (not including antenna and connector) |
| Weight | 537g (not including antenna) |
| Power Requirements – DC | 6~32V DC, 1.5A |
| Power Consumption | 3 watts/10.23 BTU |
| Multi Band Supports | |
| EU Model | - FDD LTE B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800) - TDD LTE B38/B40/B41 (2600/2300/2500) - WCDMA B1/B5/B8 (2100/850/900) - GSM/EDGE B3/B8 (1800/900) |
| US Model | - FDD LTE B2/B4/B5/B13/B17/B25 (1900/AWS/850/700) - WCDMA B1/B2/B4/B5/B8 (2100/1900/AWS/850/900) - EVDO BC10/BC0/BC1 (1700/800/1900) - GSM/GPRS/EDGE (850/900/1800/1900) |
| LTE Data Rate | 20MHz bandwidth: 100Mbps (DL), 50Mbps (UL) |
| Wireless Specifications | |
| Standard | IEEE 802.11b/g/n 2.4GHz |
| Wireless Mode | Access Point |
| Operating Channels | FCC: 1~11, ETSI: 1~13 |
| Encryption Security | 64-/128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Data Rate | Up to 300Mbps |
| Transmission Distance | Up to 150 meters *The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Advanced Functions | |
| VPN | GRE, PPTP, IPSec, L2TP |
| QoS | Bandwidth management |
| WAN Connection Type | PPPoE, Static, DHCP client |
| Wifidog | Wi-Fi authentication and advertising |
| Secure Network | IP filter URL filter MAC filter |
| Other | Supports demilitarized zone (DMZ) Supports NAT port mapping function, UPnP Supports Dynamic DNS |
| Management | |
| Basic Management Interfaces | Console, Telnet, Web browser |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC |
| Standards and Protocols Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control and back pressure RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 5321 SMTP RFC 2068 HTTP RFC 1939 POP3 RFC 854 TELNET RFC 959 FTP |
| Environment | |
| Operating | Temperature: -25 ~ 65 degrees C Relative Humidity: 95% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative Humidity: 95% (non-condensing) |
