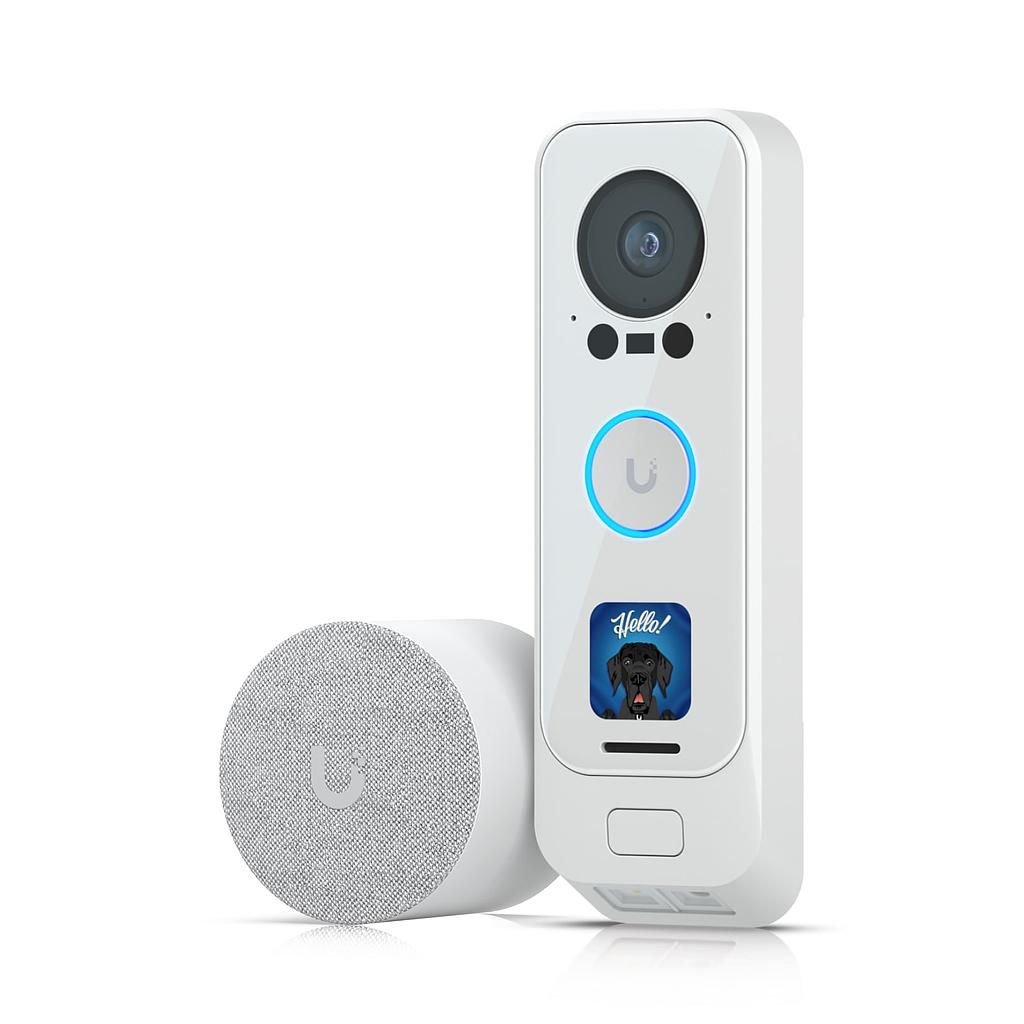

G4 Doorbell Professional PoE Kit White
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://techspecs.ui.com/unifi/cameras-nvrs/uvc-g4-doorbell-pro-poe-kit
| Mechanical | |
|---|---|
| Dimensions | UVC-G4 Doorbell Pro Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") UP-Chime PoE Device: Ø62 x 54 mm (Ø2.5 x 2.1") In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5") On-wall mount: Ø62 x 20.2 mm (Ø2.5 x 0.8") |
| Weight | UVC-G4 Doorbell Pro Device: 264 g (9.3 oz) Wall mount: 56 g (2 oz) Wedge: 33 g (1.2 oz) On-wall mount: 53 g (1.9 oz) UP-Chime PoE Device: 158 g (5.6 oz) In-wall mount: 91 g (3.2 oz) On-wall mount: 28 g (1 oz) |
| Enclosure material | Aluminum alloy, polycarbonate |
| Mount material | Wall mount: aluminum alloy Wedge: polycarbonate On-wall mount: polycarbonate Chime mout: polycarbonate, zinc alloy |
| Weatherproofing | IPX4 (UVC-G4 Doorbell Pro) |
| Color | Black White |
| Optics | |
| Sensor | Main camera: 5MP CMOS Package camera: 8MP CMOS |
| Lens | Fixed focal length |
| View angle | Main camera: H: 138°, V: 114°, D: 155° (LDC On) Main camera: H: 160°, V: 117°, D: 160° (LDC Off) Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264 |
| Resolution | Main camera: 2MP 1600 x 1200 (4:3) Package camera: 2MP 1600 x 1200 (4:3) |
| Max. frame rate | 30 FPS |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Networking interface | UVC-G4 Doorbell Pro: GbE RJ45 port UP-Chime PoE: 10/100 MbE port |
| Power method | PoE |
| Supported voltage range | UVC-G4 Doorbell Pro: 37—57V DC UP-Chime PoE: 44–57V DC |
| Max. power consumption | UVC-G4 Doorbell Pro: 7W UP-Chime PoE: 3.5W |
| LED | Link/activity |
| Buttons | (1) Ring button (1) Factory reset |
| Ambient operating temperature | UVC-G4 Doorbell Pro: -30 to 40º C (-22 to 104º F) UP-Chime PoE: 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | UVC-G4 Doorbell Pro: 0 to 90% noncondensing UP-Chime PoE: 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Audio | |
| Microphone | Yes (Can be disabled for the Doorbell) |
| Speaker | Yes |
| Buzzer | Yes (UP-Chime PoE) |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
