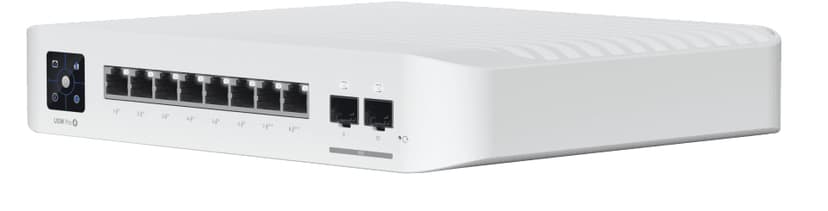

Ubiquiti managed L3 PoE switch 120W, 8*RJ-45, 2*SFP+

267.69 € 267.69 EUR

260.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

Dimensions
200 x 248 x 44 mm
Port Layout
1 GbE RJ45
8 (6 PoE+; 2 PoE++) (1G/100M/10M)
10G SFP+
2 (10G/1G)
Max. PoE Output
Up to PoE++
Total PoE Availability
120W
Layer 3
✓
Form Factor
Compact desktop, wall
Switching Capacity
56 Gbps
Total Non-Blocking Throughput
28 Gbps
Forwarding Rate
42 Mpps
Supported VLANs
1,000
MAC Address Table Size
16,000
L3 Table Size
ARP Entries
6,000
IPv4 Routes
512
Packet Buffer Size
1.5 MB
Access Lists
IPv4
128
MAC
128
DHCP Server (Local Networks)
✓
DHCP Relay
✓
Inter-VLAN Routing (Local Networks)
✓
Static Routing (Local Networks)
✓
LACP Port Aggregation
✓
STP & RSTP
✓
Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
✓
IGMP Snooping
✓
802.1X Control
✓
MAC-Based ACLs & Device Isolation
✓
DHCP Snooping & Guarding
✓
Egress Rate Limit
✓
Flow Control
✓
Storm Control
✓
Multicast & Broadcast Rate Limiting
✓
MAC Address Blocking
✓
IP-Based ACLs & Network Isolation
✓
MAC-Based Port Restriction
✓
Port Isolation
✓
Port Mirroring
✓
Jumbo Frames
✓
LLDP-MED
✓
Voice VLAN
✓
Loop Protection
✓
PoE Ports
PoE+
6
PoE++
2
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
32W
PoE++
64W
Max. Power Consumption
30W (Excluding PoE Output) 150W (Including PoE Output)
Power Method
Universal input, 100—240V AC, 50/60 Hz
Power Input Method
AC input
Power Supply
AC/DC, internal, 150W
Supported Voltage Range
100—240V AC
Management
Ethernet AR
Heat Dissipation (Excluding PoE Output)
102.36 BTU/hr
Weight
2.1 kg
Enclosure Material
Polycarbonate, metal
Mount Material
Polycarbonate
Supported Rack Depth
400~1200 mm
LCM Display
1.3" touchscreen
Ambient Operating Temperature
-5 to 45° C
Ambient Operating Humidity
10 to 90% noncondensing
NDAA Compliant
✓
Certifications
CE, FCC, IC, Anatel
Application Requirements
UniFi Network
Version 7.5.176 and later
