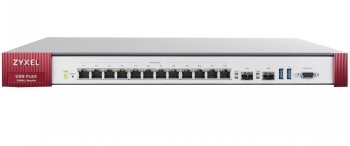

ZyXEL USG Flex firewall 12 Gigabit user-definable ports, 2*SFP, 2* USB / 1 YR UTM bundle
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.zyxel.com/global/en/products/next-gen-firewall/usg-flex-firewall-usg-flex-700
WiFi standard
-
10/100/1000 Mbps RJ-45 ports
12 (configurable), 2x SFP (configurable)
USB 3.0 ports
2
Console port
DB9
Rack-mountable
Yes
Fanless
-
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2
5,400
VPN throughput (Mbps)
1,100
VPN IMIX Throughput (Mbps)*3
550
IPS throughput (Mbps)*4
2,000
Anti-Malware throughput (Mbps)*4
1,450
UTM throughput (Anti-malware & IPS, Mbps)*4
1,350
Max. TCP concurrent sessions*5
1,600,000
Recommended gateway-to-gateway IPsec VPN tunnels
250
Max. concurrent IPsec VPN tunnels*6
500
Concurrent SSL VPN users
150
VLAN interface
128
Wireless Specifications
Standard compliance
-
Wireless frequency
-
Radio
-
SSID number
-
No. of antenna
-
Antenna gain
-
Data rate
-
Key Features
Security Service
Sandboxing*7
Yes
Reputation Filter*7
Yes
IPS*7
Yes
Application Patrol*7
Yes
Email Security*7
Yes
Web filtering*7
Yes
SecuReporter*7
Yes
Collaborative Detection & Response*7
Yes
SSL (HTTPS) Inspection
Yes
Geo Enforcer
Yes
2-Factor Authentication
Yes
Device Insight
Yes
Security Profile Sync*7
Yes
VPN Features
VPN
IKEv2, IPSec, SSL, L2TP/IPSec
Microsoft Azure
Yes
Amazon VPC
Yes
WLAN Management
Default Number of Managed AP
8
Recommend max. AP in 1 AP Group
200
Secure WiFi Service*7
Yes
Maximum No. of Tunnel-Mode AP
130
Maximum No. of Managed AP
520
Management & Connectivity
Nebula Cloud Mode
Yes
Nebula Cloud Monitoring Mode
Yes
Device HA Pro
Yes
Link Aggregation (LAG)
Yes
Hotspot Management*7
Yes
Concurrent device logins (default/max.)*7*8
500 / 2000
Burst login rate (users/30sec)
220
Power Requirements
Power input
100-240V AC, 50/60Hz, 2.5A max.
Max. power consumption (Watt Max.)
46
Heat dissipation (BTU/hr)
120.1
Physical Specifications
Item
Dimensions (WxDxH)(mm): 430 x 250 x 44
Weight (kg/lb.): 3.3/7.28
Packing
Dimensions (WxDxH)(mm): 519 x 392 x 163
Weight (kg): 4.8
Included accessories
Power cord
Rack mounting kit
Environmental Specifications
Operating
Temperature: 0°C to 40°C
Humidity: 10% to 90% (non-condensing)
Storage
Temperature: -40°C to 70°C
Humidity: 10% to 90%(non-condensing)
MTBF (hr)
947,736
Acoustic noise
25.3dBA on <25degC Operating Temperature 46.2dBA on full FAN speed.
Certifications
EMC
FCC Part 15 (Class A)
CE EMC (Class A)
C-Tick (Class A)
BSMI
Safety
LVD (EN60950-1)
BSMI
- Note:
- *: This matrix with firmware ZLD5.38 or later.
- *1: Actual performance may vary depending on system configuration, network conditions, and activated applications.
- *2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
- *3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets); IMIX: UDP throughput based on a combination of 64 byte, 512 byte and 1424 byte packet sizes.
- *4: Anti-malware (with Express Mode) and IPS throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
- *5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
- *6: Including Gateway-to-Gateway and Client-to-Gateway.
- *7: With Zyxel service license to enable or extend the feature capacity.
