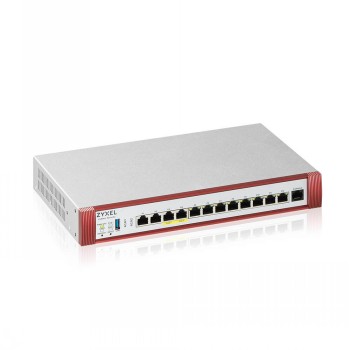

ZyXEL USG Flex500 H series, user-definable ports with 2*2.5G, 2*2.5G( PoE+) & 8*1G, 1*USB (device only)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.zyxel.com/global/en/products/next-gen-firewall/usg-flex-firewall-usg-flex-500h
Interface ports
2 x 2.5mGig
2 x 2.5mGig/PoE+ (802.3at, total 30W)
8 x 1GbE
USB 3.0 ports
1
Console port
Yes (RJ-45)
Rack-mountable
Yes
Fanless
-
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2
10,000
VPN throughput (Mbps)*3
2,000
IPS throughput (Mbps)*4
4,500
Anti-Malware throughput (Mbps)*4
3,000
UTM throughput (Anti-malware & IPS, Mbps)*4
3,000
Max. TCP concurrent sessions*5
1,000,000
Max. concurrent IPsec VPN tunnels*6
300
Recommended gateway-to-gateway IPsec VPN tunnels
150
Concurrent SSL VPN users
150
VLAN interface
64
Security Service*7
Anti-Malware
Yes
IPS
Yes
Application Patrol
Yes
Web filtering
Yes
Reputation Filter
Yes
SecuReporter
Yes
Sandboxing
Yes
Device Insight
Yes
Secure WiFi*8
Yes
Key Features
VPN
IKEv2, IPSec, SSL
SSL (HTTPS) inspection
Yes
Two-Factor Authentication
Yes
Nebula Centralized Management
Yes
Power Requirements
Power input
19V DC, 4.736A
Max. power consumption (Watt Max.)
68
Heat dissipation (BTU/hr)
211.3
PoE power budget (watt max.)
30
Physical Specifications
Item
Dimensions (WxDxH)(mm): 300 x 182 x 43.5
Weight (kg): 1.64
Packing
Dimensions (WxDxH)(mm): 350 x 149 x 244
Weight (kg): 2.93
Included accessories
Power adapter & Power cord
RJ-45 - RS-232 cable for console connection
Rack mounting kit
Environmental Specifications
Operating
Temperature: 0°C to 40°C / 32°F to 104°F
Humidity: 10% to 90% (non-condensing)
Storage
Temperature: -30°C to 70°C / -22°F to 158°F
Humidity: 10% to 90%(non-condensing)
MTBF (hr)
40°C/ 346653.298 hr
25°C/ 491775.8384 hr
Acoustic noise
16.86dBA on < 25degC Operating Temperature, 43.76dBA on full FAN speed
Certifications
EMC
FCC Part 15 (Class A)
CE EMC (Class A)
RCM (Class A)
BSMI
Safety
LVD (EN62368-1)
BSMI
- Note:
- *: This matrix with firmware uOS1.21 or later.
- *1: Actual performance may vary depending on system configuration,network conditions, and activated applications.
- *2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
- *3: VPN throughput measurement are based on RFC 2544 (1,424-byte UDP packets); IMIX: UDP throughput based on a combination of 64 byte, 512 byte, and 1424 byte packet sizes.
- *4: Anti-Malware (with Express Mode) and IPS throughput is measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
- *5: Maximum sessions are measured using the industry standard IXIA IxLoad testing tool.
- *6: Including Gateway-to-Gateway and Client-to-Gateway.
- *7: With Zyxel service license to enable or extend the feature capacity.
- *8: Available in Q2, 2025.
