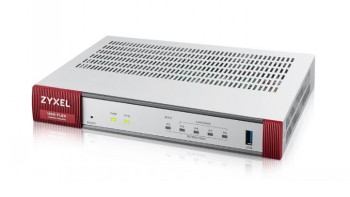

ZyXEL USG Flex 50 firewall
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.zyxel.com/global/en/products/next-gen-firewall/usg-flex-firewall-usg-flex-50
WiFi standard
-
10/100/1000 Mbps RJ-45 ports
4 x LAN/DMZ, 1 x WAN
USB 3.0 ports
1
Console port
RJ45
Rack-mountable
-
Fanless
Yes
WiFi standard
-
10/100/1000 Mbps RJ-45 ports
4 x LAN/DMZ, 1 x WAN
USB 3.0 ports
1
Console port
RJ45
Rack-mountable
-
Fanless
Yes
System Capacity & Performance*1
SPI firewall throughput (Mbps)*2
350
VPN throughput (Mbps)
90
VPN IMIX Throughput (Mbps)*3
40
IPS throughput (Mbps)*4
-
Anti-Malware throughput (Mbps)*4
-
UTM throughput (Anti-malware & IPS, Mbps)*4
-
Max. TCP concurrent sessions*5
20,000
Recommended gateway-to-gateway IPsec VPN tunnels
5
Max. concurrent IPsec VPN tunnels*6
20
Concurrent SSL VPN users
15
VLAN interface
8
SPI firewall throughput (Mbps)*2
350
VPN throughput (Mbps)
90
VPN IMIX Throughput (Mbps)*3
40
IPS throughput (Mbps)*4
-
Anti-Malware throughput (Mbps)*4
-
UTM throughput (Anti-malware & IPS, Mbps)*4
-
Max. TCP concurrent sessions*5
20,000
Recommended gateway-to-gateway IPsec VPN tunnels
5
Max. concurrent IPsec VPN tunnels*6
20
Concurrent SSL VPN users
15
VLAN interface
8
Wireless Specifications
Standard compliance
-
Wireless frequency
-
Radio
-
SSID number
-
No. of antenna
-
Antenna gain
-
Data rate
-
Standard compliance
-
Wireless frequency
-
Radio
-
SSID number
-
No. of antenna
-
Antenna gain
-
Data rate
-
Key Features
Security Service
Sandboxing*7
-
Reputation Filter*7
-
IPS*7
-
Application Patrol*7
-
Email Security*7
-
Web filtering*7
Yes
SecuReporter*7
Yes
Collaborative Detection & Response*7
-
SSL (HTTPS) Inspection
-
Geo Enforcer
Yes
2-Factor Authentication
Yes
Device Insight
Yes
Security Profile Sync*7
Yes
VPN Features
VPN
IKEv2, IPSec, SSL, L2TP/IPSec
Microsoft Azure
Yes
Amazon VPC
Yes
WLAN Management
Default Number of Managed AP
-
Recommend max. AP in 1 AP Group
-
Secure WiFi Service*7
-
Maximum No. of Tunnel-Mode AP
-
Maximum No. of Managed AP
-
Management & Connectivity
Nebula Cloud Mode
Yes
Nebula Cloud Monitoring Mode
Yes
Device HA Pro
-
Link Aggregation (LAG)
-
Hotspot Management*7
-
Ticket printer support*9/ Support Qty (max.)
-
Concurrent device logins (default/max.)*7*8
64
Security Service
Sandboxing*7
-
Reputation Filter*7
-
IPS*7
-
Application Patrol*7
-
Email Security*7
-
Web filtering*7
Yes
SecuReporter*7
Yes
Collaborative Detection & Response*7
-
SSL (HTTPS) Inspection
-
Geo Enforcer
Yes
2-Factor Authentication
Yes
Device Insight
Yes
Security Profile Sync*7
Yes
VPN Features
VPN
IKEv2, IPSec, SSL, L2TP/IPSec
Microsoft Azure
Yes
Amazon VPC
Yes
WLAN Management
Default Number of Managed AP
-
Recommend max. AP in 1 AP Group
-
Secure WiFi Service*7
-
Maximum No. of Tunnel-Mode AP
-
Maximum No. of Managed AP
-
Management & Connectivity
Nebula Cloud Mode
Yes
Nebula Cloud Monitoring Mode
Yes
Device HA Pro
-
Link Aggregation (LAG)
-
Hotspot Management*7
-
Ticket printer support*9/ Support Qty (max.)
-
Concurrent device logins (default/max.)*7*8
64
Power Requirements
Power input
12V DC, 2.0 A max.
Max. power consumption (Watt Max.)
12
Heat dissipation (BTU/hr)
40.92
Power input
12V DC, 2.0 A max.
Max. power consumption (Watt Max.)
12
Heat dissipation (BTU/hr)
40.92
Physical Specifications
Item
Dimensions (WxDxH)(mm/in.): 216 x 147.3 x 33/8.50 x 5.80 x 1.30
Weight (kg/lb.): 0.88/1.94
Packing
Dimensions (WxDxH)(mm/in.): 276 x 185 x 98/10.87 x 7.28 x 3.86
Weight (kg/lb.): 1.41/3.11
Included accessories
Power adapter
RJ-45 - RS-232 cable for console connection
Item
Dimensions (WxDxH)(mm/in.): 216 x 147.3 x 33/8.50 x 5.80 x 1.30
Weight (kg/lb.): 0.88/1.94
Packing
Dimensions (WxDxH)(mm/in.): 276 x 185 x 98/10.87 x 7.28 x 3.86
Weight (kg/lb.): 1.41/3.11
Included accessories
Power adapter
RJ-45 - RS-232 cable for console connection
Environmental Specifications
Operating
Temperature: 0°C to 40°C / 32°F to 104°F
Humidity: 10% to 90% (non-condensing)
Storage
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 10% to 90%(non-condensing)
MTBF (hr)
655,130
Acoustic noise
-
Operating
Temperature: 0°C to 40°C / 32°F to 104°F
Humidity: 10% to 90% (non-condensing)
Storage
Temperature: -40°C to 70°C/-40°F to 158°F
Humidity: 10% to 90%(non-condensing)
MTBF (hr)
655,130
Acoustic noise
-
Certifications
EMC
FCC Part 15 (Class B)
CE EMC (Class B)
RCM
BSMI
Safety
BSMI
UL
- Note:
- *: This matrix with firmware ZLD5.37 or later.
- *1: Actual performance may vary depending on system configuration, network conditions, and activated applications.
- *2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
- *3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets); IMIX: UDP throughput based on a combination of 64 byte, 512 byte and 1424 byte packet sizes.
- *4: Anti-malware (with Express Mode) and IPS throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
- *5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
- *6: Including Gateway-to-Gateway and Client-to-Gateway.
- *7: With Zyxel service license to enable or extend the feature capacity.
- *8: This is the recommend maximum number of concurrent logged-in devices.
