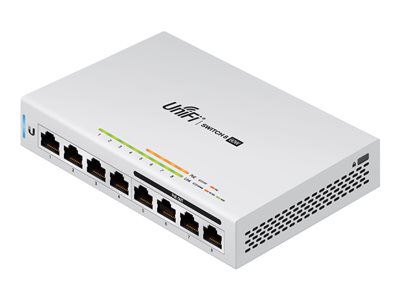

8-port managed gigabit 60W PoW switch
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://techspecs.ui.com/unifi/other/us-8-60w
| Mechanical | |
|---|---|
| Dimensions | 148 x 100 x 31 mm |
| Weight | 432 g |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports |
| PoE interface | (4) PoE (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 8 Gbps |
| Switching capacity | 16 Gbps |
| Forwarding rate | 11.9 Mpps |
| Power method | (1) 48V DC, 2A Max. |
| Power supply | External AC/DC adapter: 100-240V AC, 50/60 Hz; 48V DC, 1.25A |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 12W (Excluding PoE output.) |
| Total available PoE | 48W |
| Max. PoE wattage per port by PSE | 15.4W |
| ESD/EMP protection | Air: ± 24kV, contact: ± 24kV |
| Ambient operating temperature | -5 to 45°C |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | PoE Link/Speed/Activity |
