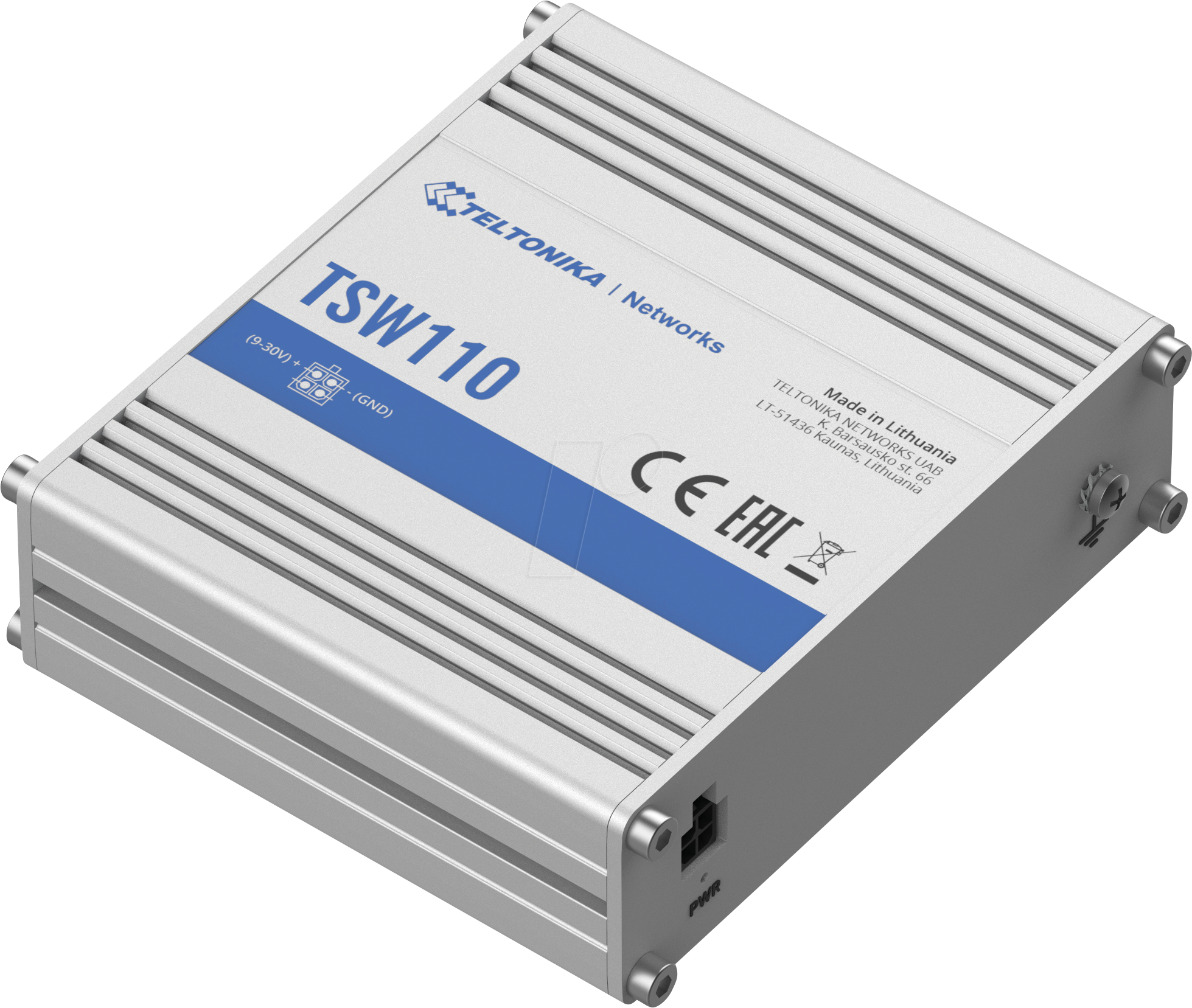

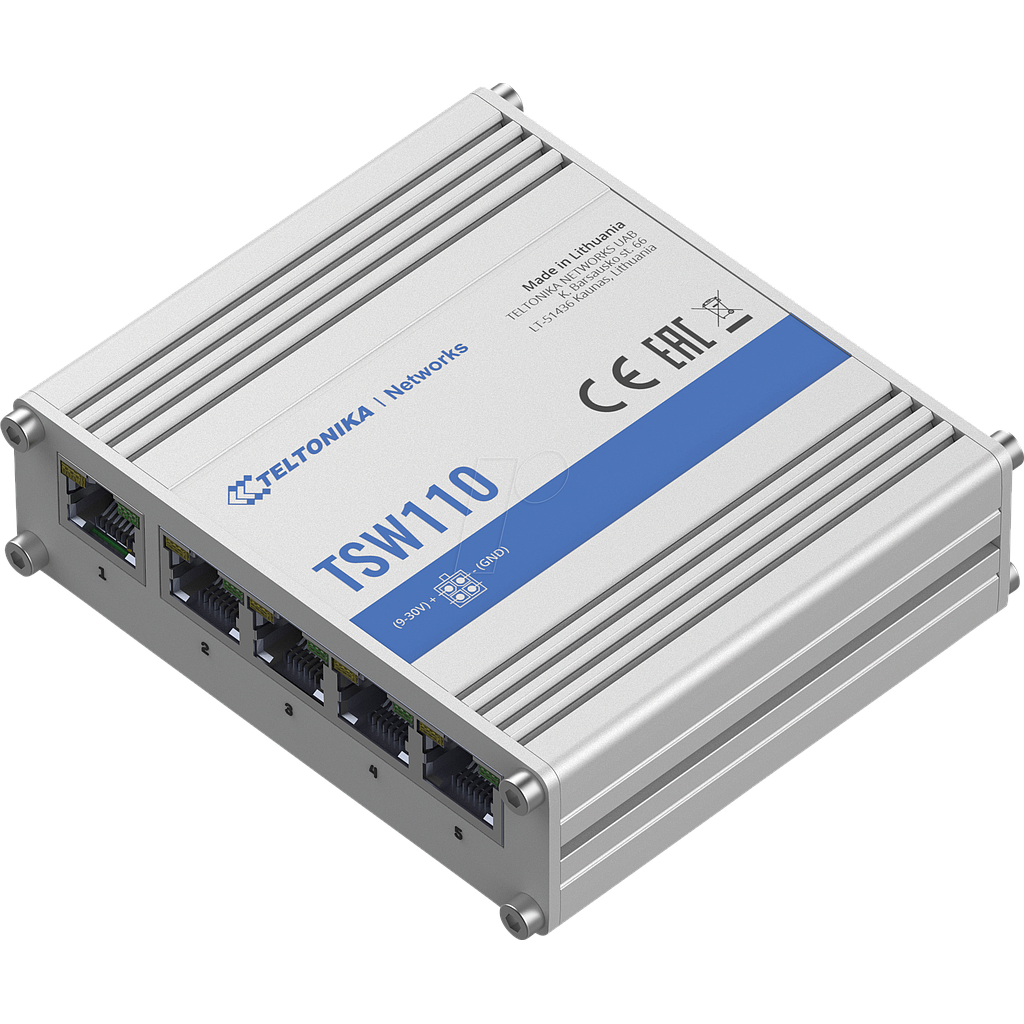

  3. Teltonika TSW110 L2 unmanaged switch 5*LAN port, 10/100/1000 Mbps passive POE-in 7-30 VDC input DIN rail or wall mounting

Teltonika TSW110 L2 unmanaged switch 5*LAN port, 10/100/1000 Mbps passive POE-in 7-30 VDC input DIN rail or wall mounting

50.00 € 50.0 EUR

50.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://teltonika-networks.com/products/ethernet-switches/tsw110

ETHERNET

  • ETH

    5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

PERFORMANCE SPECIFICATIONS

  • Bandwidth (Non-blocking)

    10 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

POWER

  • Connector

    4-pin industrial DC power socket

  • Input voltage range

    9 – 30 VDC

  • PoE (passive)

    Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC

  • Power consumption

    < 0.4 W/ < 1.8 W

PHYSICAL INTERFACES

  • Ethernet

    5 x RJ45 ports, 10/100/1000 Mbps

  • Status LEDs

    1 x Power LED, 10 x ETH status LEDs

  • Power

    1 x 4-pin power connector

  • Other


    1 x Grounding screw

PHYSICAL SPECIFICATION

  • Casing material

    Full aluminum housing

  • Dimensions (W x H x D)

    100 x 30 x 85 mm

  • Weight

    227 g

  • Mounting options

    DIN rail, wall mount, flat surface (all require additional kit)

OPERATING ENVIRONMENT

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    5% to 95% non-condensing

  • Ingress Protection Rating

    IP30
