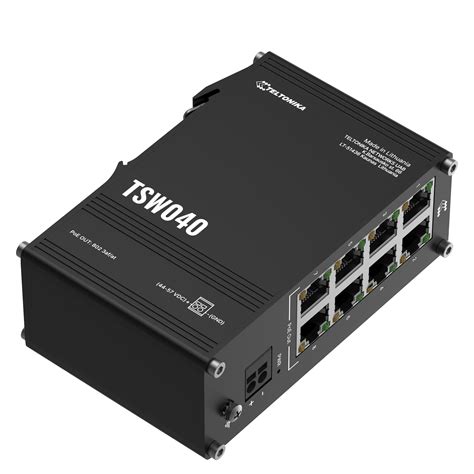

Teltonika industrial unmanaged 8-port FE PoE+ switch, 240W PoE budget, DIN rail

Teltonika industrial unmanaged 8-port FE PoE+ switch, 240W PoE budget, DIN rail

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

Ethernet

Ethernet
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

Profinet
Profinet Class A conformance (available with optional order code)

POE OUT

PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W

Performance Specifications

Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes

Power

Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
PoE-out input voltage range
44 – 57 VDC
Power consumption
Idle: 1 W / Max: 2 W / PoE Max: 246 W

Physical Interfaces

Ethernet
8 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 16 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Other

1 x Grounding screw

Physical Specification

Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
113.1 x 41.2 x 74.6 mm
Mounting options
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Weight
280 g

Operating Environment

Operating temperature
-40 °C to 75 °C
Operating humidity
5% to 95% non-condensing
Ingress Protection Rating
IP30
