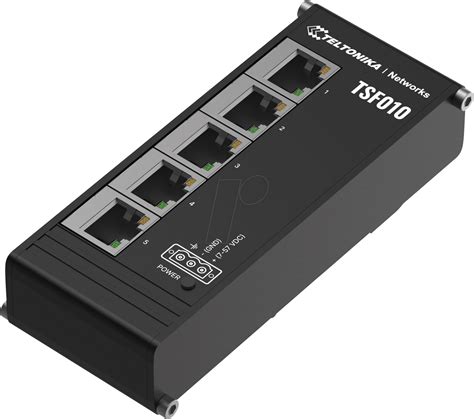

Teltonika industrial unmanaged 5-port FE switch, DIN rail

42.00 € 42.0 EUR

42.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

Ethernet

  • ETHERNET

    5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

  • IEEE 802.3 series standards

    802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

  • Profinet

    Profinet Class A conformance (available with optional order code)

Performance Specifications

  • Bandwidth (Non-blocking)

    10 Gbps

  • Packer buffer

    128 KB

  • MAC address table size

    2K entries

  • Jumbo frame support

    9216 bytes

Power

  • Connector

    3-pin industrial DC power socket

  • Input voltage range

    7 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax,

    surge protection: min 64.4V/max 71.2V breakdown voltage,

    93.6V maximum reverse voltage @4.3A maximum reverse surge current

  • Power consumption

    Idle: 1 W / Max: 1.5 W

Physical Interfaces

  • Ethernet

    5 x RJ45 ports, 10/100 Mbps

  • Status LEDs

    1 x Power LED, 10 x ETH status LEDs

  • Power

    1 x 3-pin industrial DC power socket

  • Grounding

    Grounding terminal on power connector

Physical Specification

  • Casing material

    Anodized aluminum housing and panels

  • Dimensions (W x H x D)

    113 x 28 x 50 mm

  • Weight

    142 g

  • Mounting options

    Integrated DIN rail bracket

Operating Environment

  • Operating temperature

    -40 °C to 75 °C

  • Operating humidity

    5% to 95% non-condensing

  • Ingress Protection Rating

    IP30
