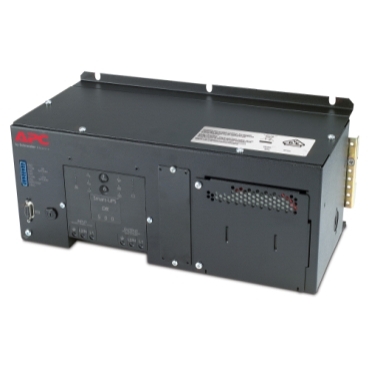

APC DIN rail - panel mount UPS SUA500PDRI-S with standard battery 500VA 230V
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.se.com/ee/et/product/download-pdf/SUA500PDRI-S?filename=Schneider+Electric_Industrial-UPS_SUA500PDRI-S.pdf
| Main Input Voltage | 230 V |
|---|---|
| Other Input Voltage | 220 V 240 V |
| Main Output Voltage | 230 V |
| Other Output Voltage | 220 V 240 V |
| Nimivõimsus, W | 325 W |
| Nimivõimsus, VA | 500 VA |
| Toote või komponendi tüüp | Uninterruptible power supply (UPS) |
| Output connector type | Hard wire 3-wire (H N + E) 1 |
| aku tüüp | Lead-acid battery |
| Varustatud seadmed | CD with software Documentation CD Paigaldusjuhend Smart UPS signalling RS-232 cable |
| Number of battery filled slots | 1 |
|---|---|
| Number of battery free slots | 1 |
| Battery recharge time | 2 h |
| Number of battery replacement quantity | 1 |
| aku kasutusiga | 3…5 aasta(d) |
| Asendusaku | APCRBC135 |
| Battery charger power | 60 W rated |
| Kõrgus | 14,8 cm |
|---|---|
| Width | 36,2 cm |
| Sügavus | 17,1 cm |
| Netokaal | 12,86 kg |
| Mounting preference | No preference |
| USB compatible | No |
| Input voltage limits | 151...302 V adjustable 160...285 V |
|---|---|
| Number of input connectors | 1 hard wire 3-juhtmeline (1P + N + E) |
| Network frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Harmooniline moonutus | Less than 5 % |
|---|---|
| Maximum configurable power in VA | 500 VA |
| Maximum configurable power in W | 325 W |
| UPS type | Line interactive |
| Efficiency | 94 % täielikud load) |
| Output frequency | 47...53 Hz for 50 Hz nominal sync to mains 57...63 Hz for 60 Hz nominal sync to mains |
| Toote sertifikaadid | CE VDE |
|---|---|
| Standardid | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
| Akustiline tase | 55 dBA |
|---|---|
| Soojuse hajumine | 90 Btu/h |
| Käitamiskõrgus | 0...10000 ft |
| Välisõhu töötemperatuur | 0…40 °C |
| Ladustamise ümbritseva õhu temperatuur | −15…45 °C |
| Säilituskõrgus | 0,0000000000…15240,0000000000 m |
| IP kaitseaste | IP20 |
| Suhteline niiskus | 0…95 % |
| Storage Relative Humidity | 0…95 % |
| Control panel | LED status display with load and battery bar-graphs and on line : on battery : replace battery : and overload indicators |
|---|---|
| Emergency power off | Yes |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 540 J |
|---|---|
| Noise suppression | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
| Pakendi tüüp 1 | PCE |
|---|---|
| Package 1 Height | 29,7 cm |
| Pakendi laius 1 | 48,1 cm |
| Pakendi pikkus 1 | 29,7 cm |
| Pakendi kaal 1 | 13,32 kg |
