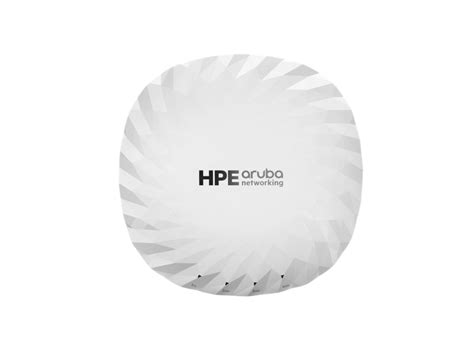

HPE Aruba networking AP‑735 (RW) tri radio 2*2 Wi‑Fi 7 internal antennas campus access point

CertificationsBluetooth SIG; Ethernet Alliance (PoE, PD device, Class 5); UL2043 plenum rating;
Wi‑Fi Alliance (WFA):
- Wi‑Fi CERTIFIED a, b, g, n, ac, 6, 7
- WPA, WPA2 and WPA3
- Enterprise with CNSA option
- Personal (SAE), Enhanced
- Open (OWE)
- WMM, WMM‑PS, W‑Fi Agile Multiband
- Passpoint (release 2)

Input voltagePoE‑PD: 48Vdc (nominal) 802.3at/bt PoE (Class 4 or higher);
DC power interface: 12 VDC(nominal, +/‑ 5%), accepts 2.1mm/5.5mm center‑positive circular plug with 9.5mm length

RegulatoryFCC/ISED; CE Marked; RED Directive 2014/53/EU; EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU; UL/IEC/EN 60950; IEC/EN 62368‑1; EN 60601‑1‑1, EN60601‑1‑2

Wi-Fi antennaIntegrated down-tilt omni‑directional antennas for 2x2 MIMO with peak antenna gain of 5.1dBi in 2.4 GHz, 5.5dBi in 5 GHz (5.2dBi in dual‑5 GHz mode) and 5.3dBi in 6 GHz (5.2dBi in dual‑6 GHz mode).

Built‑in antennas are optimized for horizontal ceiling mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30 to 40 degrees.

Connectivity, standardOptimize with HPE Aruba Networking Wireless Operating System (AOS‑10)
Cloud‑native AOS‑10 is the distributed network operating system working with HPE Aruba Networking Central that acts as the control layer for HPE Aruba Networking access points and gateways.

PortsE0, E1: Two Ethernet wired network ports (RJ‑45);
U0, U1: Two USB 2.0 host interface (Type A connector);
Kensington security slot;
Serial console interface (proprietary, micro‑B USB physical jack);
Reset button: Factory reset, LED mode control (normal/off);
Visual indicators (four multi‑color LEDs) for System (1x) and Radio (3x) status

Power consumptionMaximum (worst case) power consumption (without/with USB devices attached):
- DC powered: 20W/31W.
- PoE powered: 24W/36W.

Notes:
- This assumes that up to 10W is supplied to the attached USB device(s).
- Maximum (worst‑case) power consumption in idle mode: 8W/19W (DC) or 12W/24W (PoE).
- Maximum (worst‑case) power consumption in deep‑sleep mode: 1.5W (DC) or 2.0W (PoE).

Radio coverageThe HPE Aruba Networking 730 Series Campus Access Points are designed to take advantage of the 6 GHz band through three dedicated radios, which translates into far greater speeds, wider channels for multi‑gigabit traffic, and less interference. It delivers up to 9.3 Gbps maximum tri‑band aggregate data rate, using three 2x2 MIMO radios (2.4 GHz, 5 GHz, and 6 GHz).

Detailed product descriptionAdd Mount Kit

Differentiator735 Internal Antenna Access Points
