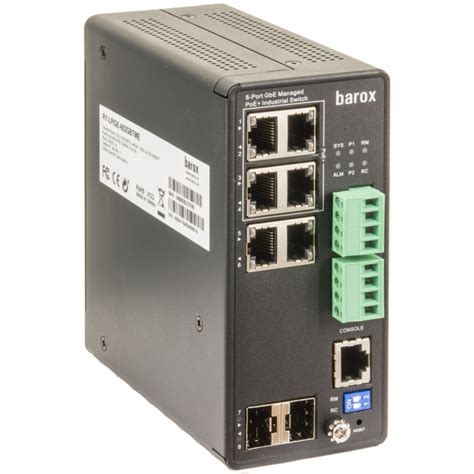

Barox industrial L2/L3 switch with management, PoE, PoE+ & DMS, 6*GE, 2*SFP
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Supply voltage | 48-57VDC, redundant power supply possible, screw terminals |
| Power consumption | Max. 15W (without PoE) |
| MTBF | 25°C: 527,730h 75°C: 100,874h |
| Operating temperature | -40°C to +75°C Rel. Humidity: 5% to 95%, non-condensing |
| Dimensions | 135x62x130mm (HxWxL) |
| Weight | 0.7kg |
| Test standards | EMC: IEC61000-4-2, 4-3, 4-4, 4-5, 4-6, 4-8 EMI: FCC Part 15 Class A, EN61000-3-2, -3-3, -6-4, EN55022, EN55011 Free fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 Railway Standard: EN0121-4:2016, EN50155:2017 Transport: NEMA TS2 Substation: IEC61850-3, IEEE1613 |
| Copper ports | 6 x 10/100/1000TX, 4 x PoE, PoE+ 802.3af/at |
| Fiber optic ports | 2 x 100/1000, SFP |
| Console port | RS232, 115.2kBit/s, 8, N, 1, RJ45 |
| Backplane | 24 Gbps |
| MAC table | 8k |
| configuration | Web server, Telnet, CLI, SNMP v1/v2/v3, TFTP, SSH, SSL, RMON, USB |
| PoE Management | |
| Port settings | Per port: Port disable/enable, Auto negotiation 10/100/1000, full & half duplex, flow control disable/enable, data rate |
| Port status display | Per port: Data rate, Duplex, Link, Flow Control, Auto Negotiation, Trunk |
| VLAN | max. 64 VLAN ID & 802.1Q VLAN & Port Based |
| Link aggregation | 802.3ad LACP, static trunk, 12 groups of 16 ports each |
| QoS | Class of Service IEEE 802.1p per port 8 priorities |
| Security | FCC Class A, CE, UL SSH v1 and v2, SSL for GUI |
| Multicast | IGMP v1, v2, v3 MVR, Multicast VLAN Registration |
| Standards | 802.3, 10Base-T Ethernet |
