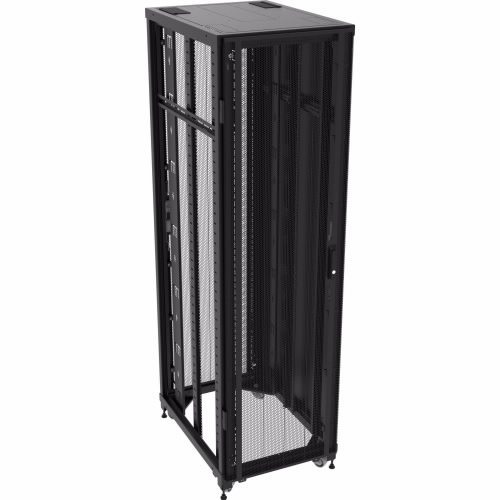

Eaton rack RA series 42U*800W*800D perf, with sides

1 335.14 € 1335.14 EUR

1 306.48 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton RA Series Rack
CATALOG NUMBER
RAA42808PSB13U
PRODUCT LENGTH/DEPTH
0.86 m
PRODUCT HEIGHT
2.093 m
PRODUCT WIDTH
0.8 m
PRODUCT WEIGHT
109.7 kg
COMPLIANCES
EIA-310-E
CERTIFICATIONS
CE
EAN
3553340593680
MODEL CODE
RA Series 42Ux800Wx800D Perf, with sides

PRODUCT SPECIFICATIONS

PROFILE RAIL TYPE
Crank
INTEGRATED FUNCTIONALITY
Demountable
SIDE PANELS
Yes
FRONT DOOR MATERIAL
Steel
NUMBER OF DOORS
2
RAL-NUMBER
9005
NUMBER OF RACK UNITS
42U
SURFACE FINISH
Powder coating
MOUNTING RAILS
EIA-310-E
REAR DOOR MATERIAL
Steel
FITTED WITH:
Backside door
Sidewall
Roof plate
Earthing
Front door
REAR DOOR LOCKING SYSTEM
Two-point
DEGREE OF PROTECTION
IP20
MOUNTING LEVEL
Front and rear
NUMBER OF HEIGHT UNITS
42
SPECIAL FEATURES
Fully equipped: includes brushed top entry, 2 x 150mm cable&PDU managers, jacking feet, castors, earth kit and baying kit
ENCLOSURE TYPE
Closed
MODULAR SPACING
482.6 mm (19 inch)
LOAD CAPACITY (DYNAMIC)
500 kg
COLOR
Black
MATERIAL
Steel
VENTILATION TYPE
Passive
LOAD CAPACITY (STATIC)
1500 kg
TYPE
Rack
CASTERS
Yes
FRONT DOOR LOCKING SYSTEM
One point
MODEL
With permanent frame
COVER/DOOR TYPE
Perforated door
