Tehnilised andmed
Main specifications
Power supply
AC 100-240 V (50/60 Hz) 1 A
Product certifications
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3i
Features
1 MB packet buffer, fanless, suitable for wall mounting, DSCP support, VoIP support, MDI/MDI-X switch, flow control, automatic scanning per device, STP support
Jumbo frame support
9216 bytes
MAC address table size
8,192 entries
capacity
MAC address entries: 8192
Performance
Throughput: 7.44 Mpps ¦ Switching capacity: 10 Gbit/s ¦ Latency (100 Mbps): 3.81 µs ¦ Latency (1 Gbps): 0.93 µs

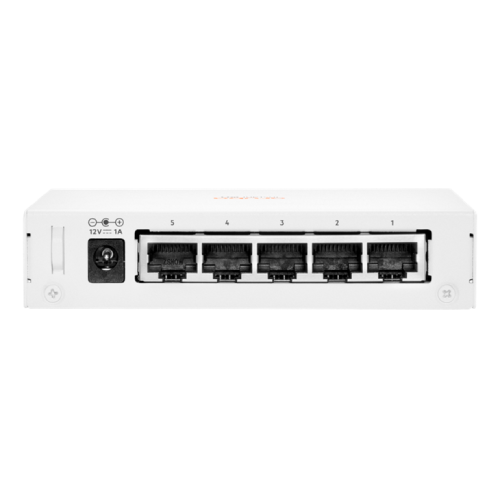

Ports
5 x 10/100/1000
Subtype
Gigabit Ethernet
Dimensions and weight
Width
11.6 cm
Weight
270 g
Height
2.6 cm
depth
9.3 cm
network
Number of connections
5
Form factor
Desktop, wall-mountable
Jumbo frame support
9216 bytes
Easy to manage
No
Remote Management Protocol
None
type
Switch
Subcategory
Network hubs and switches
Subtype
Gigabit Ethernet
R.A.M.
Installed size
2 KB
Service and Support
type
Limited lifetime warranty
Miscellaneous
Color category
White
