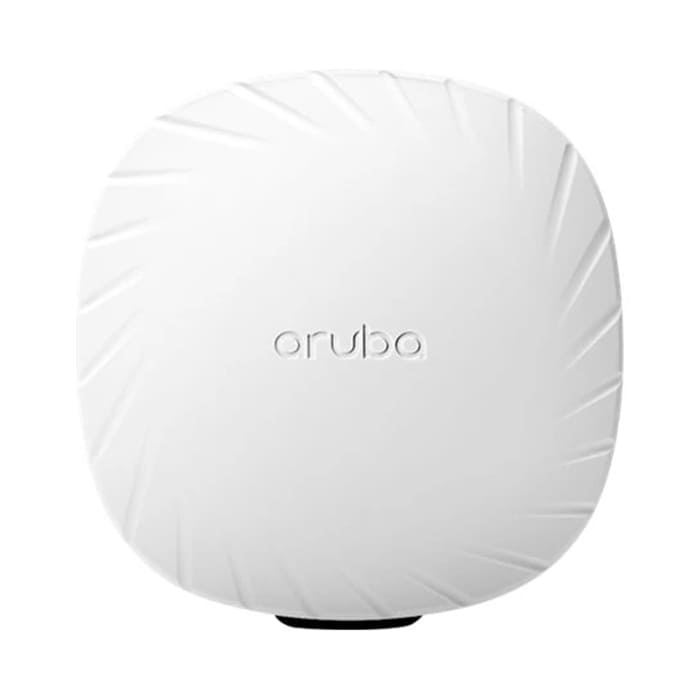

HPE Aruba AP-503-RW dual radio 2x2:2 802.11ax Wi-Fi 6 campus access point
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Radio access point |
| Ruggedized Design: | Indoor |
| Width: | 3.5 cm |
| Depth: | 14.5 cm |
| Height: | 14.5 cm |
| Weight: | 255 g |
| Networking | |
| Form Factor: | External |
| Connectivity Technology: | Wireless |
| Data Transfer Rate: | 1.49 Gbps |
| Line Coding Format: | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0, 802.11ax |
| Spread Spectrum Method: | DSSS, OFDMA |
| Frequency Band: | 2.4 GHz, 5 GHz |
| Performance: | Maximum data rate (5 GHz): 1.2 Gbps Maximum data rate (2.4 GHz): 574 Mbps |
| Capacity: | Wireless clients per Wi-Fi radio: 256 BSSIDs per radio: 16 OFDMA units: 8 |
| Status Indicators: | Power, system, status |
| Features: | 2x2:2 streams |
| Encryption Algorithm: | SSL, WPA, WPA2, WPA3 |
| Compliant Standards: | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6 |
| Aerial | |
| Antenna: | Internal |
| Antenna Qty: | 2 |
| Directivity: | Omni-directional |
| Gain Level: | 4.8 dBi |
| Internet of Things (IoT) | |
| Internet of Things (IoT) Compatible: | Yes |
| Communications Technology: | Bluetooth Low Energy (LE), Zigbee |
| Expansion / Connectivity | |
| Interfaces: | 1 x 1000Base-T - RJ-45 1 x USB 2.0 - Type A 1 x console - micro-USB |
| Miscellaneous | |
| MTBF: | 106 years |
| Compliant Standards: | UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, ETS 300 019 Class 2.3, ETS 300 019 Class 1.2 |
| Power | |
| Power Over Ethernet (PoE) Supported: | PoE Class 3 |
| Power Consumption Operational: | 4.7 watt |
| Software / System Requirements | |
| OS Required: | ArubaOS, InstantOS |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 5 - 93% (non-condensing) |
