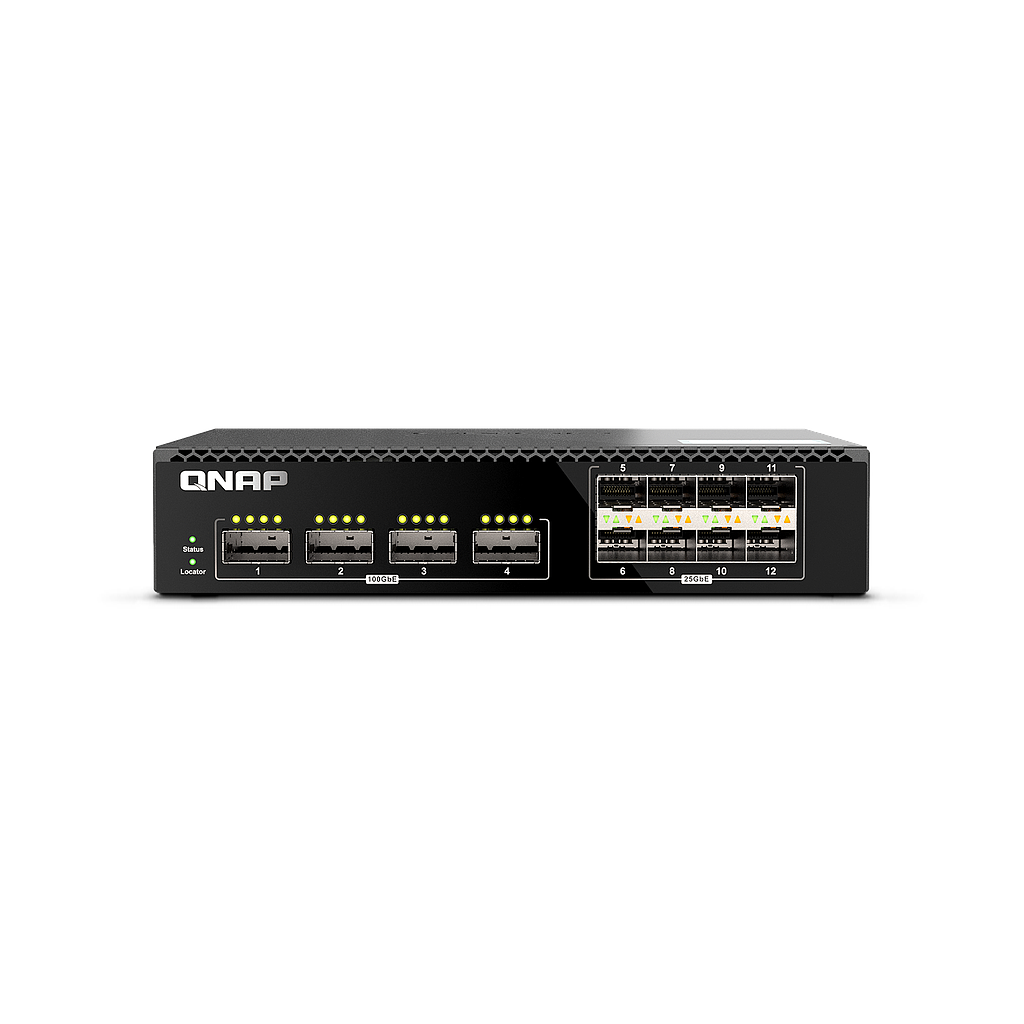

QNAP managed switch 4*100GbE ports + 8*25GbE ports, half width
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.qnap.com/en/product/qsw-m7308r-4x
| Management Type | L3 Lite Web Managed |
| Number of Ports | 12 |
| 100GbE QSFP28 | 4 |
| 25GbE SFP28 | 8 |
| Management Port | 1 x 1GbE RJ45 |
| Power Supply Description | Internal Power supply unit |
| Max. Power Consumption | 55.153W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60Hz |
| MAC Address Table | 32K |
| Total Non-Blocking Throughput | 600Gbps |
| Switching Capacity | 1200Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Fan | PWM VAPO Bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status/Locater |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 1.78 kg |
| Weight (Gross) | 2.63 kg |
| Operating Temperature | 0˚C to 40°C |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
| Warranty | 2 Years |
