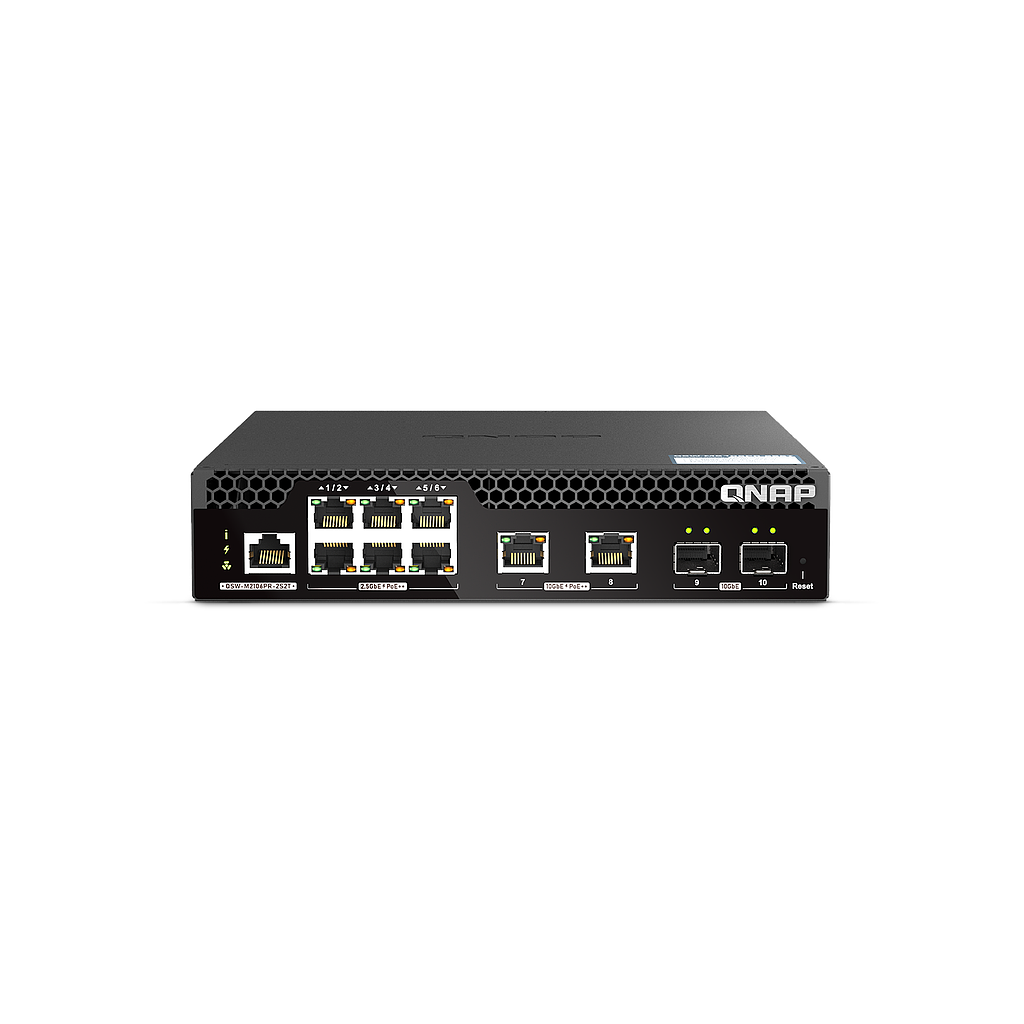

QNAP 10-port 10GbE half-width rackmount Layer 2 managed switch with 2*10GbE SFP+, 2*10NBASE-T RJ45, 6*2.5GbE RJ45 ports
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.qnap.com/en-us/product/qsw-m2106pr-2s2t
| Management Type | Web Managed |
| Number of Ports | 10 |
| 10GbE SFP+ | 2 |
| 10GbE BASE-T (RJ45) | 2 |
| 2.5GbE (RJ45) | 6 |
| Total PoE Ports | 8 |
| PoE++ PSE (802.3bt, 90W) | Port 1-8 (90W) |
| PoE Power Output | Port 1-8 (90W) |
| Total PoE Power Budget | 310W |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 350W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60 Hz |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 55Gbps |
| Switching Capacity | 110Gbps |
| Management Interface | Web |
| Console | RJ45 |
| Fan | PWM VAPO Bearing fan x 2 |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10G BASE-T IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.3af/at/bt Power-over-Ethernet (PoE) |
| Form Factor | Half-width rackmount |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Status/PoE/Fan |
| Buttons | Reset button |
| Dimensions (HxWxD) | 43.3 x 207 x 248.8 mm |
| Weight (Net) | 3.9 lbs |
| Weight (Gross) | 5.6 lbs |
| Operating Temperature | 0˚C to 40°C |
| Relative Humidity | 5~95% Non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 9K |
