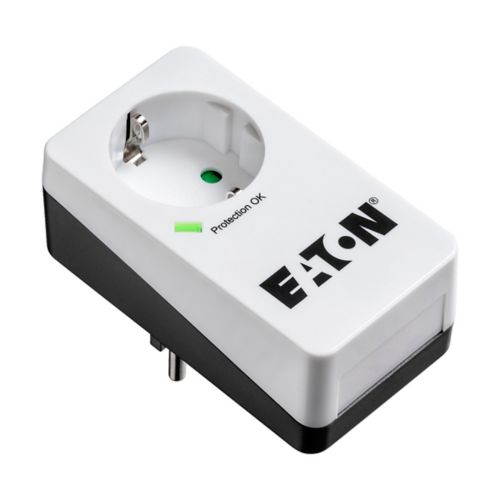

Eaton Protection Box 1 DIN, surge protector, AC 220-250V/4000W, 1*Schuko output, white
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
PRODUCT NAME
Eaton Protection Box
CATALOG NUMBER
PB1D
PRODUCT LENGTH/DEPTH
98 mm
PRODUCT HEIGHT
55 mm
PRODUCT WIDTH
72.5 mm
PRODUCT WEIGHT
0.115 kg
WARRANTY
2 year
COMPLIANCES
CE Marked
EAC
EAC
CERTIFICATIONS
IEC/EN 60884-1
IEC/EN 61643-11
IEC/EN 61643-11
EAN
3553340667152
MODEL CODE
Eaton Protection Box 1 DIN
PRODUCT SPECIFICATIONS
PHASE
Single-phase
NUMBER OF NEMA-OUTLETS
0
OPERATING TEMPERATURE - MIN
0 °C
NUMBER OF OUTLETS
1
RAL-NUMBER
9003
HOUSING SHAPE
Rectangular
SWITCHABLE
Yes
SURFACE FINISH
Matt/Matte
MOUNTING METHOD
35 mm DIN rail
AMPERAGE RATING
10A
INPUT CONNECTION
Protective contact (SCHUKO)
PACKAGE CONTENTS
- Surge suppressor device
- Quickstart guide
MATERIAL QUALITY
Other
POWER CORD LENGTH
0
NEMA DESIGNATION
None
SURGE RATING
1500 V
FITTED WITH:
Fuse
Over voltage protection
LED indication
Over voltage protection
LED indication
OPERATING TEMPERATURE - MAX
40 °C
DEGREE OF PROTECTION
IP20
CIRCUIT BREAKER
No
CORE CROSS SECTION
0 mm²
SPECIAL FEATURES
High end surge protection device implementing Schuko (DIN) socket, IEC 61643-11 compliant, including connected equipment warranty
NUMBER OF USB CONNECTIONS
0
COLOR
Black/white
RESIDUAL CURRENT CIRCUIT BREAKER
No
MATERIAL
Plastic
SURGE CURRENT
3000A
ANGLE OF ROTATED CENTRAL INSERT
Other
TYPE
Surge Suppressor
HALOGEN FREE
No
INDICATOR TYPE
Color LED
OPERATING VOLTAGE
220-250 V
TRANSPARENT
No
SURFACE PROTECTION
Other
NUMBER OF SOCKET OUTLETS WITH PROTECTIVE CONTACT
1
NOMINAL FREQUENCY
50-60 Hz
INTERNET/TEL LINE PROTECTION
No
