Tehnilised andmed
- Fanless and silent
Passive heatpipe cooling, absolutely no fan noise
Perfect for noise-sensitive environments
Fanless, dust-free and thus virtually maintenance-free - 24/7 nonstop operation
This device is approved for 24/7 permanent operation.
Requirements:
- Free circulation of air amongst the PC must be guaranteed.
- Ventilation holes must be kept clear.
- If a hard disk is installed, this must also be approved
for permanent operation by its manufacturer. - IP54 protected
The front panel is dust-protected and protected from
splashing of water according to protection class IP54. - Chassis
Colour: black
Dimensions: 393.6 x 272.5 x 39.8 mm (W x H x D)
100 mm VESA mountable
Hole for Kensington lock
Weight: 3.25 kg net, 4.5 kg gross - Operating system
This system comes without operating system.
It is compatible with:
- Windows 11 - 64-bit
- Windows 10 - 64-bit
- Linux - 64-bit - Touchscreen
Touchscreen function supports fingertip input
Capacitive Touch Panel with 10-point multi-touch
Supports touch input with gloves made of PVC, cotton, cotton/linen - max. 0.4 mm thick

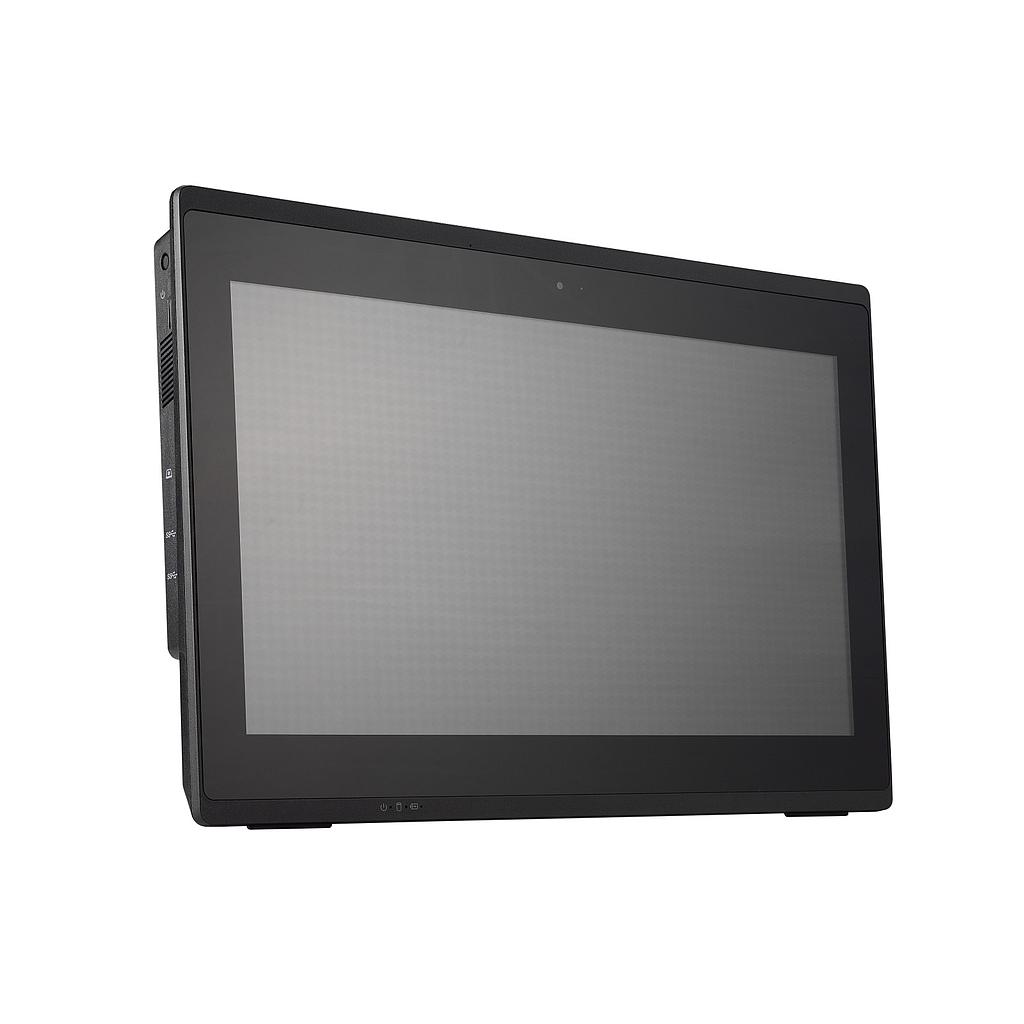

Stylus pen not supported - 39.6 cm display (15.6")
39.6 cm / 15.6" LC display, IPS technology
Ratio: 16:9 wide-screen panel
Native resolution: 1920 x 1080 = 2 Megapixel (Full HD / 1080p)
Brightness: 250 cd/sqm - Processor
Model: Intel Core i3-10110U (ULV)
System-on-a-chip architecture (SoC) with integrated memory and graphics controller
FCBGA1528 package - directly soldered onto the mainboard
Code name: Comet Lake U (10th Generation Intel Core)
Cores / Threads: 2 / 4
Base frequency: 2.1 GHz
Max. Turbo frequency: 4.1 GHz
Intel Smart Cache: 4 MB
TDP wattage: 15 W maximum
Manufacturing process: 14nm
Maximum Tjunction Temperature: 100 °C
Supports 64-bit, VT-x (EPT), VT-d, Enhanced SpeedStep, NX bit, AES-NI, SSE 4.1/4.2 - Integrated Graphics
Intel UHD Graphics 620
GPU clock frequency: 300~1000 MHz
Execution Units (EUs): 23
Supports DirectX 12, OpenGL 4.5
Supports full H264, H265 8/10 bit, VP8/9, VC-1, AVC hardware decoding
Supports Quick Sync Video and Clear Video HD technology - Up to three displays simultaneously
Two video ports support two additional independent screens:
1) HDMI 1.4b supports 1920 x 1080 @ 60 Hz or 3840 x 2160 @ 30 Hz
2) VGA / D-Sub analog video supports 1920 x 1080 @ 60 Hz
Multi-Monitoring modes as follow:
Clone mode: All displays show the same content at 1920 x 1080.
Extended mode: All displays show different content. - BIOS
AMI BIOS in 16 MByte EEPROM with SPI interface
Supports Power-on-after-power-fail / always on
Supports Wake-on-LAN (WOL) from S3, S4, S5 ACPI states
Supports hardware monitoring and Watchdog function
Supports Firmware TPM v2.0 function - Memory
2x SO-DIMM slot with 260 pins
Supports DDR4-2666 (PC4-21300) SDRAM at 1.2 V
Also compatible with DDR4-3200 memory modules
Supports Dual Channel mode
Supports a maximum of 32 GB per DIMM, maximum capacity: 64 GB
Supports two unbuffered DIMM modules (no ECC or registered) - 2.5" Hard disk drive / SSD
Supports one SATA hard disk or one SATA SSD drive in 6.35 cm / 2.5" format
The SATA 3.0 interface supports up to 600 MB/s of data transfer speed (6 Gbit/s)
Supports one drive with up to 9.5 mm in height
SATA cable pre-installed - M.2-2280 Slot
The M.2 2280 BM slot provides the following interfaces:
- PCI-Express Gen. 3.0 X4
- SATA v3.0 (max. 6 Gbps)
It supports M.2 cards with a width of 22 mm and a length of 80mm.
Supports M.2 SATA SSDs (with B+M key) and M.2 PCIe NVMe-SSDs (with M key) - Card Reader
Integrated card reader supports SD, SDHC and SDXC memory flash cards - Webcam
Integrated Full-HD 2.0 Megapixel (1920 x 1080) camera - Microphone and speakers
Front panel with integrated Electret Condenser Microphone and
2x 2 W speakers - Integrated Audio
C-Media CM6542 (USB) or Realtek ALC269 (HD Audio)
Two analog audio connectors (3.5 mm) on the bottom side:
1) Line-out (head-phones)
2) Microphone input
Digital Audio is supported via HDMI. - Wired Network
Intel 219 Ethernet Controller
Supports 10 / 100 / 1.000 MBit/s operation
Supports WAKE ON LAN (WOL) from S3, S4 modes
Supports network boot by Preboot eXecution Environment (PXE) - M.2 slot for WLAN
M.2-2230E slot supports USB2.0, PCIe X1 and CNVi
suitable for commonly available WLAN modules in M.2 format
Two internal WLAN antennas for 2.4/5 GHz are already pre-installed.
The chassis has two 7-mm perforations for optional external antennas. - Front LEDs
Power LED (blue)
Hard disk LED (orange)
Battery LED (red) - reserved, no function - Connectors left side
Power button
2x USB 3.2 Gen. 1 (max. 5 Gb/s, blue)
SD card reader
Hole with Clear CMOS button - Connectors right side
Optional: 2x COM/serial (D-Sub, RS232)

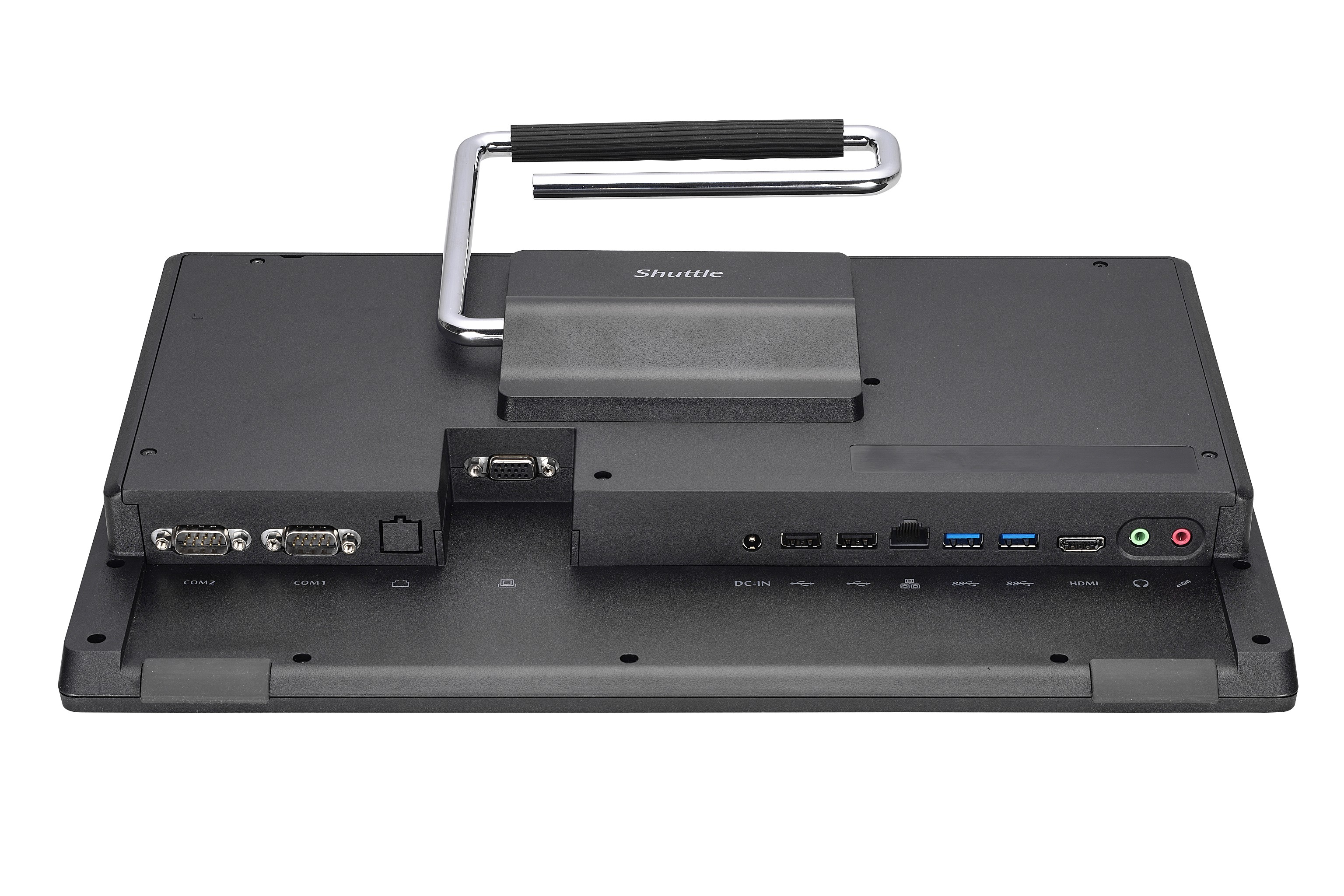

Hole for the Kensington Lock - Connectors bottom side
HDMI 1.4b (supports digital video and digital audio)
VGA connector (D-Sub 15 pol., analog video)
2x USB 3.2 Gen. 1 ( max. 5 Gb/s, blue)
2x USB 2.0
2x COM/serial (D-Sub, RS232)
Gigabit Network (LAN, RJ45)
Audio Line-out / headphones (3.5 mm jack)
Microphone input (3.5 mm jack)
DC input for external power adapter (5.5 / 2.5 mm)
2x Perforation for optional WLAN/LTE antennas (diameter: 7 mm) - Connectors onboard
Internal USB 2.0 type A connector for a USB stick
Serial ATA (6 Gbps) data/power combo connector
3x USB 2.0 header (all occupied)
Microphone connector (2-pin, occupied)
Speakers connector (4-pin, occupied)
eDP connector (Embedded DisplayPort) - occupied by the display
LPC connector (occupied)
I2C connector
CMOS battery connector (2-pin occupied) - Opening holes for optional antennas
The chassis features two perforated 7 mm holes
for optional antennas mounted with an (RP-)SMA connector
for wireless network such as WLAN or WWAN (e.g. LTE) - Power adapter
External 65 W power adapter (fanless)
Input: 100~240 V AC, 50/60 Hz, max. 1.6 A
Output: 19 V DC, max. 3.42 A, max. 65 W - DC Input connector
DC Input Connector: 5.5 / 2.5 mm (outer/inner diameter)
The DC-input of the computer supports an external
power source with either 12V ±5 % or 19V ± 5%. - Included Accessories
Quick Guide
Driver DVD
2x bracket to install a 2.5" drive
External Power Adapter (65W / 19V)
Power cord (2 pins)
Screws (2x for M.2 slots, 8x for 2.5" bay) - Optional Accessories
1) COM port adapter PCP21 or 2x PCP11
provides two more serial COM ports on the right side
2) M.2 WLAN module with two external Antennas:
WLN-M (802.11ac) or WLN-M1 (802.11ax)
Two internal WLAN antennas are already pre-installed and can be used instead of the external antennas. - Environmental criteria
Operating temperature: 0~40 °C
Humidity: 10~90 % - Certification and Compliance
- EMI: CE, UKCA, FCC, RCM, VCCI, BSMI
- Safety: CB 60950/62368, cTUVus, BSMI
- Other compliances: RoHS, ErP Lot3, Energy Star
This device is classed as a technical information equipment (ITE) in class B and is intended for use in living room and office. The CE-mark approves the conformity by the EU directives:
(1) 2014/30/EU relating to electromagnetic compatibility (EMC),
(2) 2014/35/EU relating to Electrical Equipment designed for use within certain voltage limits (LVD),
(3) 2009/125/EU relating to ecodesign requirements for energy-related products (ErP)
