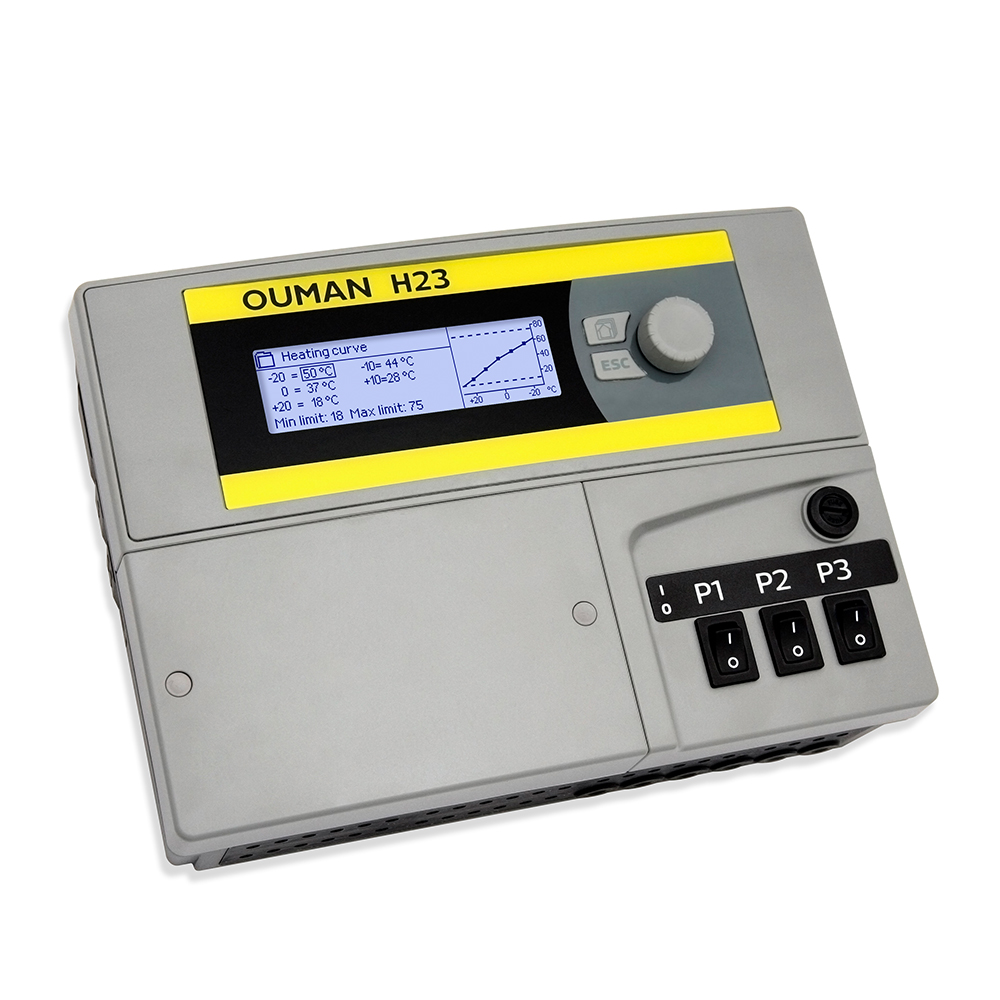

Ouman H23 heating controller for three circuits (2 heating circuits, 1 domestic hot water circuit)

Ingliskeelne kasutusjuhend.

Dimensions: width 230 mm, height 160 mm, depth 60 mm
Weight: 1.3 kg
Protection class: IP 41
Operating temperature: 0 ºC…+50 ºC
Storing temperature: -20 ºC…+70 ºC
Power supply: L (91), N (92-94)
– Operating voltage 230 Vac / 200 mA
– The internal 24 V power source, total load capacity of max. 1 A/23 VA
– Front fuse max 10A
Measurements inputs:
– Sensor measurements (11-19) Measurement channel accuracy:
– NTC10-element: ±0,15 ºC between -50 ºC…+100 ºC
Also sensor tolerances and the effect of cables must be considered when calculating total accuracy. Measurement M1 can be connected also from outside of the casing by a plug-connector.
– Digital inputs (27, 28): Contact voltage 15 Vdc, switching current 5 mA. Transfer resistance max. 250 Ω (closed), min. 350 Ω (open).
Analog outputs (66, 68, 70): Output voltage range 0…10 V. Output current max. 10 mA / output
15 VDC output (1): 15 VDC output maximum load 100 mA
24 VAC output (51): Total current of 24 VAC output and triac-outputs max. 1A.
Pump control contacts (81-89): Contacts for three circulation pump. Pumps are controlled by a switches on the top of the H23 device. Relay max. load 3A.
Protective earth terminal (73-78): Protective earth terminal block for 230V devices. Control circuit fuse max. 10A
Control outputs (51): 24 VAC -control output
– Triac (55…60): Total current of triac-outputs and 24 VAC output max. 1A.
Data transfer connections
– RS-485-bus A (3) and B (6): Unisolated, supported protocols Modbus-RTU
Options
– OULINK-ETH OULINK ETH adapter provides Modbus TCP / IP interface for H23 device.
– GSMMOD: By connecting the GSM modem to the H23 , you can communicate with the text messages to device and receive alarms to GSM phone.

APPROVALS
– EMC-directive: 2004/108/EC, 93/68/EEC
– Interference tolerance: EN 61000-6-1
– Interference emissions: EN 61000-6-3
