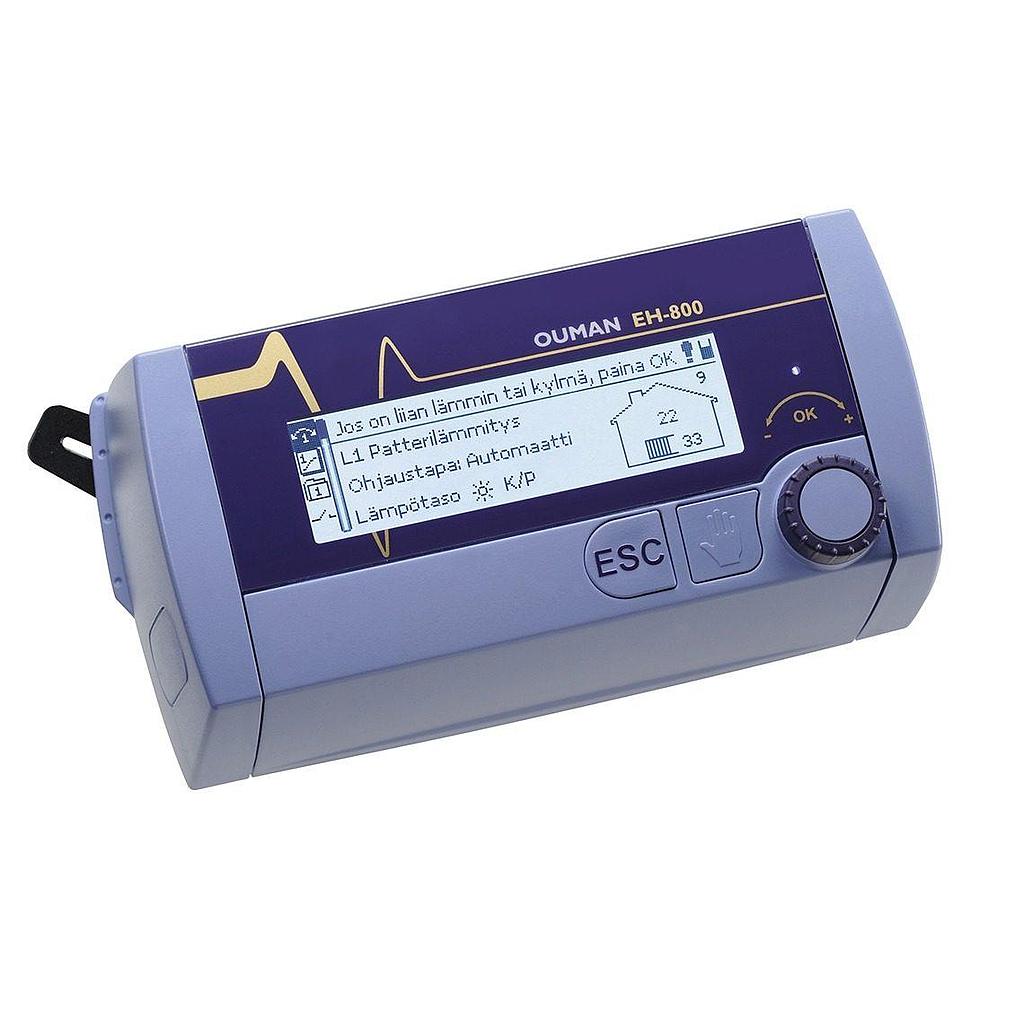

Ouman EH-800 intelligent heating controller for detached houses, est
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
A heating controller with one heating circuit, which is also possible to expand to have two heating circuits or alternatively to control two heating sources simultaneously. The controller can be used with a home network (not EH-800B). It is also possible to connect it to GSM.
Home comfort improves when room temperatures remain even despite changeable weather conditions. Energy is conserved when water of precisely the right temperature, sufficient to maintain the desired room temperature, is released to the heating network. An intelligent controller is also increasingly better in accounting for differences between heating methods and structures.
User-friendliness starts from the sizeable and clear display, which allows you to see all of the relevant information in one glance. The recent history of measurements can also be viewed as a graphic presentation; you can check the realisation of the heating reduction or what the night-time temperature was in the morning.
Controller
– Controller and actuator in one
Actuator
– Actuator’s torque is 10 Nm
– Swing angle 90°
– Speed 150 s
Operating voltage
– 24 VDC, 3.5 W cord with plug (included)
Casing
– PC / ABS, IP 42
Mounting
– Mounting kit for commonly used boiler and 3 way control valves
Measurements (mm)
– Width 172, height 91, depth 73
Weight
– 900 g
Operating temperature
– 0…50 °C (storing -20…+70 °C)
Supply water sensor
– Preconnected surface sensor, fixed cord with plug (1,5 m)
Outdoor temperature sensor
– Cord with plug 15 m (included)
Measurement 3 and 4
– Use connecting cable (included) USB-device:
– PC:s connection e.g., program updating
Ethernet 10/100 (not EH-800B):
– Intranet or internet
RJ45-1 (not EH-800B)
– Battery back-up (connection via the external unit – optional equipment)
RJ45-2:
– RS-232 connector for a GSM modem Connection occurs using the EXU-800 (optional eguipment):
– 1 pc Universal input
– 1 pc Digital input
– 1 pc Digital output
– 1 pc Analog output
– GSM modem connection
Warranty 3 years
