Tehnilised andmed
Features
| UPS topology | Line-Interactive |
| Output power capacity | 1000 VA |
| Output power | 650 W |
| Waveform | Sine |
| Input operation voltage (min) | 145 V |
| Input operation voltage (max) | 290 V |
| Input frequency | 45 - 65 Hz |
| Output operation voltage (max) | 195 V |
| Output frequency | 50 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Power protection features | Battery dischargeInput fuseOver powerOvervoltage protectionShort circuit |
| Auto-restart | Yes |
| Response time | 2 - 6 ms |
| Noise level | 45 dB |
| Output operation voltage (min) | 255 V |
| Output voltage | 230 V |

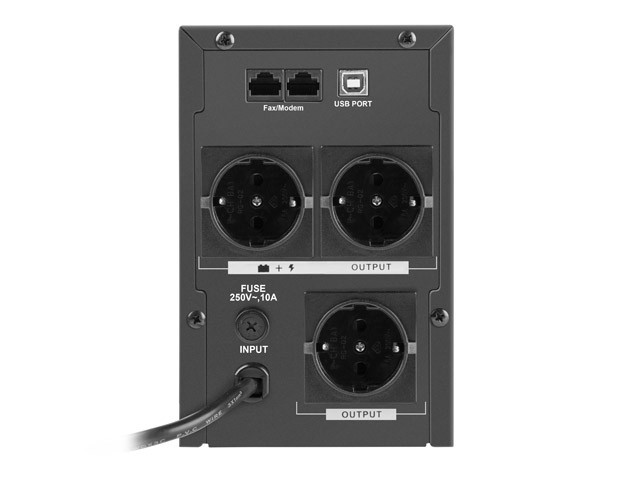

Ports & interfaces
| USB port | Yes |
| AC outlet types | Type F |
| AC outlets quantity | 3 AC outlet(s) |
| RJ-45 ports quantity | 2 |
Battery
| Battery technology | Maintenance Free, Lead Acid (AGM) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Cold start | Yes |
| Typical backup time at full load | 3 min |
| Typical backup time at half load | 20 min |
| Battery recharge time (90%) | 6 h |
| Automatic battery test | Yes |
Design
| Form factor | Tower |
| Product colour | Black |
| Built-in display | LCD |
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Width | 120 mm |
| Depth | 350 mm |
| Height | 188 mm |
| Weight | 9.5 kg |
Packaging content
| USB cable included | No |
