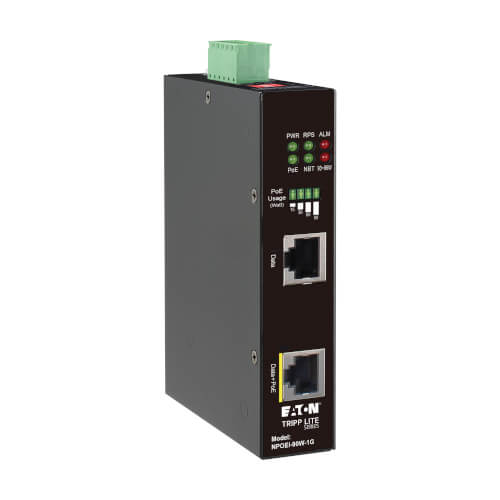

Industrial Gigabit Ethernet PoE injector, 90W PoE++, 802.3bt, Midspan, -40℃ to +75℃, IP30 housing, Dual 24-57VDC , DIN rail, 1 Port
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://assets.tripplite.com/product-pdfs/en/npoei90w1g.pdf
OVERVIEW
| UPC Code | 037332265920 |
| Product Type | Injector |
| Technology | Cat5/5e; Cat6; Cat6a |
INPUT
| Voltage Compatibility (VDC) | 24-57 |
| Input Frequency | 50/60 Hz |
CONNECTIONS
| Number of Ports | 1 |
| Side A - Connector 1 | RJ45 (FEMALE) |
| Side B - Connector 1 | RJ45 (FEMALE) |
| PoE Type | Type 3 PoE++/UPoE (60W, IEEE 802.3bt) |
USER INTERFACE, ALERTS & CONTROLS
| LED Indicators | PWR (Green) - Power; RPS (Green) - Redundant Power; ALM (Red) - Primary/Secondary power lost, PoE overload; PoE (Green) - PoE in use; NBT (Green) - Detection Mode is enabled; 93-96W (Red) - Overload; PoE Usage (Green) Injector PoE power range |
PHYSICAL
| Primary Form Factor | DIN-Rail; Rackmount; Wall-mount |
| Color | Black |
| Unit Dimensions (hwd / cm) | 11.6 x 2.5 x 10.0 |
ENVIRONMENTAL
| Operating Temperature Range | -40° to 75°C |
| Storage Temperature Range | -40° to 85°C |
| Relative Humidity | 5% to 95% RH, Non-Condensing |
COMMUNICATIONS
| Network Compatibility | 1 Gbps (Gigabit) |
| IEEE Standards Supported | 802.3af; 802.3at; 802.3bt |
STANDARDS & COMPLIANCE
| Product Compliance | RoHS; CE (Europe); REACH; FCC (USA); Trade Agreements Act (TAA) |
