Noctua NF-A12x25 PWM, premium quiet fan, 4-pin, 120mm, brown
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://noctua.at/en/nf-a12x25-pwm
FAN Specification
Size
120x120x25 mm
Mounting hole spacing
105x105 mm
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
Material
Rotational speed (+/- 10%)
2000 RPM
Rotational speed with L.N.A. (+/- 10%)
1700 RPM
Min. rotational speed @ 20% PWM (+/-20%)
<div class="col data" data-th="Min. rotational speed @ 20% PWM (+/-20%)" style="width: 325.01px; display: inline-block; padding: 4px 0px; font-size: 12px; line-height: 18px;">450 RPM84,5 m³/h
Acoustical noise
22,6 dB(A)
Acoustical noise with L.N.A.
18,8 dB(A)
Static pressure
2,34 mm H₂O
Static pressure with L.N.A.
1,65 mm H₂O
Input power (typical)
1,2 W
Input power (max.)
1,68 W
Input current (typical)
0,1 A
Max. input current
0,14 A
Operating voltage
12 V
MTTF
> 150.000 h

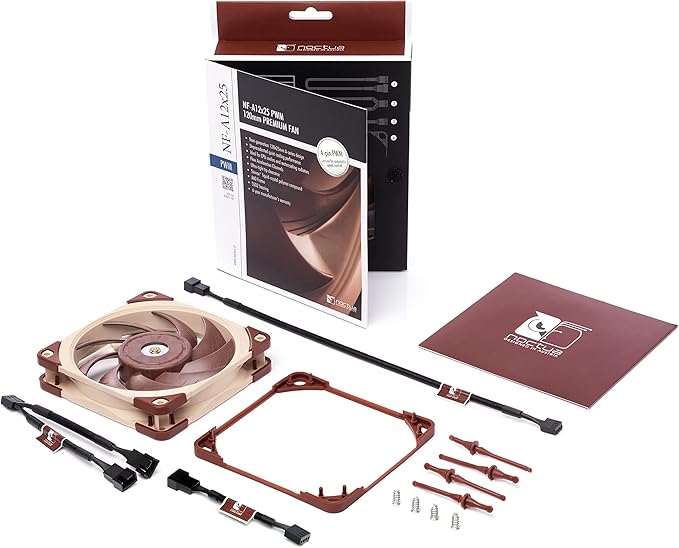

Scope of delivery
- Low-Noise Adaptor (L.N.A.)
- 4-pin y-cable
- 30cm extension cable
- NA-AV2 anti-vibration mounts
- Anti-vibration gasket for water cooling radiators
- Fan screws
