Tehnilised andmed
| General | |

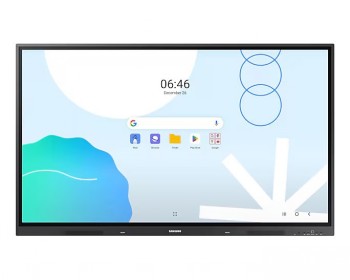

| Product Type: | LED-backlit LCD flat panel display |
| Power Consumption Operational: | 486 Watt |
| Diagonal Class: | 86" |
| Commercial Use: | Yes - education / business |
| Combined With: | Built-in interactive whiteboard, touchscreen (multi touch) |
| Series: | WAD Series |
| Platform: | Android |
| Operating System: | Android OS 13 |
| TV Tuner: | No tuner |
| TV Tuner Presence: | No |
| Video Interface: | HDMI, USB-C |
| HDMI Ports Qty: | 3 ports |
| Picture Enhancements: | 72% Colour Gamut |
| Dimensions: | Without stand |
| Width: | 195.7 cm |
| Depth: | 9.9 cm |
| Height: | 116 cm |
| Weight: | 56.5 kg |
| Enclosure Colour: | Space grey |
| Display | |
| LCD Display Technology: | IPS |
| Pixel Pitch: | 0.4296 mm |
| Resolution: | 3840 x 2160 |
| Display Format: | 4K UHD (2160p) |
| Image Aspect Ratio: | 16:9 |
| Frame Rate & Enhancement Technology: | 60 Hz Refresh Rate |
| LCD Backlight Technology: | LED backlight |
| Coating: | 25% haze |
| Dynamic Contrast Ratio: | 1200:1 |
| Brightness: | 400 cd/m² |
| Viewing Angle: | 178 degrees |
| Viewing Angle (Vertical): | 178 degrees |
| Touchpoints Qty: | 40 |
| Response Time: | 8 ms |
| Commercial Features: | OPS Slot |
| Operation Hours / Days: | 12 / 7 |
| Features: | Picture in picture (no tuner) |
| Stands & Mounts | |
| Flat Panel Mount Interface: | 800 x 600 mm |
| VESA Compatibility: | Yes |
| Media Player | |
| USB Port: | Yes |
| USB Ports Qty: | 5 |
| Configuration: | 64 GB |
| Network & Internet Multimedia | |
| Functionality: | WEB browsing |
| Connectivity: | Wi-Fi, LAN, Bluetooth |
| LAN Protocol: | Ethernet |
| Connect & Share: | Screen Share |
| Application Store: | Google Play |
| Connections | |
| Connector Type: | 3 x HDMI input RS-232 input RS-232 output Audio input USB 2.0 4 x USB 3.0 LAN input Audio output LAN output IR receiver USB-C with 65W Power Delivery HDMI output |
| Miscellaneous | |
| Included Accessories: | 2 touch double-sided pens |
| Compliant Standards: | Google EDLA, TUV low blue light, TUV flicker free, HDCP 2.2, EMC, Part 15 Subpart B Class A, KS C 9832, KS C 9835, EN 55032:2015 + A11:2020, EN 55035:2017/A11:2020, EN 61000-3-2:2019/A1:2021, EN 61000-3-3:2013 + A1:2019 + A2:2021, EN 61000-3-3:2013/A1:2019/A2:2021, J55032, VCCI-CISPR 32, JIS C 61000-3-2, GB 9254-2021, GB 17625.1-2012, CNS13438:2006 Class A, AS/NZS, CISPR 32, EN 55032:2015/A11:2020/A1:2020, EN 55035:2017+A11:2020, IEC 62368-1 Third Edition, IEC 60950-1, UL 62368-1 ThirdEdition, GB 4943.1-2022 PSB, IEC 62368-1, NOM-019, K 62368, IRAM, EAC, INMETRO, SASO, BSMI, IS13252 |
| Power | |
| Power Device: | Power supply |
| Input Voltage: | AC 100-240 V (50/60 Hz) |
| Power Consumption Stand by: | 0.5 Watt |
| Dimensions & Weight (Shipping) | |
| Width (Shipping): | 211 cm |
| Depth (Shipping): | 22.5 cm |
| Height (Shipping): | 128.3 cm |
| Weight (Shipping): | 74.3 kg |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 10 - 90% |
