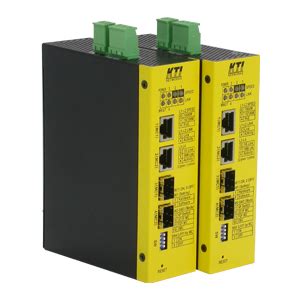

KTI industrial managed multi-function GbE media converter with PoE+ support
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Standard | IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3at, 802.1x, 802.1w, 802.1D, 802.1Q |
| Network Ports | 2 10/100/1000Mbps Gigabit copper ports 2 1G/100Mbps SFP slots |
| Copper Port | Shielded RJ-45, 10/100/1000Mbps, auto-negotiation, auto-MDI/MDI-X |
| Mini-GBIC SFP | SFP connector, Interface: 1000BASE-X and 100BASE-FX support |
| Network Cables | 10/100/1000Mbps copper: Cat.5, 5e UTP or higher up to 100m SFP fiber: 62.5/125µm, 50/125µm MM fiber, 9/125µm SM fiber |
| Power over Ethernet | IEEE 802.3at compliant (High power PoE) 30W max. at port output for Cat.5 distance of 100 meters |
| MAC Addresses | 8K |
| LED Indication | Per unit: Power, Management status Per port: Speed, link/activity status Per SFP: Speed/link/activity status Per PoE port: PoE status |
| Relay Output | Alarm: power failure, configured port link fault Interface: 3 terminal contacts (30VDC/1A max. or 120VAC/0.5A max.) |
| DC Power Input | Screwed terminal block: DC +/- contacts Operating voltage range: +12 ~ +57VDC Voltage for PoE support: +45 ~ +57VDC Polarity reversal protection |
| Power Consumption | 6W@56V max. (Full load with no PoE support) 66W@56V max. (Full load with 2 PoE+ max. output) |
| Housing | Enclosed metal with no fan |
| Dimension | 42 x 106 x 140 mm (WxDxH) |
| Mounting Support | DIN-Rail, Panel Mounting (Optional) |
| Environment | Operating Temperature: -40°C ~ 75°C Storage Temperature: -40°C ~ 85°C Relative Humidity: 5% ~ 95% non-condensing |
| Approval | FCC Class A, VCCI Class A, CE mark Class A, TUV EN 60950-1 safety EN 61000-6-4 emission, EN61000-3-2, EN61000-3-3, EN61000-6-2 Immunity for industrial environment, IEC 60068-2-64 Vibration, IEC 60068-2-27 shock |
