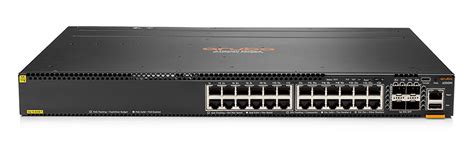

HPE Aruba CX 6300M 24-port L3 manageable Ethernet PoE switch, 4*SFP56 slots, 1U rm

Power consumptionWith JL086A PSU:
Idle: 60W
100% Traffic Rate: 76W
With JL087A PSU:
Idle: 59W
100% Traffic Rate: 74W
With JL670A PSU:
Idle: 62W
100% Traffic Rate: 81W

Input voltageJL670A PSU:
110V‑120V/208V‑240V
JL086A PSU: 100V‑240V
JL087A PSU: 110V‑240V

Ports24-port 10/100/1000 BaseT PoE+ ports supporting up to 30W per port;

4x 1G/10G/25G/50G* SFP ports;

Supports PoE Standards IEEE 802.3af, 802.3at;

1x USB‑C Console Port;
1x OOBM port;
1x USB Type A Host port

Notes:
*50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Latency1Gbps: 2.28μSec,
10Gbps: 1.46μSec,
25Gbps: 1.90μSec,
50Gbps: 3.49μSec

Switching capacity448 Gbps

Stacking capabilitiesUp to 10 switches per stack

NOTE: CX 6300L switches only stack with other CX 6300L switches

Throughput334 Mpps

Memory and processorQuad Core Arm Cortex™ A72 @ 1.8GHz
8 GB DDR4, 32 GB eMMC

8 MB, 16 MB, or 32 MB Shared Packet Buffer Memory, depending on model and configuration

PoE capabilityMax PoE Power: 720W

Management featuresHPE Aruba Networking Central Network Management
HPE Aruba Networking Management Software (AirWave)
HPE Aruba Networking Switch Multi-Edit Software
Command-line interface
SNMP v2c/v3
RMON

Detailed product descriptionCX 6300M 24-port 1 GbE Class 4 PoE and 4-port SFP56 switch
Must select PSU Min1 / Max2 (680W JL086A,1050W JL087A, 1600W JL670A, 1050W JL758A) Mix OK
Includes 1 fan tray (JL669B), with 1 open slot with blank cover
Min=0 \ Max = 4 SFP/SFP+/SFP28/SFP56 1/10/25/50 G Transceiver
1U - Height

Weight5.00 kg

Dimensions4.4 x 44.2 x 38.5 cm
