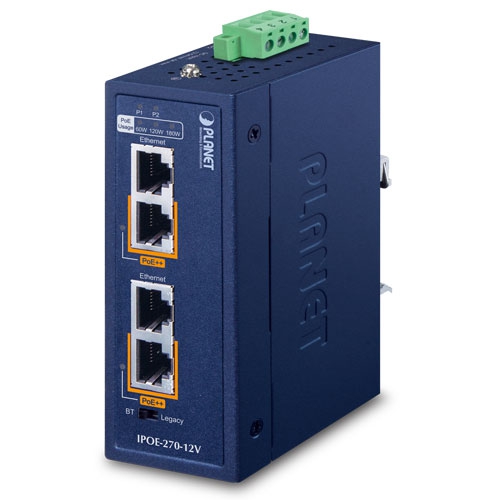

Planet industrial 2-port multi-Gigabit 802.3bt PoE++ injector hub

275.00 € 275.0 EUR

275.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.planet.com.tw/en/product/ipoe-270_ipoe-270-12v-v2

Copper Ports2-pair 10/100/1G/2.5G/5GBASE-T RJ45 :
 Data input port 1 and PoE output port 1
 Data input port 2 and PoE output port 2ConnectorRemovable 4-pin terminal block
Pins 1 and 2 for Power 1; Pins 3 and 4 for Power 2LED IndicatorSystem:
 Power 1 (Green)
 Power 2 (Green)
PoE Usage:
 60W/120W/180W (Amber)
802.3bt PoE++ Port:
 PoE-in-use x 1(Green: bt, Amber: at)Network CableTwisted-pair cable up to 100 meters (328ft)
10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6
100BASE-TX: 4-pair UTP Cat. 5, 5e, 6
1000BASE-T: 4-pair UTP Cat. 5e, 6
2.5G/5GBASE-T: 4-pair UTP Cat.6, 6A,7Data Rate10/100/1000/2500/5000MbpsPower RequirementsIPOE-27048~54V DC, redundant power with reverse polarity protection
IPOE-270-12V12~54V DC, redundant power with reverse polarity protectionPower Consumption (Ethernet Full Loading)IPOE-270
System ON without loading
48V DC: 1.4 watts/4.7BTU
52V DC: 1.5 watts/5.1BTU
54V DC: 1.6 watts/5.4BTU
Full loading with PoE
48V DC (120W PoE budget):
128 watts/436BTU
52V DC (180W PoE budget):
177 watts/603BTU
54V DC (180W PoE budget):
187 watts/638BTU

IPOE-270-12V
System ON without loading
12V DC: 1.8 watts/6.1BTU
24V DC: 2.4 watts/8.1BTU
48V DC: 2.4 watts/8.1BTU
52V DC: 2.6 watts/8.8BTU
54V DC: 2.1 watts/7.1BTU
Full loading with PoE
12V DC (60W PoE budget):
60 watts/204BTU
24V DC (120W PoE budget):
124 watts/423BTU
48V DC (120W PoE budget):
120 watts/409BTU
52V DC (180W PoE budget):
188 watts/641BTU
54V DC (180W PoE budget):
188 watts/641BTUDimensions41 x 70 x 115 mm (W x D x H)WeightIPOE-270:284g
IPOE-270-12V:387gEnclosureIP30 metal caseInstallationDIN-rail kit and wall-mount kitESD Protection6KVSurge Protection6KVPower over EthernetPoE StandardIEEE 802.3bt PoE++, 4-pair PSE
Compatible with IEEE 802.3at PoE+ PSEPoE Power Supply TypeEnd-span + Mid-spanPower Pin AssignmentEnd-span: 1/2 (-), 3/6 (+); Mid-span: 4/5 (+), 7/8 (-)Per PoE Port Output Power95 wattsPoE Power Budget (max.)IPOE-270:
120W@48V DC input
180W@52V/54V DC input

IPOE-270-12V:
60W@12V DC input
120W@24V/48V DC input
180W@52V/54V DC inputPoE DIP SwitchDIP switch for the following operation modes
BT mode (Default)
Legacy and Force modesNumber of devices that can be powered2Standards ConformanceRegulatory ComplianceFCC Part 15 Class A, CEStability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)Standards ComplianceIEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3bz 2.5G/5GBASE-T
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus PlusEnvironmentTemperatureOperating: -40~75 degrees C
Storage: -40~75 degrees CHumidityOperating: 5~90% (non-condensing)
Storage: 5~90% (non-condensing)
