Tehnilised andmed
| General | |

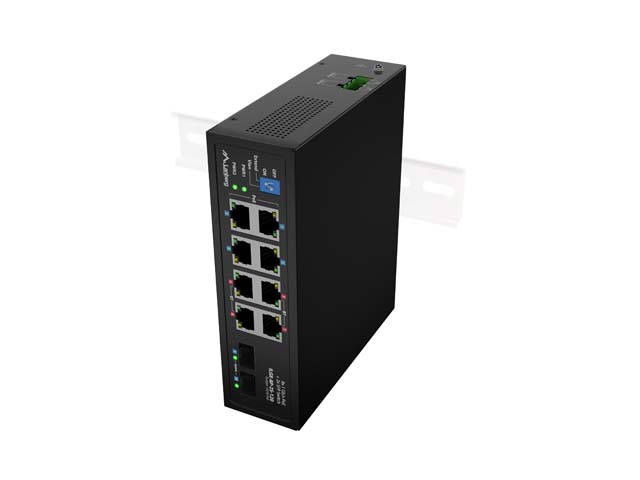

| Device Type: | Switch - 8 ports - unmanaged |
| Enclosure Type: | DIN rail mountable, rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 4 x 10/100/1000 (PoE+) + 4 x 10/100/1000 (PoE++) + 2 x 1000Base-X SFP |
| Power Over Ethernet (PoE): | PoE++ |
| PoE Budget: | 120 W |
| Performance: | Bandwidth: 20 Gbps |
| MAC Address Table Size: | 4K entries |
| Features: | Passive cooling, 6KV Surge protection, flow control, auto-uplink (auto MDI/MDI-X), extend mode, MAC address auto-learning, VLAN support, metal housing, store and forward |
| Compliant Standards: | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Status Indicators: | Link/activity, power 1, power 2, uplink |
| Expansion / Connectivity | |
| Interfaces: | 4 x 1000Base-T RJ-45 PoE+ 4 x 1000Base-T RJ-45 PoE++ 2 x 1000Base-X SFP uplink |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | DC 48 - 56 V |
| Miscellaneous | |
| Compliant Standards: | Plug and Play |
| Dimensions & Weight | |
| Width: | 12.4 cm |
| Depth: | 15.2 cm |
| Height: | 4.4 cm |
| Weight: | 530 g |
| Environmental Parameters | |
| Min Operating Temperature: | -25 °C |
| Max Operating Temperature: | 65 °C |
| Humidity Range Operating: | 10 - 90% |
