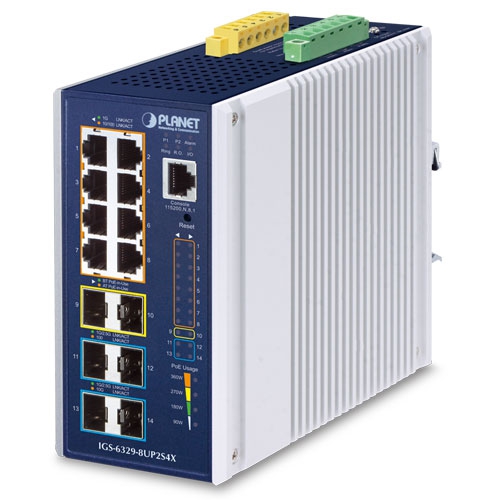

Planet industrial managed Ethernet switch, L3 8-port 10/100/1000T 802.3bt PoE + 2-port 1G/2.5G SFP + 4-port 10G SFP+

1 100.00 € 1100.0 EUR

1 100.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.planet.com.tw/en/product/igs-6329-8up2s4x?c1=industrial-ethernet&c2=industrial-power-over-ethernet&c3=din-rail-l3-ring-managed-gigabit-poe-switch

Hardware Specifications
Copper Ports8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP Ports2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP
SFP+ Ports4 10GBASE-SR/LR SFP+ slot interfaces (Port-11 to Port-14)
Compatible with 1000BASE-X and 2500BASE-X SFP
PoE Injector Ports8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8
Console1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
ConnectorRemovable 6-pin terminal block for power input
 Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Removable 6-pin terminal block for DI/DO interface
 Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
AlarmOne relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Digital Input (DI)2 digital inputs:
 Level 0: -24~2.1V (±0.1V)
 Level 1: 2.1~24V (±0.1V)
 Input load to 24V DC, 10mA max.
Digital Output (DO)2 digital outputs:
 Open collector to 24VDC, 100mA
EnclosureIP30 aluminum case
InstallationDIN-rail or wall mounting
Dimensions (W x D x H)76 x 135 x 152 mm
Weight1,619g
Power RequirementsDual DC 48~54V, 8A max.
(>52V DC for 802.3bt PoE++ output recommended)
Power ConsumptionMax. 12.4 watts/42.3BTU@54V DC input (System on)
Max. 430 watts/1467.2BTU@54V DC input (Full loading with 802.3bt PoE++ function)
ESD ProtectionAir 8KV DC
Contact 6KV DC
Surge Protection4KV DC
LED IndicatorSystem:
 Power 1 (Green), Power 2 (Green), Alarm (Red)
 Ring (Green), Ring Owner (Green), DIDO (Red)
Per 10/100/1000T RJ45 PoE++ Port:
 1000Mbps LNK/ACT (Green)
 10/100Mbps LNK/ACT (Amber)
 802.3bt PoE++-in-use x 1 (Green)
 802.3at/af PoE-in-use x 1 (Amber)
Per SFP Interface:
 1G/2.5G LNK/ACT (Green)
 100 LNK/ACT (Amber)
Per SFP+ Port:
 10Gbps LNK/ACT (Green)
 1Gbps LNK/ACT (Amber)
PoE Usage:
 90W, 180W, 270W, 360W (Amber)
Switching Specifications
Switch ArchitectureStore-and-Forward
Switch Fabric106Gbps/non-blocking
Throughput (packet per second)78.87Mpps@ 64 bytes packet
Address Table32K entries, automatic source address learning and aging
Shared Data Buffer32Mbits
Jumbo Frame10Kbytes
SDRAM512Mbytes
Flash Memory64Mbytes
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Power Over Ethernet
PoE StandardIEEE 802.3bt PoE++ Type-4 PSE
Backward compatible with 802.3at PoE+ PSE
PoE Power Supply Type802.3bt
UPOE/POH
End-span
Mid-span
Force
PoE Power Output802.3bt PoE++
 Per port 52V~54V DC (depending on the power supply), max. 90 watts
UPoE(PoH)
 Per port 52V~54V DC (depending on the power supply), max. 95 watts
IEEE 802.3at Standard
 Per port 52V~54V DC (depending on the power supply), max. 36 watts
Force
 Per port 52V~54V DC (depending on the power supply), max. 60 watts
Power Pin AssignmentEnd-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Power BudgetSingle power input: 240W maximum (depending on power input)
 Dual power input: 360W maximum (depending on power input)
※Dual power input must be the same as DC voltage, like dual 54V
PoE Ability PD @ 12.5 watts8 units
PoE Ability PD @ 25 watts8 units
PoE Ability PD @ 51 watts6 units
PoE Ability PD @ 71 watts4 units
PoE Management Functions
Active PoE device alive detectsYes
PoE Power RecycleYes, daily or predeinded schedule
PoE Schedule4 schedule profiles
PoE Extend ModeYes, max. 160 to 200 meters
PoE System ManagementSystem PoE Admin control
Total PoE power budget control
Auto power input and PoE budget control
PoE Legacy mode
Over-temperature threshold alarm
PoE usage threshold alarm
PoE Port ManagementPort Enable/Disable/Schedule
PoE mode control
 802.3bt
 UPoE
 802.3at End-span
 802.3at Mid-span
Force mode
Port Priority
Layer 2 Functions
Port ConfigurationPort disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Port link capability control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status,
auto negotiation status, trunk status
Port MirroringTX/RX/both
Many-to-1 monitor
Supports up to 5 sessions
VLANIEEE 802.1Q tagged VLAN
IEEE 802.1ad Q-in-Q tunneling
Private VLAN Edge (PVE)
MAC-based VLAN
Protocol-based VLAN
Voice VLAN
MVR (Multicast VLAN Registration)
GVRP
Up to 4K VLAN groups, out of 4095 VLAN IDs
Link AggregationIEEE 802.3ad LACP/static trunk
Supports 3 trunk groups with 4 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IGMP SnoopingIPv4 IGMP (v1/v2/v3) snooping
IPv4 IGMP querier mode support
Supports 255 IGMP groups
MLD SnoopingIPv6 MLD (v1/v2) snooping,
IPv6 MLD querier mode support
Supports 255 MLD groups
Bandwidth ControlPer port bandwidth control
 Ingress: 500Kb~1000Mbps
 Egress: 500Kb~1000Mbps
RingSupports ERPS, and complies with ITU-T G.8032
Recovery time < 10ms
Supports Major ring and sub-ring
SynchronizationIEEE 1588v2 PTP(Precision Time Protocol)
 Peer-to-peer transparent clock
 End-to-end transparent clock
QoSTraffic classification based, strict priority and WRR
8-level priority for switching
 Port number
 802.1p priority
 802.1Q VLAN tag
 DSCP/TOS field in IP packet
Layer 3 Functions
IP InterfacesMax. 128 VLAN interfaces
Routing TableMax. 128 routing entries
Routing ProtocolsIPv4 hardware static routing
IPv6 hardware static routing
RIPv2 dynamic routing
IPv4 OSPFv2 dynamic routing
IPv6 OSPFv3 dynamic routing
Security Functions
Access Control ListIP-based ACL/MAC-based ACL
ACL based on:
 MAC Address
 IP Address
 Ethertype
 Protocol Type
 VLAN ID
 DSCP
 802.1p Priority
Up to 256 entries
SecurityPort security
IP source guard
Dynamic ARP inspection
Command line authority control based on user level
AAARADIUS client
TACACS+ client
Network Access ControlIEEE 802.1x port-based network access control
MAC-based authentication
Local/RADIUS authentication
Management Functions
Basic Management InterfacesConsole; Telnet; Web browser; SNMP v1, v2c
Secure Management InterfacesSSHv2, TLSv1.2, SNMPv3
System ManagementFirmware upgrade by HTTP protocol through Ethernet network
Configuration upload/download through HTTP
Remote Syslog
System log
LLDP protocol
NTP
PLANET Smart Discovery Utility
PLANET CloudViewer app
Event ManagementRemote Syslog
System log
SMTP
ONVIFONVIF device discovery
ONVIF device monitoring
Floor Map
SNMP MIBsRFC 1213 MIB-II
RFC 1493 Bridge MIB
RFC 1643 Ethernet MIB
RFC 2863 Interface MIB
RFC 2665 Ether-Like MIB
RFC 2819 RMON MIB (Group 1, 2, 3 and 9)
RFC 2737 Entity MIB
RFC 2618 RADIUS Client MIB
RFC 2863 IF-MIB
RFC 2933 IGMP-STD-MIB
RFC 3411 SNMP-Frameworks-MIB
RFC 4292 IP Forward MIB
RFC 4293 IP MIB
RFC 4836 MAU-MIB
IEEE 802.1X PAE
LLDP
MAU-MIB
Power over Ethernet MIB
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A
CE:
 EN 55032 , EN 55035
 EN 61000-6-2, EN 61000-6-4
RailwayEN50121-4, EN 50121-1
Stability TestingIEC 60068-2-32 (free fall)
IEC 60068-2-27 (shock)
IEC 60068-2-6 (vibration)
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
IEEE 802.3ah OAM
IEEE 802.1ag Connectivity Fault Management (CFM)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
RFC 3810 MLD v2
RFC 2328 OSPF v2
ITU-T G.8032 ERPS Ring
ITU-T Y.1731 Performance Monitoring
Environment
Operating Temperature-40 ~ 75 degrees C
Storage Temperature-40 ~ 85 degrees C
Humidity5 ~ 95% (non-condensing)
