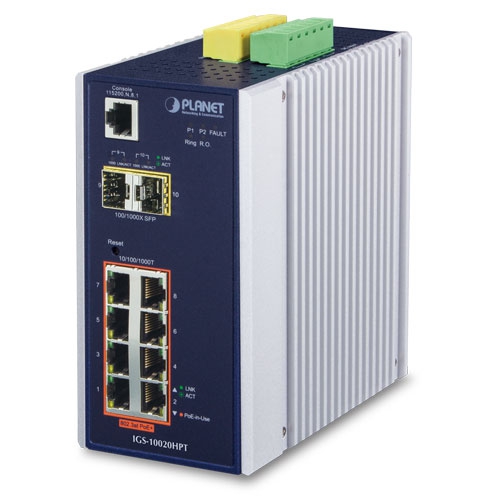

Industrial 8-port 10/100/1000T 802.3at PoE + 2-port 1G/2.5G SFP managed switch
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.planet.com.tw/en/product/igs-10020hpt-v3
| Hardware Specifications | |
|---|---|
| Version | IGS-10020HPT：3 IGS-10020HPT-U：1 |
| Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000/2500BASE-X mini-GBIC SFP ports (Port 9 and Port 10) |
| Console | IGS-10020HPT： 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) IGS-10020HPT-U：1 x USB serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail kit and wall-mount kit |
| Connector | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V |
| DI/DO | 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max. |
| Dimensions (W x D x H) | 76.8 x 107x 152 mm |
| Weight | IGS-10020HPT：1096g IGS-10020HPT-U： 1085g |
| Power Requirements | IGS-10020HPT：DC 12-48V IGS-10020HPT-U：DC 12-54V |
| Power Consumption | IGS-10020HPT： 255 watts/870BTU (Full loading with PoE function) IGS-10020HPT-U： 250 watts/853BTU (Full loading with PoE function) |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| LED Indicator | IGS-10020HPT： System: Power 1 (Green) Power 2 (Green) Fault Alarm (Green) Ring (Green) R.O. (Ring Owner) (Green) Per 10/100/1000T RJ45 Ports: PoE-in-Use (Amber) LNK/ACT (Green) Per 100/1000/2500BASE-X SFP Interface: LNK/ACT (Green) 1G/2.5G (Amber) IGS-10020HPT-U： System: Power 1 (Green) Power 2 (Green) Fault Alarm (Red) Ring (Green) R.O. (Ring Owner) (Green) Per 10/100/1000T RJ45 Ports: PoE-in-Use (Amber) LNK/ACT (Green) Per 100/1000/2500BASE-X SFP Interface: LNK/ACT (Green) 1G/2.5G (Amber) |
| Switching Specifications | |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 26Gbps/non-blocking |
| Throughput (packet per second) | 19.34Mpps@ 64Bytes packet |
| Address Table | 8K entries, automatic source address learning and aging |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| Jumbo Frame | 9Kbytes |
| Power Over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 52V/54V DC, 350mA; max. 15.4 watts (IEEE 802.3af) Per port 52V.54V DC, 590mA; max. 36 watts (IEEE 802.3at) |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | IGS-10020HPT： 60W maximum (DC 12V power input) 120W maximum (DC 24V power input) 240W maximum (DC 48V power input) IGS-10020HPT-U： 60W maximum (DC 12V power input) 120W maximum (DC 24V power input) 240W maximum (DC 54V power input) |
| Max. Number of Class 2 PDs @ 7 watts | 8 |
| Max. Number of Class 3 PDs @ 15.4 watts | 8 |
| Max. Number of Class 4 PDs @ 30.8 watts | 8 |
| PoE Extend Mode | Remote power feeding up to 100m in standard mode and 200m in extend mode |
| Layer 2 Function | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/both 1 to 1 monitor |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN GVRP MVR (Multicast VLAN Registration) Up to 4K VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk Supports 5 trunk groups with 10 ports per trunk group |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching Port number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/V3) snooping, up to 255 multicast groups IGMP querier mode support |
| MLD Snooping | MLD (v1/v2) snooping, up to 255 multicast groups MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 123 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps |
| Storm Control | Unicast/Multicast/Broadcast |
| Layer 3 Function | |
| IP Interfaces | Max. 8 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 software static routing IPv6 software static routing |
| Management | |
| Basic Management Interfaces | USB Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2,TLSv1.2, SNMP v3 |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
| SNMP MIBs | RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Certification | e-Mark |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit 1000T IEEE 802.3z Gigabit SX/LX IEEE 802.3bz 2.5GBASE-X IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management(CFM) RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 793 RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |
