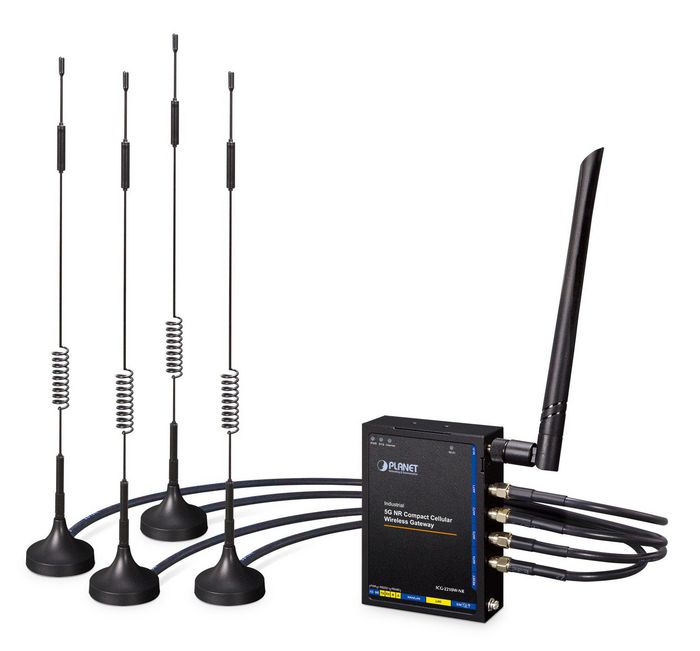

Planet industrial 5G NR compact cellular wireless gateway with 2-port 10/100/1000T
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
https://www.planet.com.tw/en/product/icg-2210w-nr?c1=network-security&c2=vpn-gateway&c3=security-cellular-gateway
| Hardware Specifications | |
|---|---|
| Ethernet | 2 10/100/1000BASE-T RJ45 Ethernet ports including 1 LAN port 1 WAN/LAN port |
| Serial Interface | 1 RS232 and 1 RS485 |
| SIM Interface | 2 micro SIM card slots |
| Cellular Antenna | 5 dBi external antennas with SMA connectors for 5G-NR |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| Enclosure | IP30 metal case |
| Installation | DIN rail, wall-mounting |
| LED Indicators | System: PWR (Green) SYS (Green) Internet LNK/ACK(Green) Wi-Fi (Green) |
| Dimensions (W x D x H) | 76 x 23.5 x 106 mm |
| Weight | 285 g |
| Power Requirements – DC | 9~36V DC DC IN |
| Power Consumption | 5.72 W / 19.51 BTU |
| Multi Band Support | |
| 5G NR Module | EAU: Sub-6: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n75/n76/n77/n78/n79 LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-FDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8 NA: Sub-6: n2/n5/n7/n12/n14/n25/n30/n48/n41/n70/n66/n71/n77/n78 LTE FDD: B2/B4/B5/B7/B12/B13/B29/B30/B66/B71 LTE TDD: B41/B46(LAA)/B48 |
| Data Transmission Throughput | 2.4Gbps (DL)/500Mbps (UL) for NR 1Gbps (DL)/200Mbps (UL) for LTE 42Mbps (DL)/5.76Mbps (UL) for HSPA+ |
| Wireless | |
| Standard | IEEE 802.11a/n/ac 5GHz IEEE 802.11g/b/n 2.4GHz |
| Band Mode | 2.4G & 5G concurrent mode |
| Frequency Range | 2.4GHz America FCC: 2.412~2.462GHz Europe ETSI: 2.412GHz~2.472GHz 5GHz 5.15GHz ~5.875GHz |
| Operating Channels | 2.4GHz America FCC: 1~11 Europe ETSI: 1~13 5GHz America FCC: Non-DFS: 36, 40, 44, 48, 149,153,157,161,165 Europe ETSI: Non-DFS: 36, 40, 44, 48 DFS: 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140 5GHz channel list may vary in different countries according to their regulations. |
| Channel Width | 20MHz, 40MHz |
| Data Transmission Rates | Transmit: 150 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz Receive: 150 Mbps* for 2.4 GHz and 433 Mbps* for 5 GHz *The estimated transmission distance is based on the theory. The actual distance will vary in different environments. |
| Transmission Power | 11b: 23dbm+/- 1.5dbm @11Mbps 11g: 20dbm+/- 1.5dbm @54Mbps 11g/n: 20dBm +/- 1.5dbm @MCS7, HT20 17dBm@MCS7,HT40 11a: 19.5dBm +/- 1.5dbm @54Mbps 11a/n: 19.5dBm+/- 1.5dbm @MCS7, HT20 17dBm@MCS7, HT40 11ac HT20: 20+/-1.5dBm @MCS8 11ac HT40: 17+/-1.5dBm @MCS9 11ac HT80: 14.5+/-1.5dBm @MCS9 |
| Encryption Security | WEP (64/128-bit) encryption security WPA / WPA2 (TKIP/AES) WPA-PSK / WPA2-PSK (TKIP/AES) 802.1x Authenticator |
| Wireless Advanced | Wi-Fi Multimedia (WMM) Auto channel selection Wireless output power management MAC address filtering |
| Advanced Functions | |
| VPN | IPSec/Remote Server (Net-to-Net, Host-to-Net) GRE PPTP Server L2TP Server SSL Server/Client (Open VPN) |
| VPN Tunnels | Max. 30 |
| VPN Throughput | Max. 50Mbps |
| Encryption Methods | DES, 3DES, AES or AES-128/192/256 encrypting |
| Authentication Methods | MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm |
| Management | |
| Basic Management Interfaces | Web browser SNMP v1, v2c PLANET Smart Discovery utility |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| System Log | System Event Log |
| Others | Setup wizard Dashboard System status/service Statistics Connection status Auto reboot Diagnostics |
| Standards Conformance | |
| Regulatory Compliance | CE |
| Environment | |
| Operating | Temperature: -40 ~ 75 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
| Storage | Temperature: -40 ~ 85 degrees C Relative humidity: 5 ~ 90% (non-condensing) |
