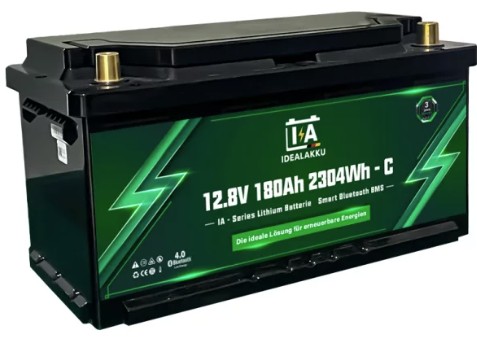

IA seeria LiFePO4 aku 12V, 180Ah, CAN Smart-BMS & Bluetooth
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
- CAN Smart BMS: Enhanced communication for professional vehicle electrical system and system integration
- Prismatic Grade-A cells: High energy density, stable LiFePO4 technology and long lifespan
- 200 A maximum continuous discharge current: Strong power reserve for inverters and demanding consumers
- Smart BMS with Bluetooth: App available in the Apple Store and on Google Play
- Compact & powerful: 18 kg | 355 x 175 x 188 mm
- Direct replacement: Replaces 12.8V 360Ah lead-acid gel AGM batteries at a significantly lower weight.
- Practical fit: Designed for motorhome and under-seat applications with clean integration
| Model | 12.8V 180Ah/2304Wh |
| Replaces lead-acid gel AGM battery | 12.8 V 360 Ah |
| Cell type | Prismatic cell |
| Dimensions including clamps (L x W x H) | 355 x 175 x 188 mm |
| Weight (without accessories) | 18 kg |
| menstrual cycle | >6000@80%DoD |
| Internal resistance | ≤7 mΩ |
| Recommended charging voltage | 14.6 V |
| Maintenance charging voltage (standby) | 13.8±0.8 V |
| Recommended charging current | 54 A |
| Max. charging current | 90 A |
| Continuous discharge current | 200 A |
| Peak discharge cutoff current | 600 A (200~500ms) |
| Operating voltage range | 10 – 14.6 V |
| End of the discharge voltage range | 10 – 11.2 V |
| Terminal type | SAE standard |
| Protection class | IP65 |
| Charging temperature | 0~50 °C |
| Discharge temperature | -20~75 °C |
| Storage temperature | -5 to 35 °C |
| Storage condition | Charge the battery every 3 months |
| Series and parallel availability | Maximum 4 pieces in series and 4 pieces in parallel connection |
| Certifications | CE /UL /UN38.3 /MSDS /ROHS UN 3480 /CLASS 9 |
