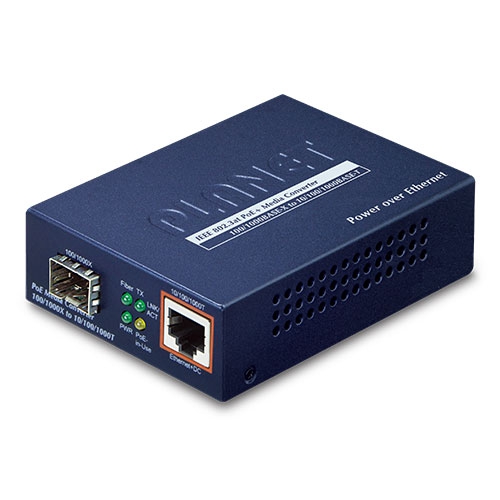

100/1000BASE-X to 10/100/1000BASE-T 802.3at PoE+ media converter (mini-GBIC, SFP)
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| Interface | |
|---|---|
| Copper Port | 10/100/1000BASE-T Ethernet TP interface Auto-negotiation, auto MDI/MDI-X with PoE injector function |
| Fiber Port | GTP-805A: 100/1000BASE-X SFP |
| Fiber Mode | GTP-805A May vary on SFP Module |
| Fiber Port Type (connector) | GTP-805A: SFP |
| Cable Distance | GTP-805A: May vary on SFP Module |
| Optical Frequency | GTP-805A: May vary on SFP Module |
| Launch Power (dBm) | GTP-805A: May vary on SFP Module |
| Receive Sensitivity | GTP-805A: May vary on SFP Module |
| Maximum Input Power | GTP-805A: May vary on SFP Module |
| Power Over Ethernet | |
| PoE Output | IEEE 802.3at Power over Ethernet Plus standard IEEE 802.3af Power over Ethernet standard |
| Power Output | PoE 52V DC, max. 30 watts |
| PoE Power Supply Type | End-span |
| Power Pin Assignment | 1/2 (+), 3/6 (-) |
| PoE Power Budget | 30 watts |
| Hardware Specifications | |
| Switch Architecture | Store-and-Forward |
| Flow Control | Back pressure for half duplex mode IEEE 802.3x pause frame for full duplex mode |
| Maximum Frame Size | 9K |
| LED | System: PWR (Green) Fiber 100/1000BASE-X: LNK/ACT (Green,GTP-805A) Fiber 1000BASE-X: LNK/ACT (Green, GTP-802/GTP-802S) TP 10/100/1000BASE-T: LNK/ACT (Green) PoE: Power-in-use (Orange) |
| Dimensions (W x D x H) | 96 x 26 x 70 mm |
| Weight | 0.21kg |
| Power Supply | 52V DC, 0.58A external AC-to-DC adapter |
| LFP mode | Enable: Shut down either TP port or fiber port that is broken Disable: Link LED indicators still on if connection of the other end is broken |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet. IEEE 802.3at Power over Ethernet Plus standard |
| Protocols and Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet over Fiber Optic IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet. IEEE 802.3at Power over Ethernet Plus standard |
| Cables | TP: Cat 5 / 5e / 6 UTP cable Fiber: Multi-mode: 50/125 ㎛ or 62.5/125 ㎛ optic fiber Single-mode: 9/125 ㎛ optic fiber |
| Environment | |
| Temperature | 0~50 degrees C |
| Humidity | 5~90% (non-condensing) |
