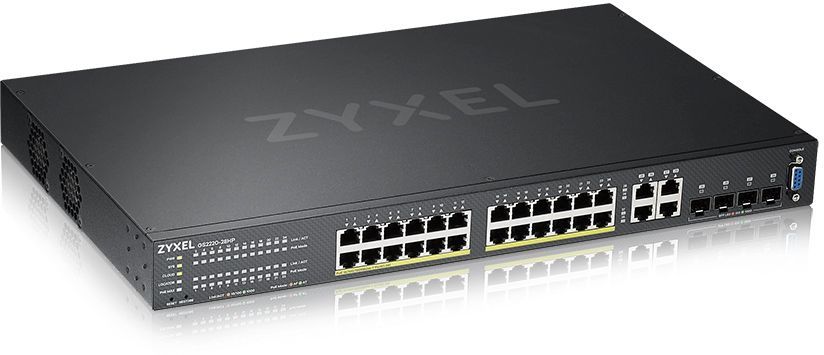

ZyXEL GS2220 series L2 managed switch, 24-port GbE, PoE, with GbE uplink, 1 year NCC Pro pack license bundled
Hind ei sisalda käibemaksu.
Toode on tellitav.
Tehnilised andmed
| General | |
| Device Type: | Switch - 24 ports - Managed |
| Enclosure Type: | Rack-mountable |
| Subtype: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 (PoE+) + 4 x combo Gigabit SFP |
| Power Over Ethernet (PoE): | PoE+ |
| PoE Budget: | 375 W |
| Performance: | Switching capacity: 56 Gbps Forwarding rate: 42 Mpps Packet buffer size: 1.5 MB |
| MAC Address Table Size: | 16K entries |
| Routing Protocol: | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLD, MSTP, RSTP, STP |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Encryption Algorithm: | SSL |
| Authentication Method: | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Features: | Flow control, IGMP snooping, Syslog support, port mirroring, IP address filtering, ZyXEL iStacking Technology, sFlow, QoS, MLD snooping, LACP support, LLDP support, DHCP relay, Port Security, DHCP client, MIB, MVR, port isolation, CoS, GVRP, cloud managed, DSCP support, ErrDisable Recovery, IP source guard, ARP inspection, dual image support, Root Guard, Loop Guard, LLDP-MED, EEE, VLAN Tagging, MRSTP |
| Compliant Standards: | IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| RAM: | 256 MB |
| Flash Memory: | 32 MB |
| Status Indicators: | Status |
| Expansion / Connectivity | |
| Interfaces: | 28 x 1000Base-T RJ-45 PoE+ 4 x 1000Base-X SFP 1 x serial (RS-232) |
| Power | |
| Power Device: | Internal power supply |
| Voltage Required: | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational: | 463.5 watt |
| Miscellaneous | |
| Rack Mounting Kit: | Included |
| MTBF: | 693,245 hours |
| Compliant Standards: | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A |
| Localisation: | Europe |
| Dimensions & Weight | |
| Width: | 44.1 cm |
| Depth: | 27 cm |
| Height: | 4.4 cm |
| Weight: | 3.8 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 61.6 cm |
| Shipping Depth: | 35.5 cm |
| Shipping Height: | 10.7 cm |
| Shipping Weight: | 4.97 kg |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
| Humidity Range Operating: | 10 - 95% |
