| General |

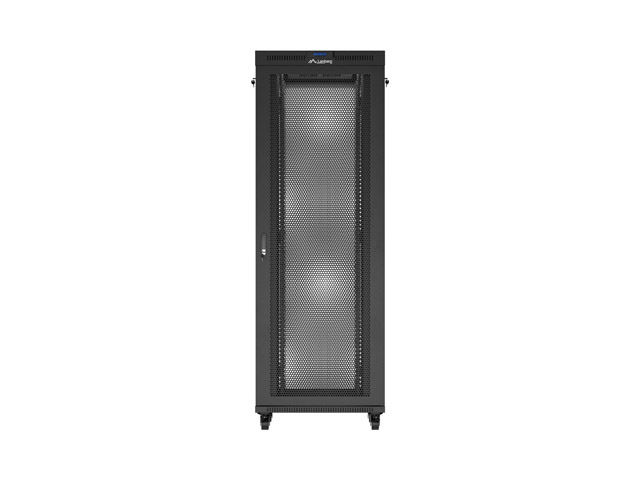

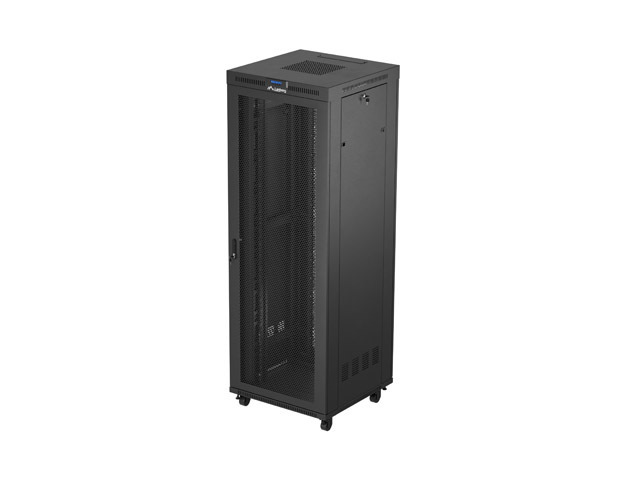

| Product Type: | Rack - 800 x 800, flat pack, with mesh door, LCD |
| Rack Type: | Cabinet |
| Built-in Devices: | LCD screen, thermostat, 4 cooling fans |
| Placing / Mounting: | Free-standing, floor-standing |
| Product Material: | High-grade cold rolled steel |
| Package Content: | Front lock, grounding cable, legs, M6 screws, rear lock, side locks, ventilation panel (4 fans), wheels with brake, 2 vertical cable management panels |
| Rack Size: | 19" |
| Height (Rack Units): | 47U |
| Width: | 80 cm |
| Depth: | 80 cm |
| Height: | 234.3 cm |
| Weight: | 139 kg |
| Inner Dimensions: | 60 cm |
| Colour: | Black, RAL 9004 |
| Miscellaneous |
| Weight Limit: | 1200 kg |
| Assembly Required: | Yes |
| Features: | Casters, 4 vertical mounting rails, LCD display, flat pack, perforated front door, perforated rear door, thermostat, grounding front and back door frames, 210° opening angle, single-leafed |
| Compliant Standards: | ANSI/EIA-RS-310-D, DIN 41491 Part 1, DIN 41494 Part 7, ETSI, IEC 297-2:1982, IP20 |
