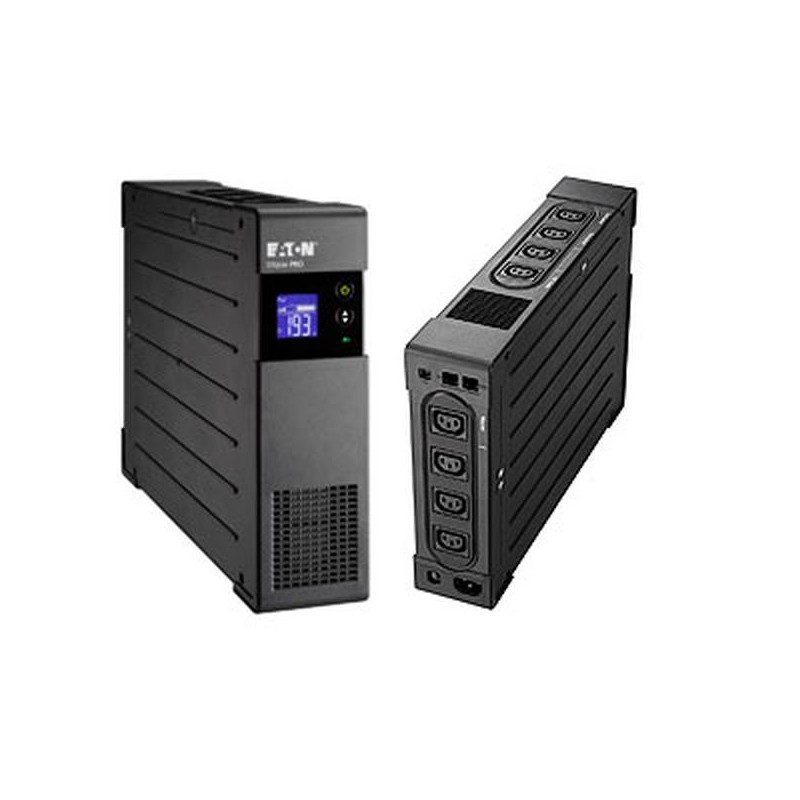

Eaton USV Ellipse PRO 1200 IEC

279.28 € 279.28000000000003 EUR

275.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

PRODUCT NAME
Eaton Ellipse PRO UPS
CATALOG NUMBER
ELP1200IEC
PRODUCT LENGTH/DEPTH
82 mm
PRODUCT HEIGHT
275 mm
PRODUCT WIDTH
390 mm
PRODUCT WEIGHT
9.9 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC
UPC
743172437952

PRODUCT SPECIFICATIONS

SECONDARY FREQUENCY - MAX
60 Hz
WATTAGE
750W
OUTPUT POWER FACTOR
0.6
FORM FACTOR
Tower
INCLUDES NETWORK CARD
No
INPUT CONNECTION
C14
INPUT VOLTAGE - MIN
150 V
OUTPUT VOLTAGE - MAX
284 V
SECONDARY FREQUENCY - MIN
50 Hz
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
BATTERY REPLACEMENT
User replaceable
BATTERY TYPE
Sealed, lead-acid
EFFICIENCY
97
SPECIAL FEATURES
  • Convenient extra-flat design for easy installation in any office environment
  • Automatic Voltage Regulation (AVR)
  • High performance surge-protection device compliant with IEC 61643-11 standard
  • Data line protection to ensure that the internet line (including xDSL) is protected against surges
  • LCD display for real-time status and measurements
  • 8 outlets to connect your PC + peripherals
  • EcoControl function helps you save up to 20 % energy compared to previous generation UPSs
  • HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)
  • Easy to replace battery helps to extend UPS service life
CONSTRUCTION TYPE
Free standing model
OUTPUT VOLTAGE - MIN
176 V
COLOR
Black
EXTENDED BATTERY CAPABILITY
No
OUTPUT VOLTAGE RANGE
176-284 V
TOPOLOGY
Line-interactive
SURGE PROTECTION
Yes
RUNTIME AT HALF LOAD
9 min
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
INPUT FREQUENCY RANGE
46-70 Hz
INPUT VOLTAGE - MAX
285 V
VOLTAGE TYPE
AC
PHASE (OUTPUT)
1
BATTERY MANAGEMENT
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
AUTO SHUTDOWN FUNCTION
Yes
NUMBER OF OUTPUTS C13
8
OPERATING TEMPERATURE - MIN
0 °C
VA RATING
1200 VA
POTENTIAL FREE SWITCH CONTACT
No
RECEPTACLE
(4) C13, (4) C13 surge only
PHASE (INPUT)
1
PACKAGE CONTENTS
  • (2) IEC-IEC cables
  • USB cable
  • User manual
  • Safety instructions
NOISE LEVEL
<27 dB at 1 meter
FEED TYPE
1
RUNTIME GRAPH
View runtime graph
USER INTERFACE
LCD (UPS status and measurements, configuration of UPS settings)
BATTERY QUANTITY
2
OPERATING TEMPERATURE - MAX
35 °C
VOLTAGE
230V
TEMPERATURE RANGE
0° to 35°C
ETHERNET INTERFACE
No
COMMUNICATION
USB port (HID compliant)
RELATIVE HUMIDITY
0-85% non-condensing
OUTPUT APPARENT POWER
1200 VA
RACK MOUNTING KIT
No
OUTPUT FREQUENCY
50/60 Hz
RUNTIME AT FULL LOAD
2 min
TYPE OF INTERFACE
USB
PRIMARY FREQUENCY - MIN
46 Hz
BATTERY RATING
12 V / 7 Ah
TYPE
UPS
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
EXPANSION SLOTS
No
INPUT VOLTAGE RANGE
165-285 V (adjustable to 150-285 V)
NOMINAL FREQUENCY
50/60 Hz
PRIMARY FREQUENCY - MAX
70 Hz
ALTITUDE
2000 m
