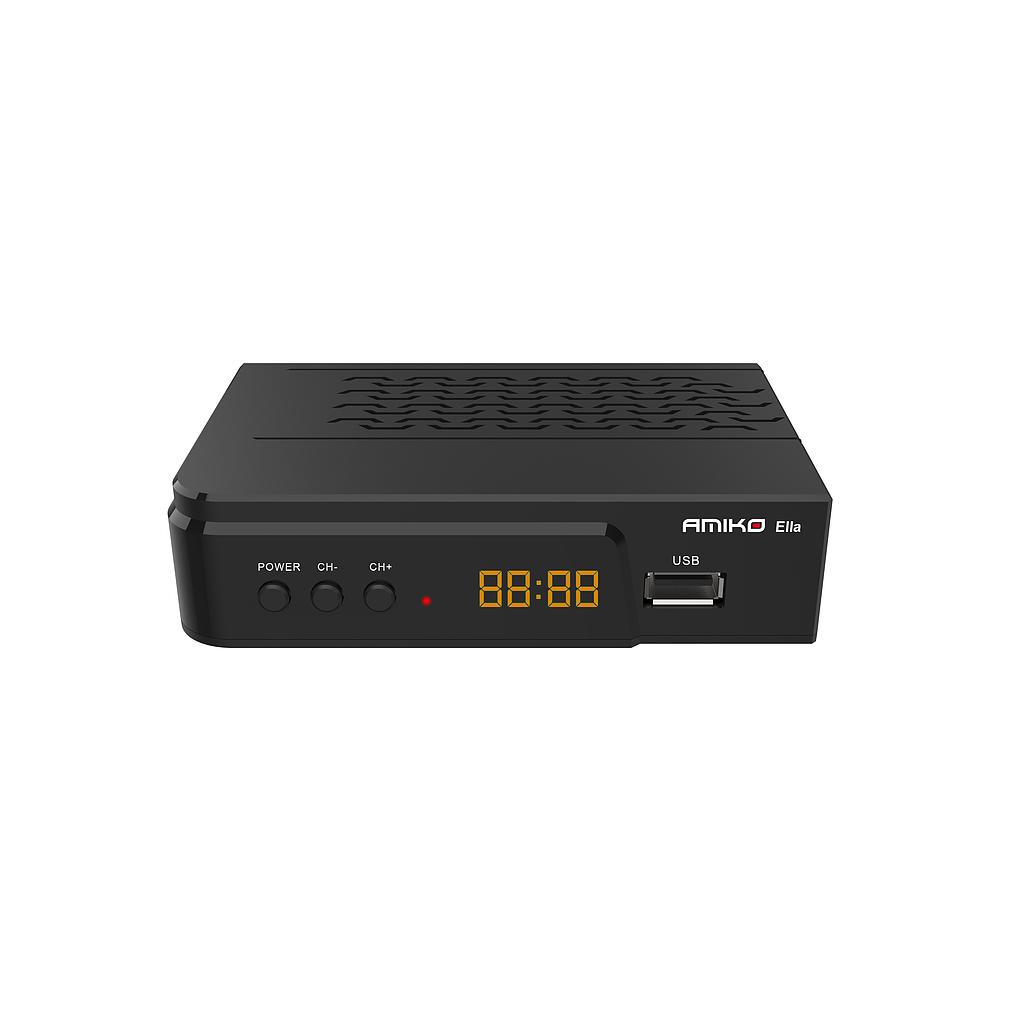

FTA Satellite Receiver
High Speed USB 2.0 Connection Support
SCART support
TimeShifting Support
Software Upgrade via USB
MKV, AVI, MPG, MP4, TS, VOB, JPEG & MP3
Playback Support
Dolby Digital Bit-Stream out via HD OUT
Low Power Consumption in Stand-By
MORE FEATURES
True-color, User Friendly On-Screen Display (OSD)
Full Picture In Graphic (PIG) function
Electronic Program Guide (EPG) for on screen channel information
Subtitle supported
Teletext supported by VBI insertion and software emulation
Parental lock facility by channel and program event
Program and Channel information transfer from receiver to receiver
Multi-Language support
Power Consumption in Stand-By: <0.5W
Tuner & Demodulation
Tuner Type: DVB-S / DVB-S2
Input Connector: F-type, Connector, Female
Signal Level: -65 to -25 dBm
LNB Power & Polarization: Vertical: +13V/+14V,
Horizontal: +18V/+19V
Current: Max. 400mA
Overload Protection
22KHz Tone Frequency: 22±1KHz
DiSEqC Control: Version 1.0, 1.1, 1.2, USALS
Demodulation: QPSK, 8PSK
Input Symbol Rate: 2-45 Mbps,
FEC: 1/2, 2/3, 3/4, 5/6, 7/8 and Auto
System Resources
Main Processor: 650MHz based CPU
Flash Memory: 32MBits
MPEG TS A/V Decoding
Transport Stream: MPEG-2, H.264/H.265
Input Rate: Max.120Mbit/s
Aspect Radio: 4:3, 16:9, Letter Box
Video Decoding: MPEG-2, MP@ML, MPEG-4 part 10/H264
Video Resolution: 720*480P/I, 720*576P/I, 1280*720p, 1920*1080i, 1920*1080p
Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby digital
Audio Mode: Left / Right / Stereo/ Mono
Sampling Rate: 32, 44.1 and 48KHz
Power Supply
Input Voltage: 12V DC
Power Consumption: 18W Max
Stand-By Power Consumption: <0.5W
A/V & Data Input/Output
SCART A/V: Video CVBS output, Audio L/R output
USB: One USB 2.0 slots
Digital Video Output
