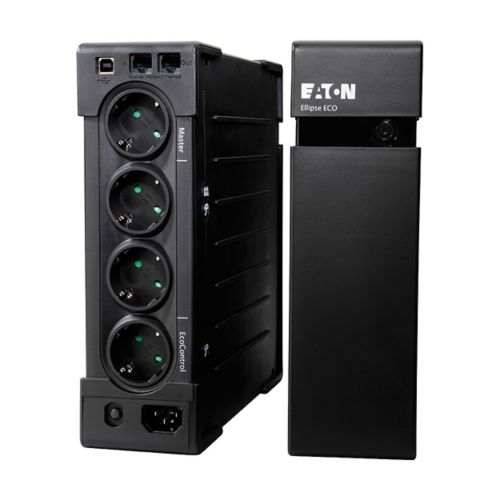

Eaton Ellipse ECO off-line UPS USB DIN, 650VA/400W, input: C14, outputs: (3) Schuko, (1) Schuko surge only, tower

123.46 € 123.46000000000001 EUR

123.00 €

Lisa ostukorvi

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

https://www.eaton.com/ee/et-ee/skuPage.EL650USBDIN.html

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton Ellipse ECO UPS
CATALOG NUMBER
EL650USBDIN
EAN
3553340620720
PRODUCT LENGTH/DEPTH
81 mm
PRODUCT HEIGHT
263 mm
PRODUCT WIDTH
235 mm
PRODUCT WEIGHT
3.6 kg
COMPLIANCES
CE Marked
CERTIFICATIONS
IEC/EN 62040-1
IEC/EN 62040-2
CE
EAC

BATTERY

BATTERY TYPE
Sealed, lead-acid
RUNTIME GRAPH
BATTERY REPLACEMENT
User replaceable
BATTERY QUANTITY
1
BATTERY MANAGEMENT
Replaceable batteries, Automatic battery test, deep-discharge protection, cold-start capable
BATTERY RATING
12 V / 7 Ah
EXTENDED BATTERY CAPABILITY
No

ELECTRICAL OUTPUT

RECEPTACLE
(3) Schuko, (1) Schuko surge only
VOLTAGE
230V
WATTAGE
400W
OUTPUT POWER FACTOR
0.6
OUTPUT VOLTAGE RANGE
184-264 V (adjustable to 161-284 V)
OUTPUT NOMINAL VOLTAGE
230V default (220/230/240V)
FEED TYPE
1
TOPOLOGY
Offline
VA RATING
650 VA

ELECTRICAL INPUT

INPUT CONNECTION
C14
INPUT NOMINAL VOLTAGE
230V default (220/230/240V)
NOMINAL FREQUENCY
50/60 Hz
INPUT CORD LENGTH
1.5 m
INPUT VOLTAGE RANGE
184-264 V (adjustable to 161-284 V)
INPUT FREQUENCY RANGE
46-70 Hz

COMMUNICATIONS

INCLUDES NETWORK CARD
No
COMMUNICATION
USB port (HID compliant)
ETHERNET INTERFACE
No
USER INTERFACE
LEDs
POTENTIAL FREE SWITCH CONTACT
No
EXPANSION SLOTS
No
SOFTWARE COMPATIBILITY
Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
TYPE OF INTERFACE
USB

ENVIRONMENTAL

ALTITUDE
2000 m
NOISE LEVEL
<25 dB at 1 meter
TEMPERATURE RANGE
0° to 35°C (32° to 95°F)
RELATIVE HUMIDITY
0-85% non-condensing

ADDITIONAL SPECIFICATIONS

CONSTRUCTION TYPE
Free standing model
PACKAGE CONTENTS
  • Input cable
  • USB cable
  • User manual
  • Safety instructions
PHASE (OUTPUT)
1
AUTO SHUTDOWN FUNCTION
Yes
COLOR
Black
EFFICIENCY
98
RACK MOUNTING KIT
No
PHASE (INPUT)
1
SURGE PROTECTION
Yes
