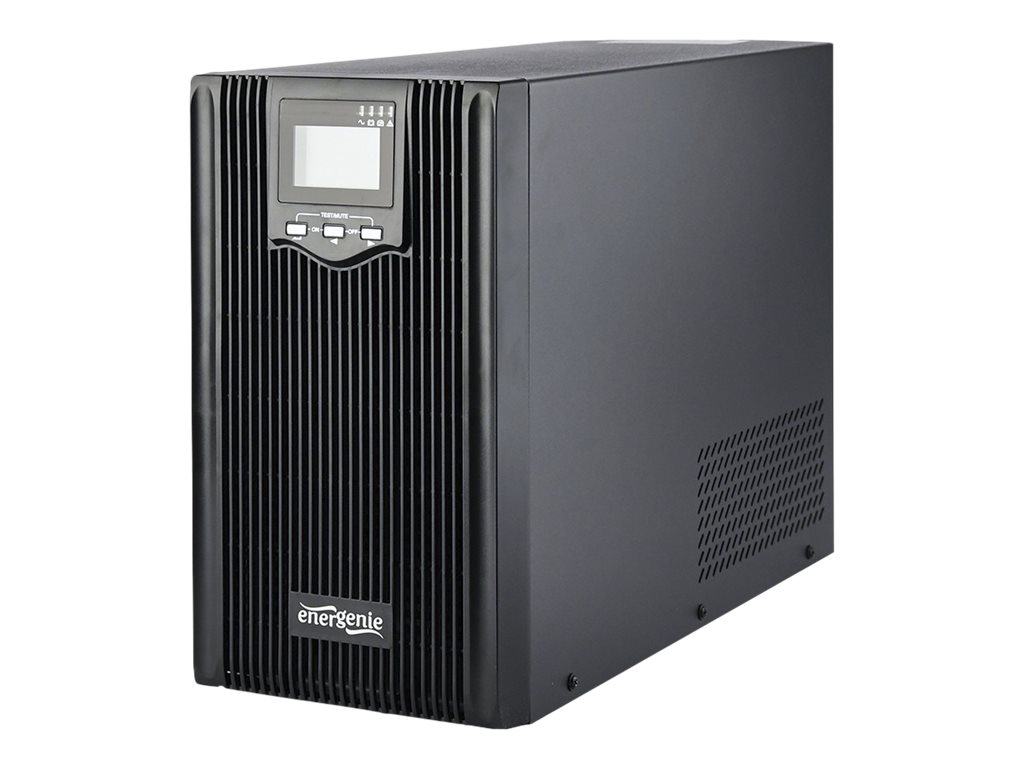

Energenie by Gembird line-interactive UPS 3000VA/2400W, pure sine, 3Schuko 3IEC 230V out USB-BF LCD display

Hind ei sisalda käibemaksu.
Toode on tellitav.

Tehnilised andmed

Type: line interactive with pure sine wave
Waveform: sine, 5% distortion at linear load, PF > 0.8
Input: AC 220V±25%, 50Hz/60Hz ±10%
Output: AC 220V±10%, 50Hz/60Hz ±1% (AC 220V±10% at inverter mode)
Switching time: up to 10 ms typically
Backup time: 10...30 mins (depends on the load)
Battery: 151 x 65 x 94 mm, sealed lead-acid 12V/9Ah, F2 terminals x 4 pcs
Charge time: up to 90% after 6-8 hours
Sockets: C14 input, 6 outputs (3x IEC C13, 3x Schuko)
Interface communication: USB + RJ45; optional slots: dry contacts / SNMP
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Power: 3000VA (2400 W)
Charging current: 1 A (default)
Noise: < 50 dB at 1 m distance
Dimensions: 190 x 467 x 335 mm
Product weight: 28.1 kg
"Cold-start" function

Type: line interactive with pure sine wave

Waveform: sine, 5% distortion at linear load, PF > 0.8

Input: AC 220V±25%, 50Hz/60Hz ±10%

Output: AC 220V±10%, 50Hz/60Hz ±1% (AC 220V±10% at inverter mode)

Switching time: up to 10 ms typically

Backup time: 10...30 mins (depends on the load)

Battery: 151 x 65 x 94 mm, sealed lead-acid 12V/9Ah, F2 terminals x 4 pcs

Charge time: up to 90% after 6-8 hours

Sockets: C14 input, 6 outputs (3x IEC C13, 3x Schuko)

Interface communication: USB + RJ45; optional slots: dry contacts / SNMP

Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing

Power: 3000VA (2400 W)

Charging current: 1 A (default)

Noise: < 50 dB at 1 m distance

Dimensions: 190 x 467 x 335 mm

Product weight: 28.1 kg

"Cold-start" function

System Requirements
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
