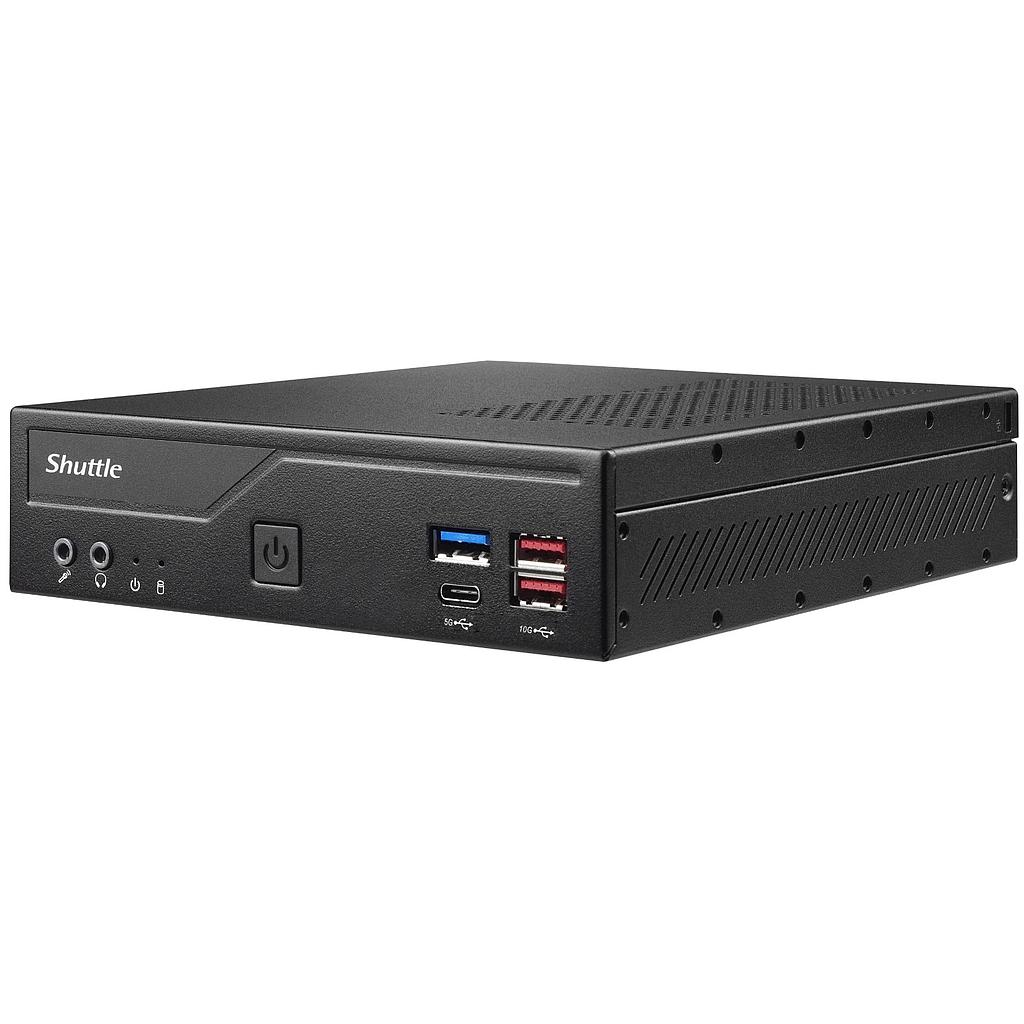

Robust 1.3-liter slim PC supports 12th and 13th generation Intel Core processors and four UHD displays.

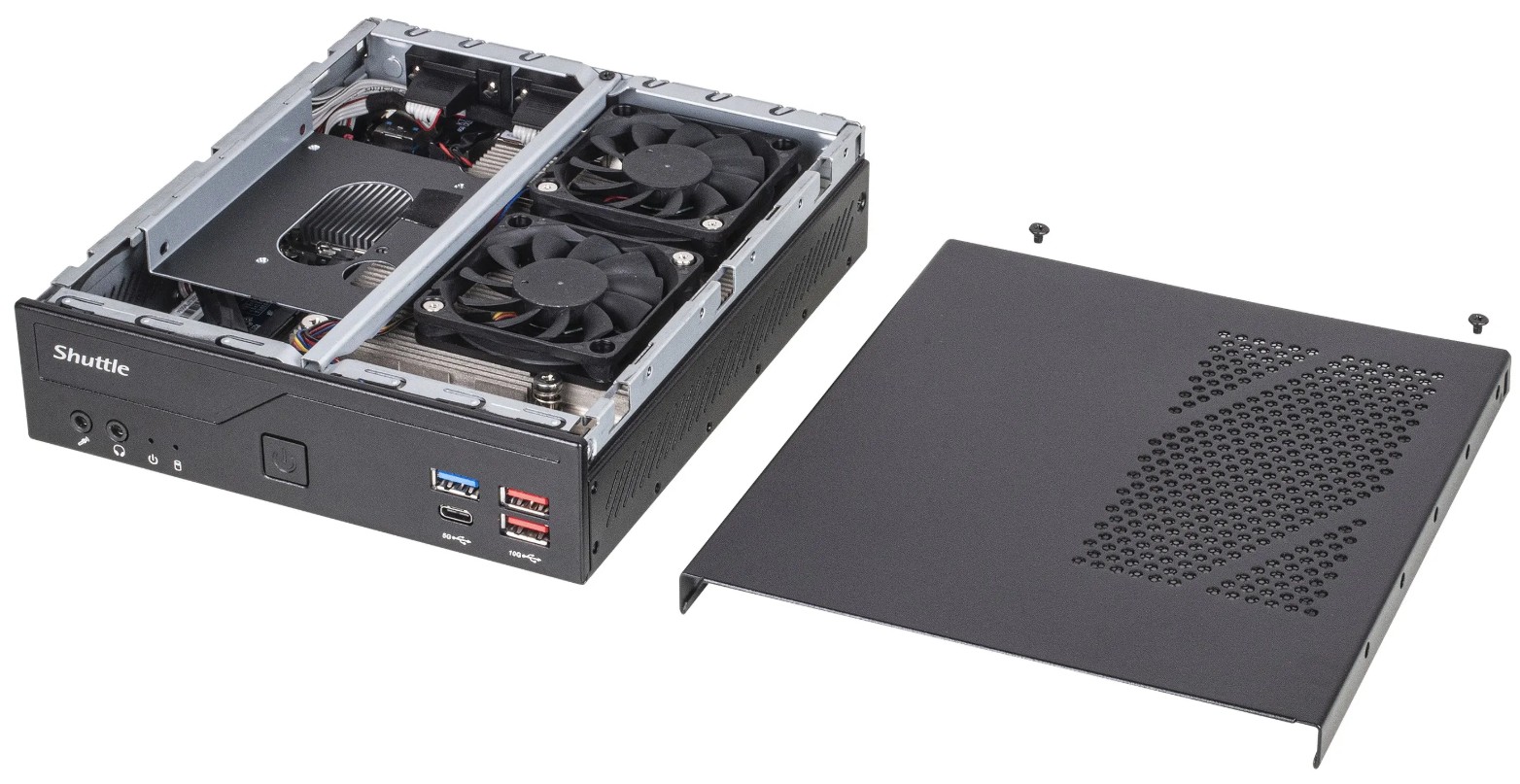

The Shuttle XPC slim barebone DH670V2 with H670 chipset brings the performance of Intel's 12th and 13th generation*) Core desktop processors (codenames "Alder Lake-S" and "Raptor Lake-S") with LGA1700 socket to a compact 1.3-liter form factor. It supports the simultaneous operation of four Ultra HD displays via 2x HDMI and 2x DisplayPort. Dual Intel 2.5G networking, four USB 3.2 Gen 2 ports, and COM ports are also included. Its slim metal chassis with VESA mount, diverse connectivity options, and reliable operation at ambient temperatures up to 50°C make the DH670V2 ideal for professional applications such as digital signage, POS, POI, gaming machines, office environments, healthcare, and industrial settings.
1.35 l large PC Black
Intel
2 SO-DIMM RAM slots, maximum: 64 GB DDR4-SDRAM
HDD & SSD 2.5", M.2
Built-in graphics adapter
Ethernet/LAN
processor
Processor manufacturer
Intel
memory
Supported memory speed
2133, 2400, 2666, 2933, 3200 MHz
Storage channels
Two-channel
Supported memory
DDR4 SDRAM
Storage medium
supported storage drive sizes
2.5,M.2
Storage drive interface
PCI Express, Serial ATA III
Number of supported storage drives
2
Supported storage drives
HDD & SSD
graphic
Graphics card family
Intel
Built-in graphics adapter
Yes

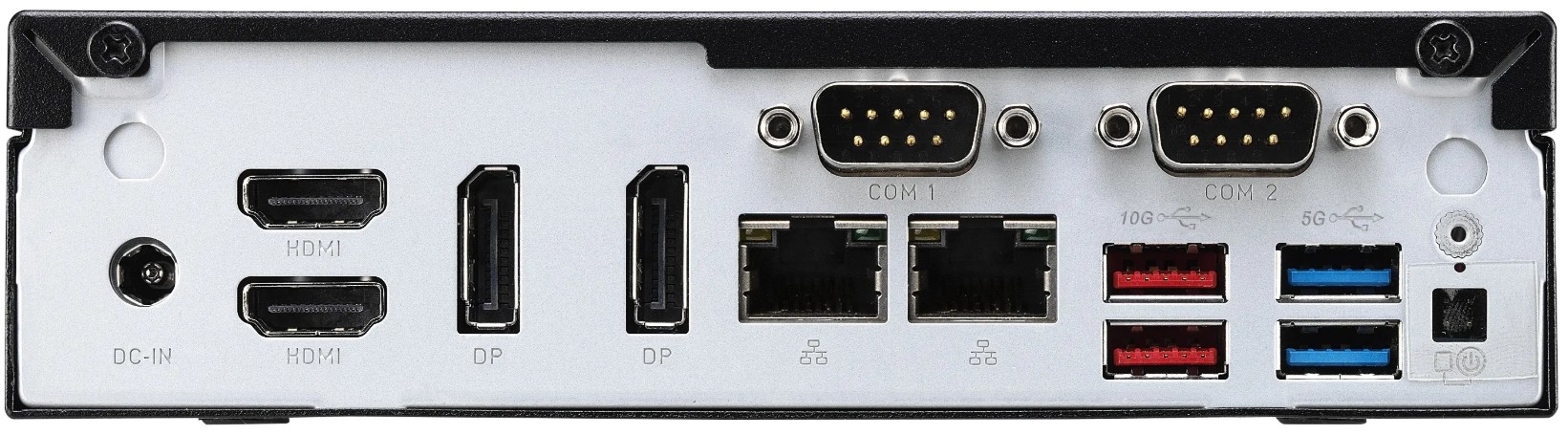

Connections and interfaces
Number of Ethernet LAN ports (RJ-45)
2
Number of DisplayPort connections
2
Direct current (DC) connection
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports
1
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports
3
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports
4
design
LED displays
HDD, performance
Product type
Mini PC Barebone
Panel mounting interface
100 x 75 mm
Slot-type cable lock
Kensington
Housing type
1.35 l large PC
Services
Number of supported processors
1
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes

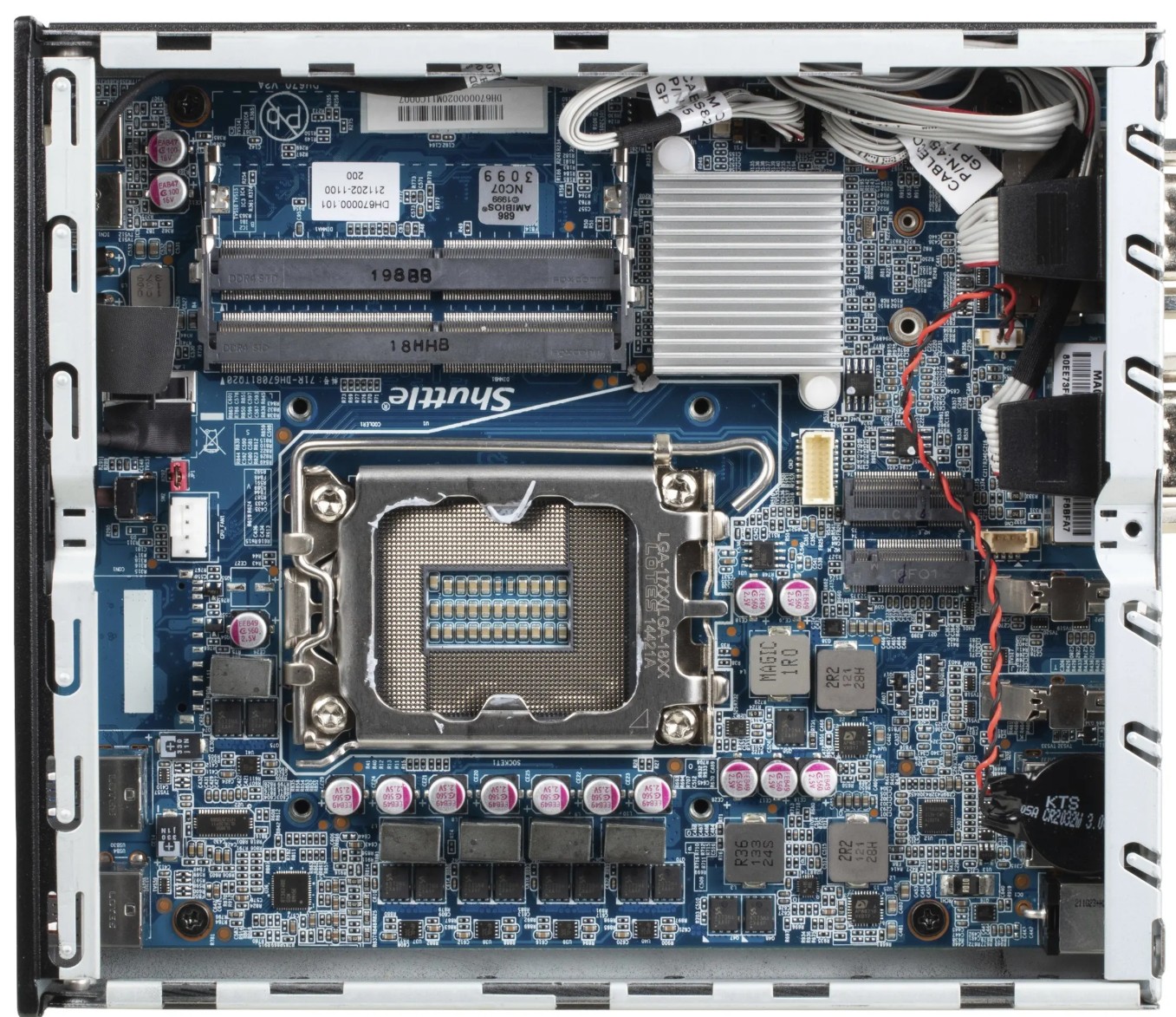

Motherboard chipset
Intel H670
Technical details
Certificates of conformity
BSMI, CB, CE, ETL, Federal Communications Commission (FCC), RoHS
software
Installed operating system
No
Supported Linux operating systems
Yes
Supports Windows operating systems
Windows 10, Windows 11
sustainability
Sustainability compliance
Yes
Sustainability certificates
ENERGY STAR, ErP
Logistics data
Commodity tariff number (HS)
84733080
energy
AC adapter output current
6.32 A
Power supply type
External AC adapter
AC input voltage
100 - 240 V
Power supply output voltage
19 V
Number of power supply units
1
AC input frequency
50/60 Hz
Operating conditions
Relative humidity during operation
10 - 90%
Operating temperature
0 - 50 °C
